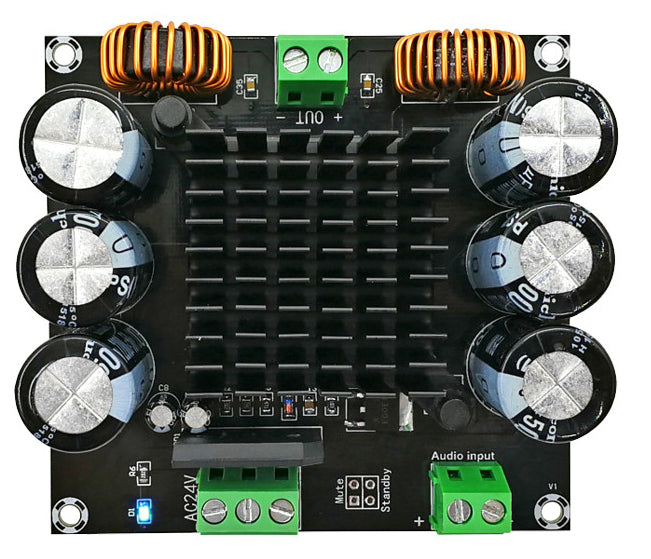

TDA8954TH 420W Mono Amplifier Board

$29.95
SKU 9002810

Do you need huge audio power to drive concert speakers? Then order the TDA8954TH 420W Mono Amplifier Boards from PMD Way. Based on the NXP TDA8954TH class-D amplifier IC in bridge-tied load, this monolith can pump 420W into an 8 Ohm load.

Furthermore the TDA8954TH combines the benefits of Class D efficiency (≈93 % into a 4 Ohm load) with audiophile sound quality comparable to that associated with Class AB amplification.

Please note that you'll need to power this with a toroidal transformer such as a 25+25V 300VA unit. Do not use speakers rated less than 200W, otherwise they will just go BANG!

The board is fully assembled, and uses high-quality components such as Nichicon capacitors for longevity. The massive heatsink is pre-fitted to the board.

Specifications:

  • Low noise
  • Smooth pop noise–free start-up and switch off
  • Fixed frequency internal or external clock
  • High efficiency (≈93 %
  • Zero dead time switching
  • Low quiescent current
  • Advanced protection strategy: voltage protection and output current limiting
  • Thermal FoldBack (TFB) with disable functionality
  • Fixed gain of 36 dB
  • Fully short–circuit proof across load
  • board measures 82 x 72 x 37mm
  • requires 25+25V 300VA toroidal transformer
