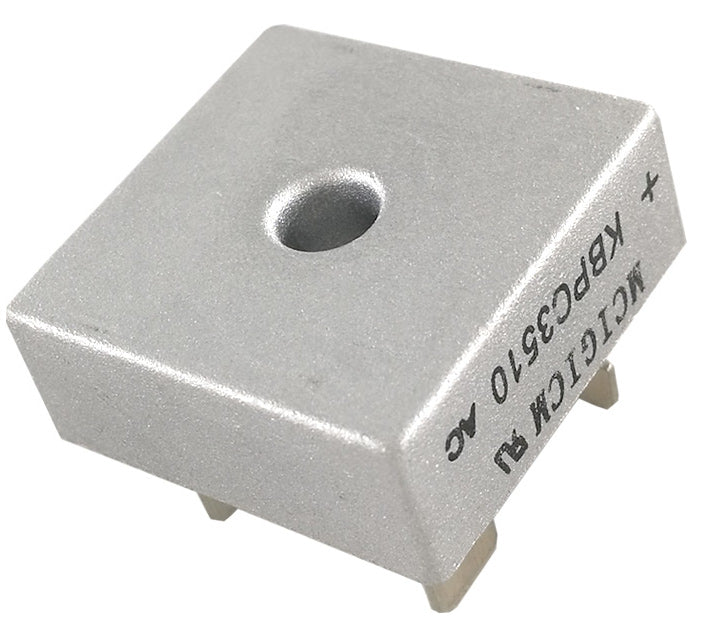

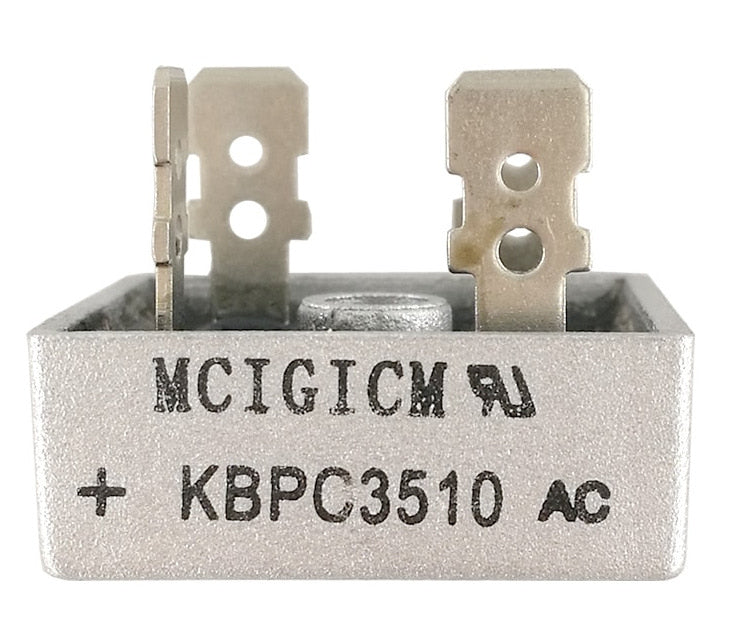

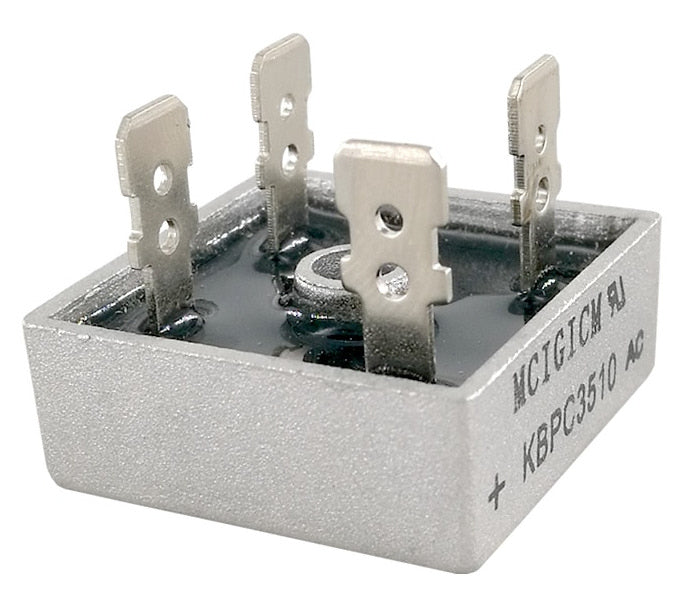

1000V 35A Diode Bridge Rectifier KBPC3510 - 5 Pack
$9.95
SKU 7540472
Now available from PMD Way are these KBPC3510 1000V 35A Diode Bridge Rectifiersin packs of five.
Specifications:
- Maximum repetitive peak reverse voltage - 1000V
- Maximum RMS voltage - 700V
- Maximum DC blocking voltage - 1000V
- Maximum average forward recitfied current (@ 55 degrees Celsius) - 35A
- Peak forward surge current (8.3ms single half sinewave superimposed on rated load) - 400A
- Maximum instantaneous forward voltage (at 17.5A DC forward current) - 1.1V
- Maximum DC reverse current (25 degrees C) - 10uA; (at rated DC blocking voltage) - 500uA
Free delivery, worldwide.

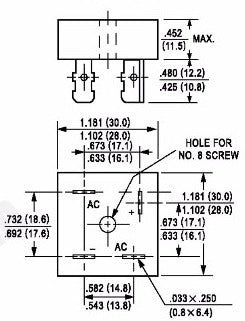

Drawing:
