UPS Battery HAT for Raspberry Pi

SKU 10591119

Give your Raspberry Pi an uninterruptable power supply with this UPS HAT from PMD Way.

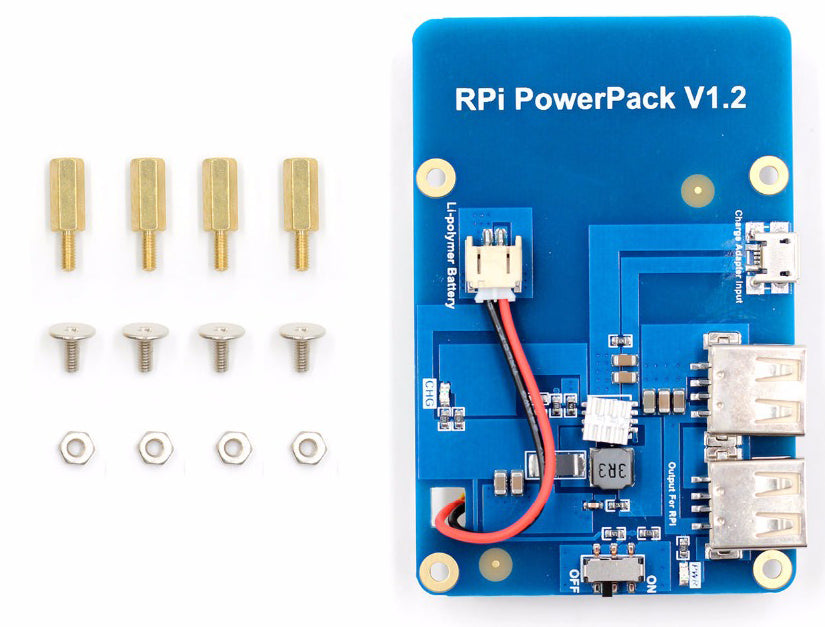

Simply bolt the HAT to your Pi with the included bolts, plug in your LiPo battery and connect power to charge the battery and power the Pi.

If the AC power stops, or you need to take your Pi on the road - the LiPo keeps things running.

We can't tell you exactly how long the battery will last, as this depends on what's connected to your Pi. However considering the usual maximum draw for a Pi is 2.5A - you should get at least 50 minutes from a full charge of a 2500 mAh battery.

You need to connect the power USB cable to the HAT - not the Pi.

If you don't have a battery, click here to see our range


  • Maximum discharge current: 1.8A
  • No-load output voltage: 5.1V ± 0.1V
  • Standard charging current/voltage: 1.0A/5.0V
  • Cut-off voltage of fully charging the Li-ion battery: 4.18V ~ 4.2V
