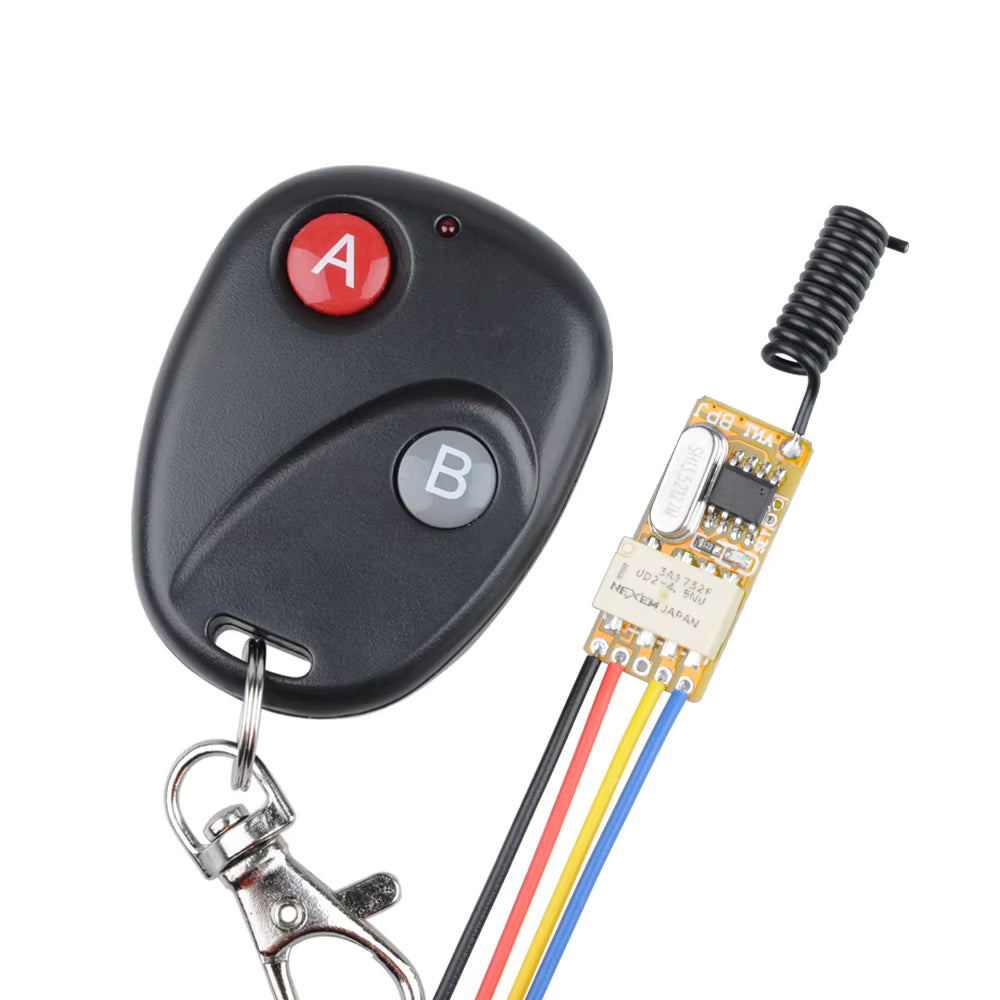

Compact Low Power Wireless Remote Switch
Now available from PMD Way is this compact low-power wireless remote switch. This is ideal for switching very low power devices and when you only have a supply voltage of 3~12V DC.
- Switch board requires 3~12V DC
- Switch board load (the thing you're controlling) can be between 1 and 24V DC up to 700 mA
- Switch board measures 24 x 11 x 8mm

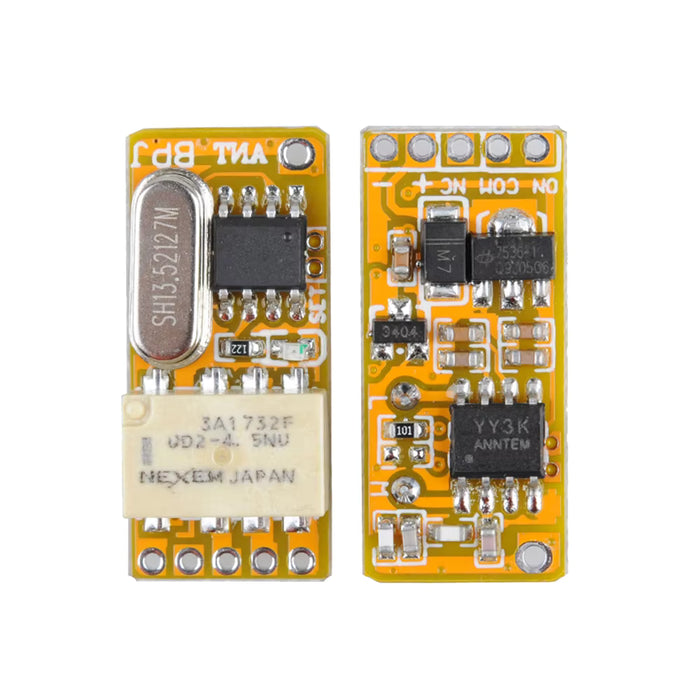

You can change the switch between latching (press on, press off...) to momentary (hold down to keep switch on) by bridging the two solder pads marked with the white dots in the image below:
Use the options menu to select your required operating frequency of 315 or 433 MHz.
