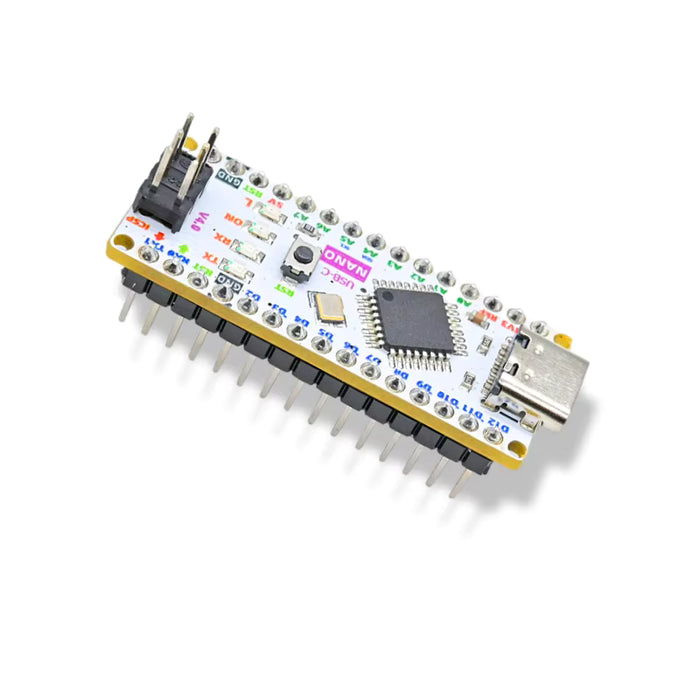

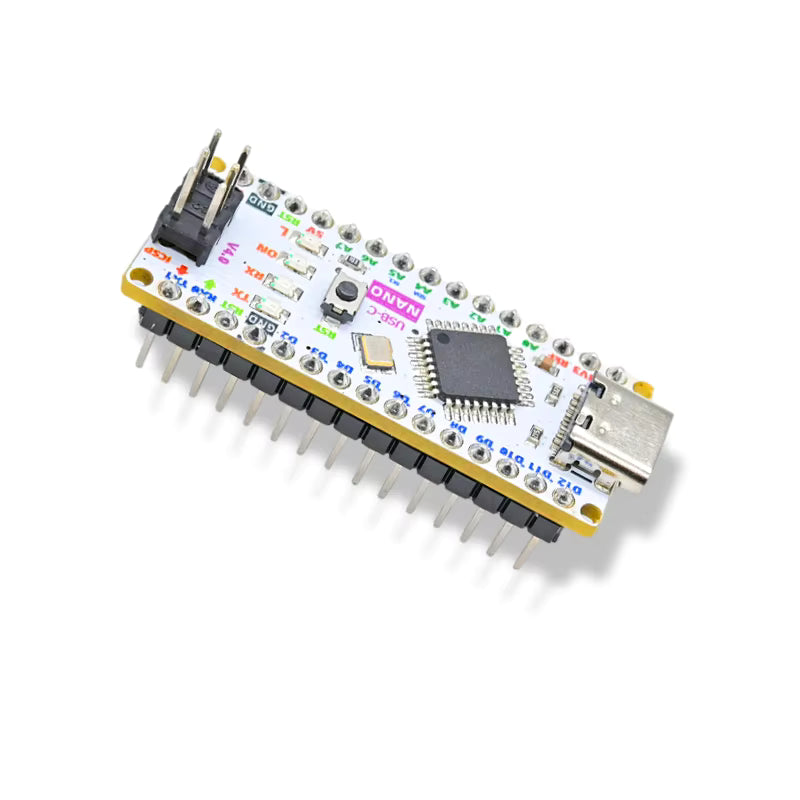

Compact Arduino Nano-compatible with USB C

If you need a very compact, yet usable Arduino-compatible board then our compact Arduino Nano-compatible board with USB C fits the bill.

Just like any other Arduino Nano-compatible, these use the ATmega328-AU microcontroller. They have the common CH340G USB interface, and unlike most others have a USB C socket.

Please note - these boards do not support analog pins A6 and A7. They are shown on the PCB however those holes are not connected to anything.

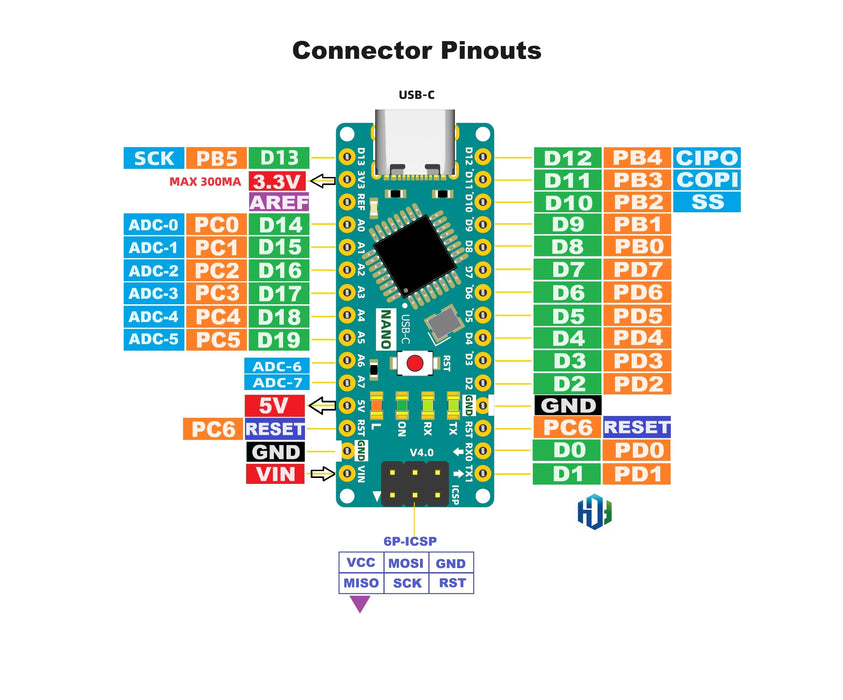

Consider the pinouts below:

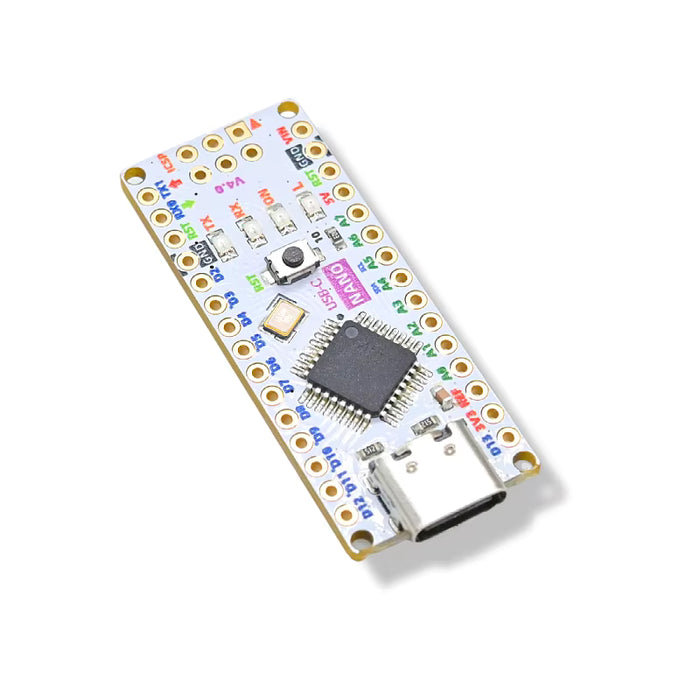

However these boards are a little smaller, and have all the components on one side of the PCB. And by having castellated holes along each side of the PCB - you can mount these flush with your own custom circuit boards to save time and board real estate. If doing so, don't forget to allow space on one side of your own PCB to allow the USB C socket to protrude.

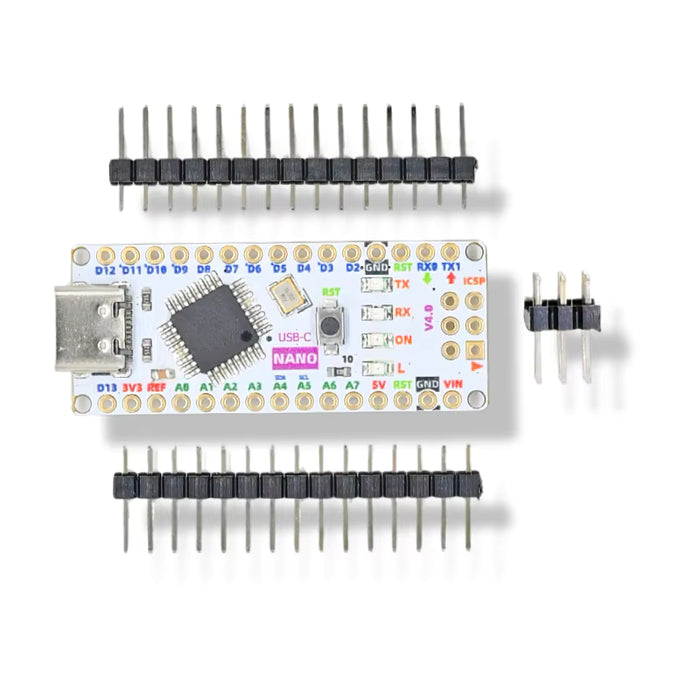

Naturally you can fit your own inline header pins (not included) to solder into the board to allow connection with jumper wires, breadboards and so on. A USB C cable is not included - you may already have one from a phone or other device. Click here if you do need one.

See the tutorial for more information.

If you need bulk quantities, we also offer these in packs of ten at a discounted price.

Don't forget to check out our full range of Arduino Nano-compatible boards if this doesn't meet your needs. If you can't find what you want, or have any questions - please email support@pmdway.com.
