ESP8266 or ESP32 Burn and Test Board
$12.95
SKU 99923221
If you need to upload firmware into ESP32 modules before soldering into a final product, then this burn and test board from PMD Way is for you.
Once connected to your PC via USB, you can upload firmware with one touch - saving you messing about wiring temporary programming into your final product.

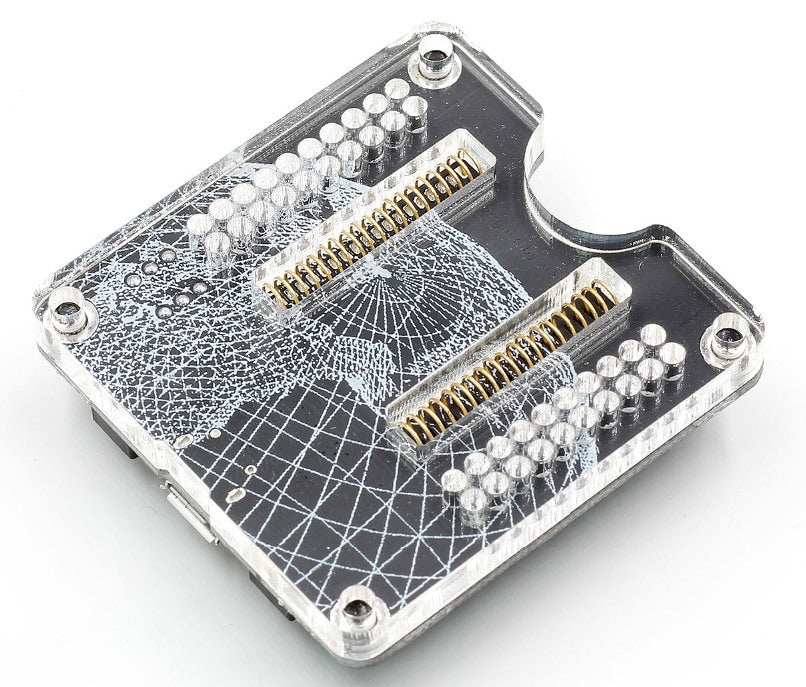

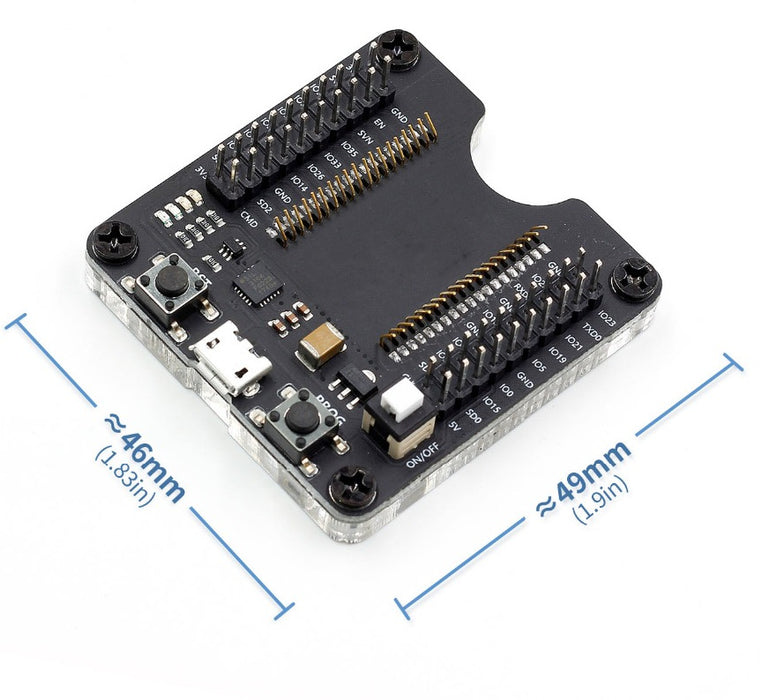

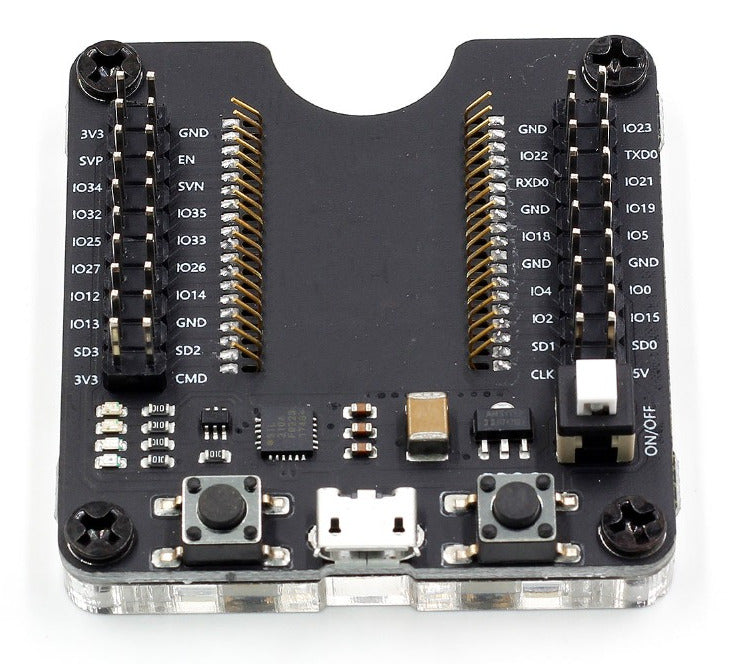

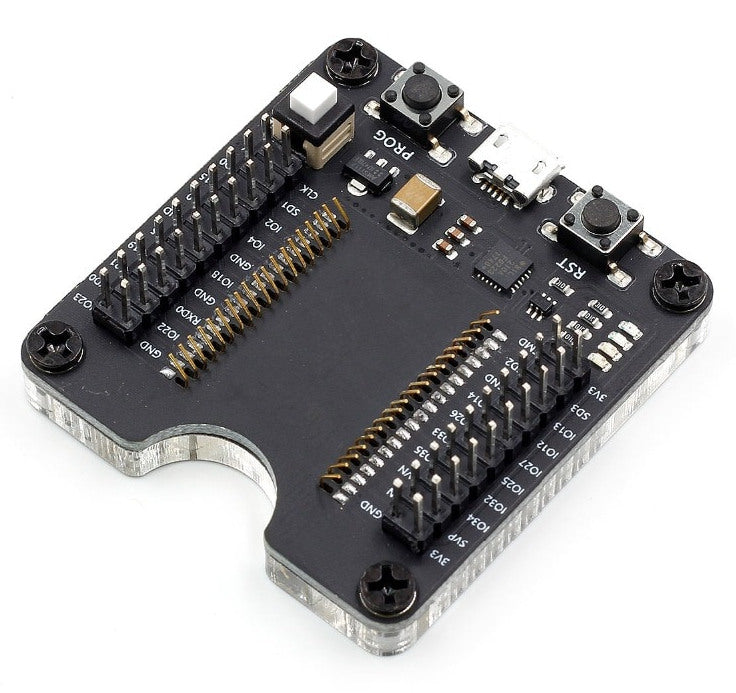

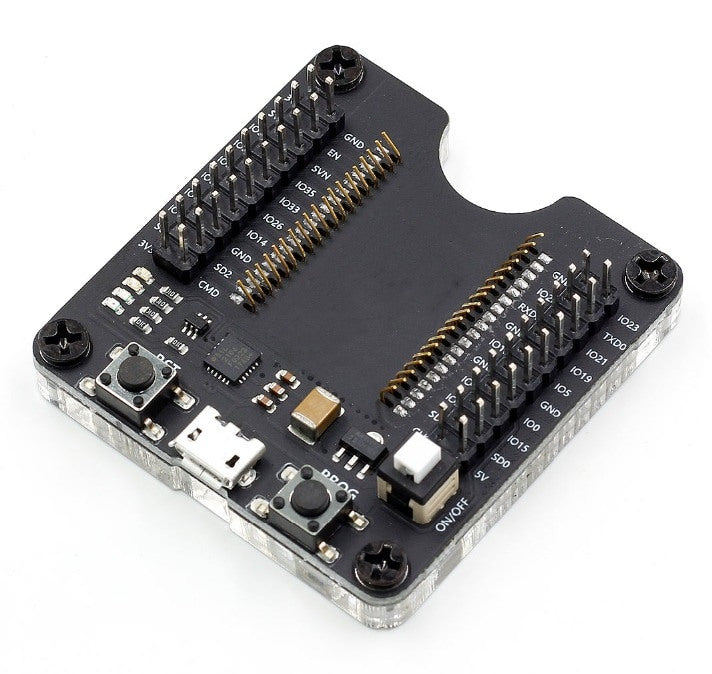

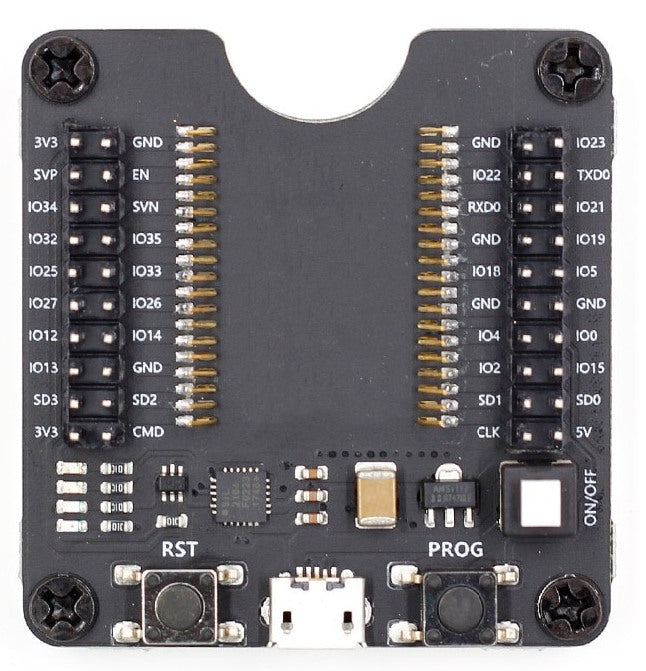

The ESP32 or ESP8266 simply drops in over the pins and is held in with friction. All the pins are brought out to rows of 2.54mm inline header pins for easy access.
The test board is fully assembled, and the USB interface is via a CP2104 USB to UART IC. Click here for USB drivers if required.
Select your required target board using the options menu:
- ESP8266
- ESP32-WROOM-32
- ESP32-WROVER
Free delivery, worldwide.
