XL4015 Adjustable DC DC Buck Converter with Display
If you're in a hurry to add a customisable DC step-down regulator to your project - this XL4015 DC DC Buck Converter from PMD Way is for you.

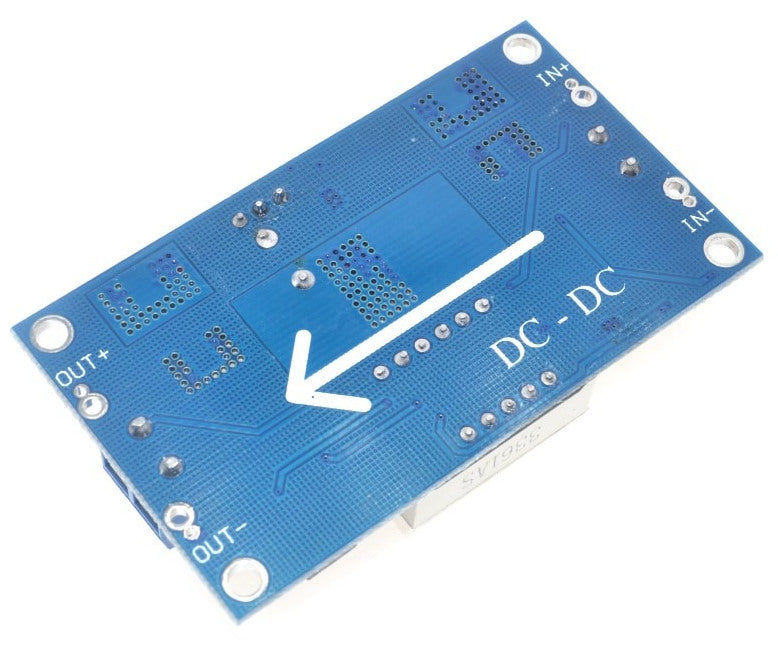

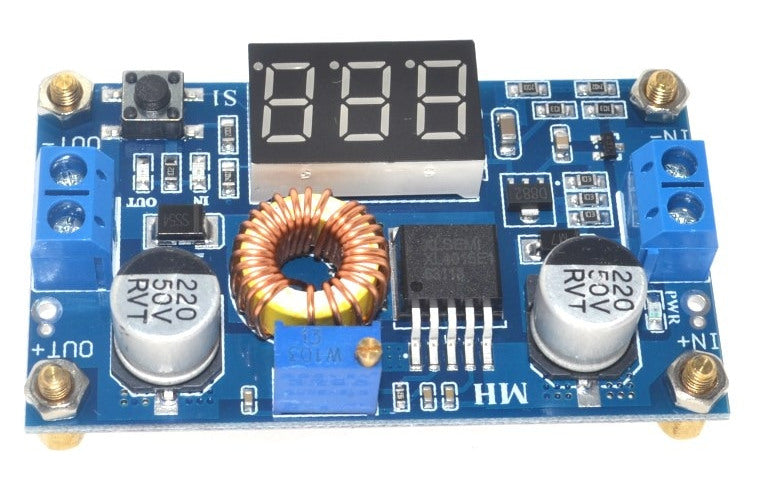

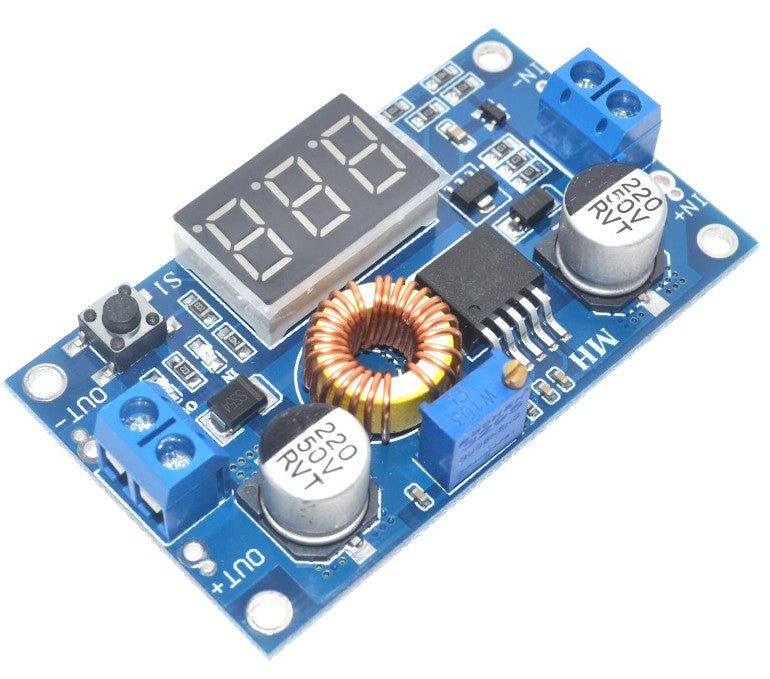

Just connect your input voltage to the left-hand side and your output is on the right. The output voltage is adjusted with the vertical trimpot. You can monitor input and output voltage with the digital LED display.

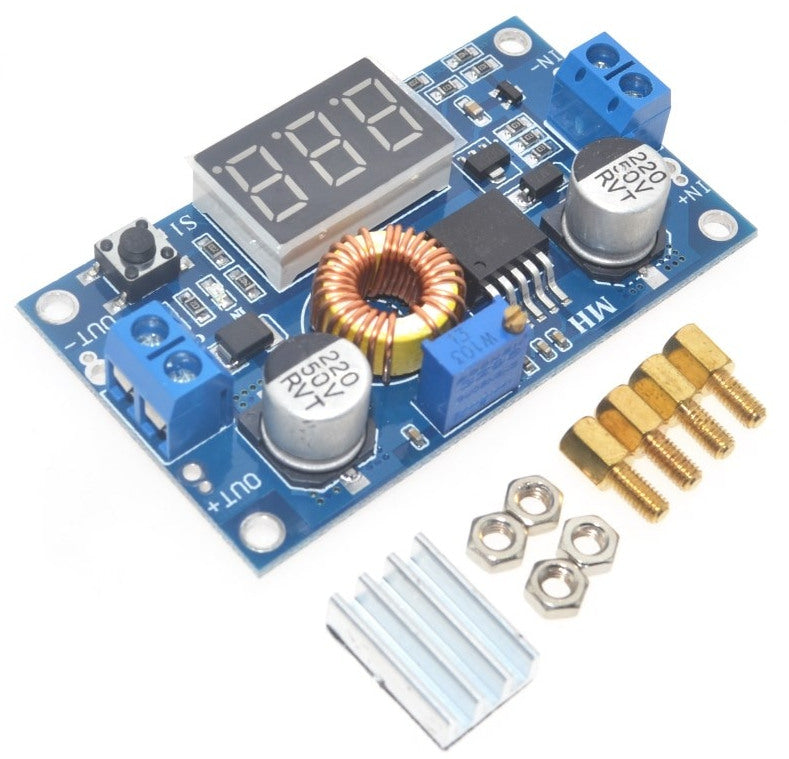

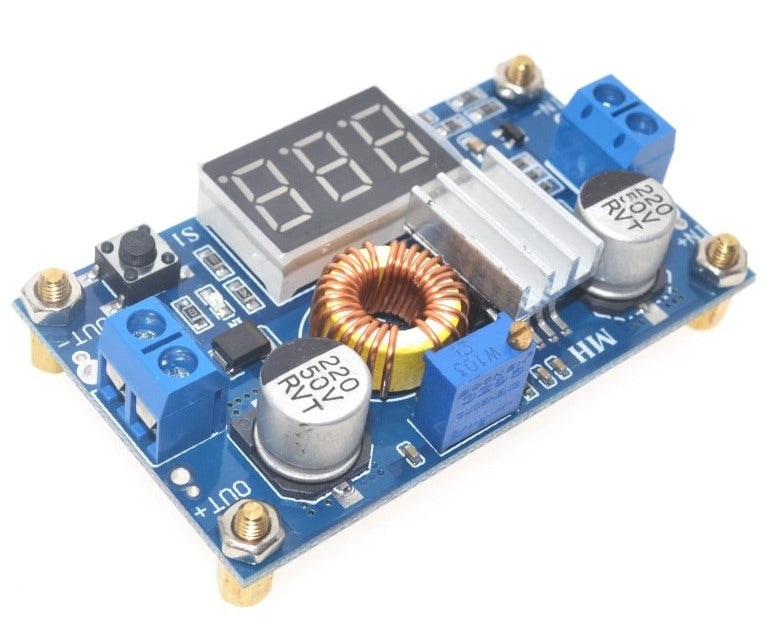

Mounting hardware and heatsink are included as shown.
Specifications:
- Input voltage: DC 4.0 ~ 38V
- Output voltage: DC 1.25V ~ 36V continuously adjustable (the input voltage must be higher than the output voltage by 1.5V)
- Output current: max 5A, we recommend you keep it under 4.5A.
- Output power: up to 75W, add heatsink over 50W
- Voltmeter resolution: ± 0.05V
- Voltmeter range: 0 ~ 40V (please ensure that the input voltage is 4.5V or more)
- Conversion efficiency: up to 96%
- Load regulation: S (I) ≤ 0.8%
- Voltage Regulation: S (u) ≤ 0.8%
- With overheat protection and short circuit protection
- Dimensions: 6.6 x 3.9 x 1.8cm
Technical details:
- Download XL4015 datasheet (pdf)
Don't forget to check out our full range of DC-DC converters if this doesn't meet your needs. And as always, all orders receive free delivery.
