Build an animated launchpad for LEGO Saturn V model 21309

A fully-animated, Arduino-powered launchpad for the LEGO Saturn V model rocket

from arduino.cc

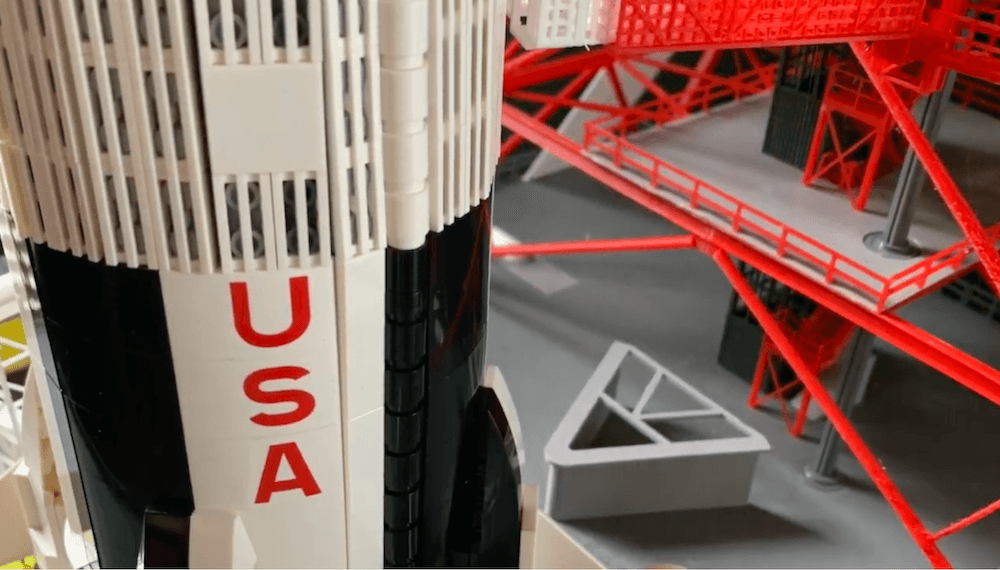

Approximately 18 months ago, Mark Howe embarked on a journey to build an animatronic launchpad and gantry for a LEGO Saturn V model rocket. After approximately 1,000 hours of CAD work, hundreds of hours of 3D printing, and a major redesign, he’s created a truly impressive setup that resembles one of NASA’s.

Howe’s rocket and structure stand several feet tall, with a crane, sway bar, crew walkway, gantry arms, and service arms that move out of the way using servos. Everything is controlled by an Arduino Uno, along with an MP3 shield to play the Apollo 11 countdown audio.



Once ready for liftoff, the rocket rises via a trio of stepper motor-driven linear actuators, simulating the real thing with a fiery plume of NeoPixels underneath.



More details on this dynamic diorama can be found on Howe’s project page.

If you're interested in making your own version, PMD Way has you covered with a huge range of parts including Arduino Uno compatible boards, MP3 shields, NeoPixel LEDssolderless breadboards, and more.
