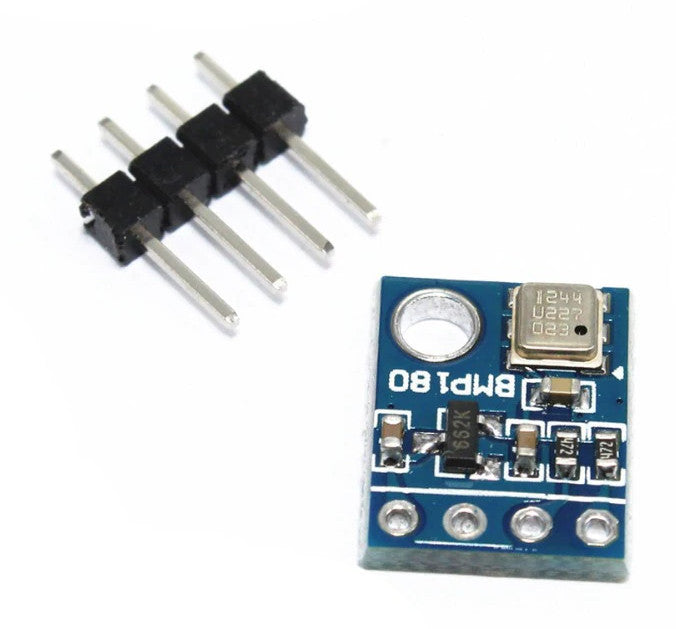

BMP180 Barometric Pressure/Temperature/Altitude Sensor Board

$4.95
SKU 18000001

Easily measure barometric pressure, temperature and altitude with the Bosch BMP180 high-precision, low-power Barometric Pressure/Temperature/Altitude Sensor Board from PMD Way.

The BMP180 offers a pressure measuring range of 300 to 1100 hPa with an accuracy down to 0.02 hPa in advanced resolution mode.

The BMP180 is based on piezo-resistive technology for high accuracy, ruggedness and long term stability. These come factory-calibrated, with the calibration coefficients already stored in ROM. Inline header pins shown are included but not soldered.

This is a 3.3V board, please use a level converter for 5V operation.

More information:

Specifications:

  • Pressure sensing range: 300-1100 hPa (9000m to -500m above sea level)
  • Up to 0.03hPa / 0.25m resolution
  • -40 to +85°C operational range, +-2°C temperature accuracy
  • This board/chip uses I2C 7-bit address 0x77.
  • Weight: 1.18g
  • Size: 21mm x 18mm
