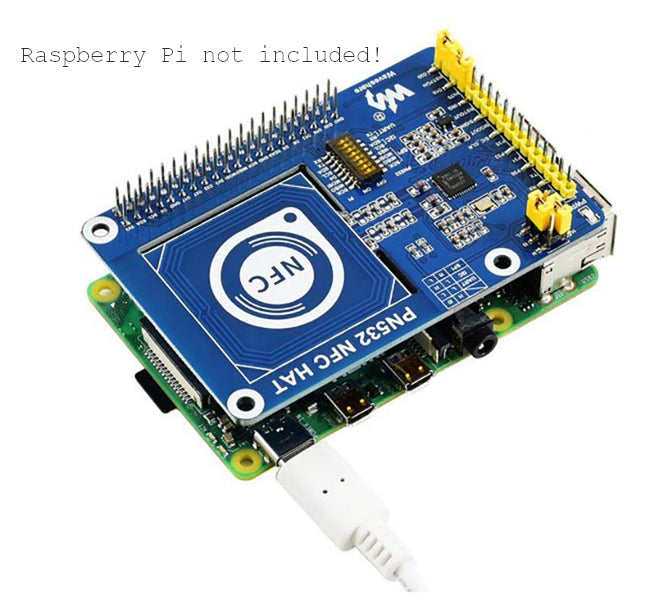

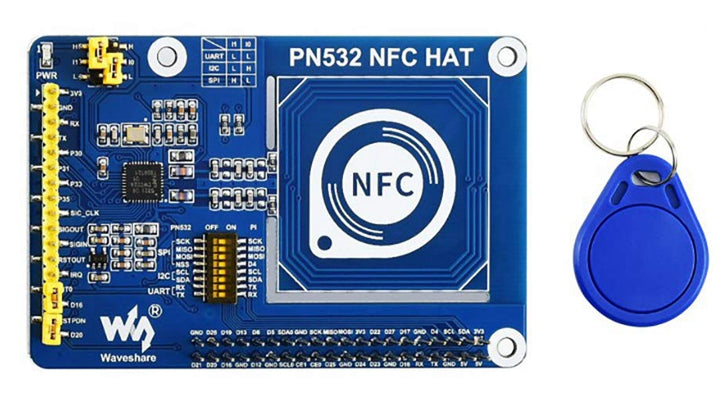

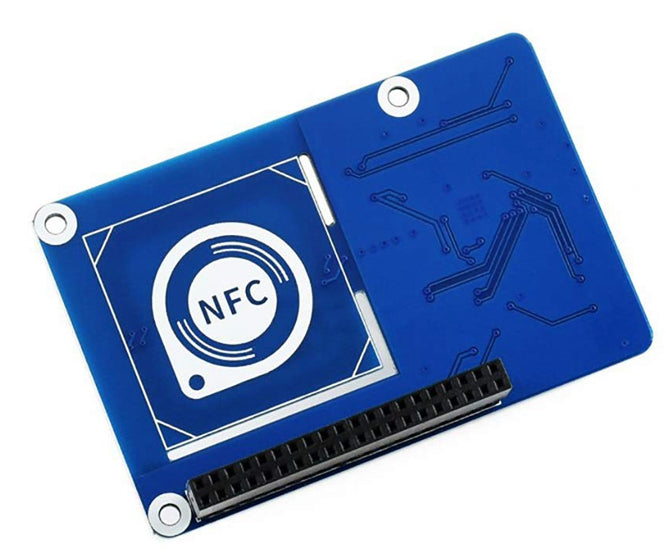

PN532 NFC HAT for Raspberry Pi

Save time with the PN532 NFC HAT for Raspberry Pi from PMD Way. It's easy to interface with your Pi and supports three communication interfaces: I2C, SPI, and UART.

NFC (Near Field Communication) is a wireless technology allows contactless point-to-point data communication between devices within a short distance of 10 cm. It is widely used in applications such as access control system, smart tickets, meal card, etc.

Specifications:

• NFC controller: PN532
• Operating voltage: 3.3V/5V
• Operating frequency: 13.56MHz
• Communication interfaces: I2C, SPI, UART (default)
• Default baudrate: 115200 bps
• Operating modes:
• reader/writing mode supporting ISO/IEC 14443A / MIFARE scheme
• reader/writing mode supporting FeliCa scheme
• reader/writing mode supporting ISO/IEC 14443B scheme
• card operation mode supporting ISO 14443A / MIFARE scheme
• card operation mode supporting FeliCa scheme
• ISO/IEC18092, ECM340 point-to-point

More information:

Getting started guide and code
