0603 SMD 8P4R Resistor Network 0 to 1K0 - Pack of 200
$9.95
SKU 696:201215958
Now available from PMD Way are 0603 SMD surface mount resistor networks in packs of 200.
Select your required value between 0 and 1K0 from the resistance menu.
Please click here for values between 1K0 and 910K.
Networks are in the 8P4R format, so that's four resistors per network. Tolerance is 5%, and rated at 1/16 watt.

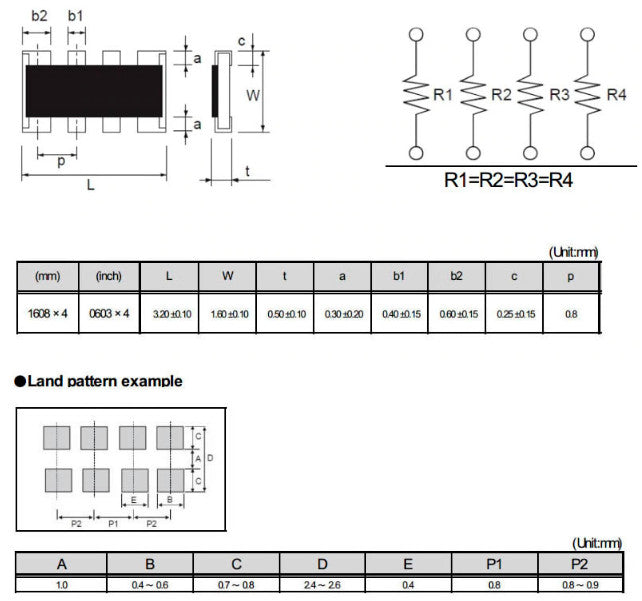

Drawings:
