0603 SMD 8P4R Resistor Network 1K0 to 910K - Pack of 200
$9.95
SKU 696:203121885
Now available from PMD Way are 0603 SMD surface mount resistor networks in packs of 200. Free delivery, worldwide.
Select your required value between 1K0 and 910K0 from the resistance menu.
Please click here for values between 0 and 1K0.
Networks are in the 8P4R format, so that's four resistors per network. Tolerance is 5%, and rated at 1/16 watt.

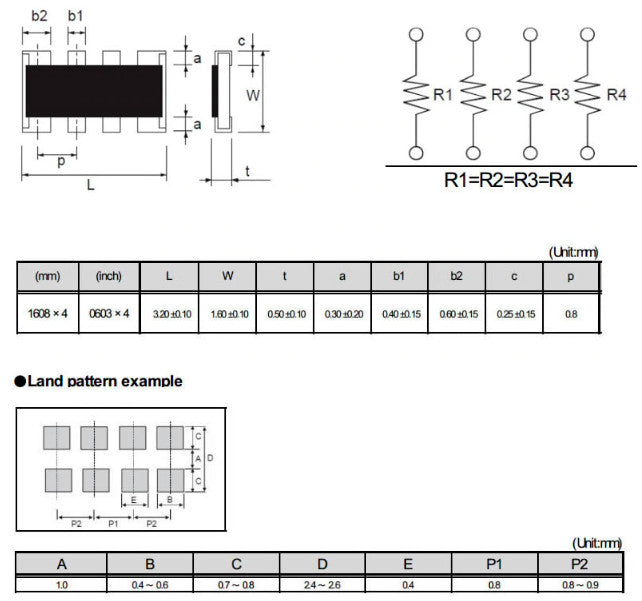

Drawings:
