NodeMCU - Lua based ESP8266 Development Board with Motor Shield from PMD Way with free delivery worldwide
NodeMCU - Lua based ESP8266 Development Board with Motor Shield from PMD Way with free delivery worldwide

NodeMCU - Lua based ESP8266 Development Board with Motor Shield

$17.95
SKU 3830826201

Now available from PMD Way is the ESP8266 NodeMCU development board - a true plug-and-play solution for inexpensive projects using WiFi. The module arrives pre-flashed with NodeMCU firmware so they're ready to go - just install your USB driver (below).

Or you can now develop for your NodeMCU board with the Arduino IDE - so now you have an Arduino-compatible with WiFi for under $10!

This NodeMCU development board contains a full ESP8266 WiFi module with all the GPIO broken out, a full USB-serial interface, and a power supply all on the one breadboard-friendly package. The NodeMCU is an open-source project and you can find all the design files and so on from their github page.

This board is pre-flashed with NodeMCU - a Lua-based firmware for the ESP8266 which allows easy control via a neat scripting language - Lua - so you're ready to go in just a few minutes.

Furthermore this item includes the motor shield that can be used to drive two DC motors with an operating voltage of between 4~36V DC. Naturally you need to connect external power for those motors.

The shield also brings out all the I/O pins to 2.54mm pitch inline header pins for easy access.

Micro USB cable not included.

Using with Arduino? Click here

Useful links:

Installing the USB drivers

This board uses a Silicon Labs CP2102 USB to serial converter IC. You can download USB drivers from here. Once installed - in Windows, the device will appear under Ports (COM & LPT) --> Silicon Labs CP210x USB to UART Bridge (COMx) in Device Manager.

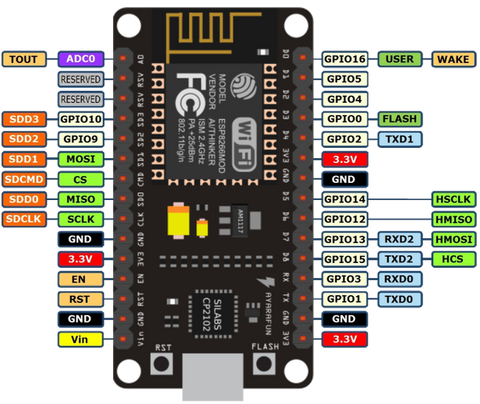

Pinouts:

NodeMCU - Lua based ESP8266 Development Board capable of Arduino WiFi in packs of ten from PMD Way with free delivery worldwide
