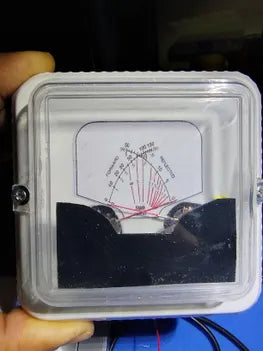

Build an SWR Meter

An SWR (Standing Wave Ratio) meter is an essential tool for anyone working with radio frequency systems, antennas, or transmission lines. Whether you're a ham radio enthusiast, a CB radio operator, or someone interested in RF engineering, understanding and measuring SWR can make a significant difference in your setup's performance and efficiency.

The good news? You don't need to spend a fortune on professional-grade equipment. A clever DIY approach using two inexpensive multimeters can give you a functional SWR meter that rivals commercial options in many situations.

What is SWR and Why Does It Matter?

Standing Wave Ratio measures how well your antenna system is matched to your transmitter. When impedance is mismatched between your transmission line and antenna, energy reflects back toward the source rather than radiating outward. A lower SWR indicates better efficiency and power transfer. Most operators aim for an SWR of 1.5:1 or lower, with 1:1 being the theoretical ideal.

High SWR can lead to wasted power, reduced range, and potential damage to your transmitter over time. Regular SWR measurements help you optimize your antenna placement, tuning, and overall system performance.

The Budget-Friendly Solution

Building an SWR meter from two basic multimeters is a practical project that demonstrates fundamental RF principles. The design uses the meters to measure forward and reflected power in your transmission line, allowing you to calculate SWR mathematically.

This approach requires minimal components beyond the multimeters themselves—primarily some resistors, a directional coupler circuit, and basic wiring. The beauty of this method is that it's accessible to hobbyists with varying skill levels and doesn't require specialized test equipment to construct.

Getting Started with Your Build

Before diving into construction, gather your materials and familiarize yourself with the circuit design. Understanding how a directional coupler samples forward and reflected waves is key to getting accurate readings. Take time to review the detailed instructions and diagrams available in the original project documentation.

Careful assembly and calibration are crucial. Once built and properly calibrated against known standards, your homemade SWR meter can provide reliable measurements for tuning and troubleshooting your antenna system.

Whether you're optimizing a ham radio setup, fine-tuning a CB antenna, or exploring RF engineering as a hobby, building your own SWR meter is a rewarding project that combines practical utility with hands-on learning.
