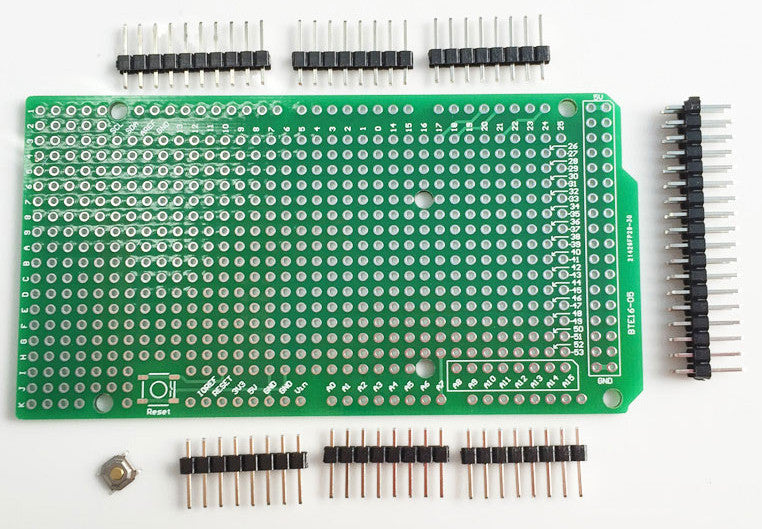

Protoshield Kit for Arduino Mega R3
$9.95
SKU 845736
Need to add some circuitry to your Arduino Mega-based project? Then order this great value Protoshield Kit for Arduino Mega R3 from PMD Way.
Note that this shield uses inline header pins for stacking, if you need full stacking headers please order an assembled shield.
Click here for value packs of ten

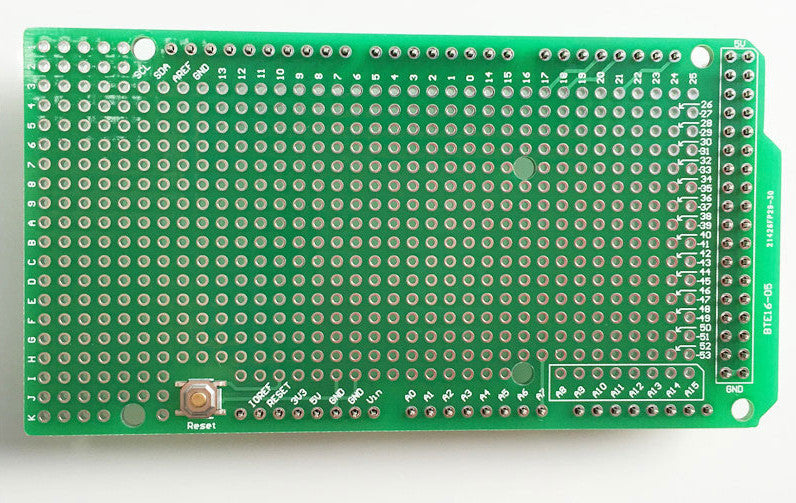

Once assembled you have a neat and simple protoshield that meets the R3 standard.
- PCB Dimension: 101.6mm x 53.34mm / 4" x 2.1"
- PCB Thickness: 1.6mm
- Material: high quality FR-4 glass fiber PCB.
- All holes are plated through
- Dual copper layers.
- Pads grid (pitch) 2.54mm / 0.1", hole diameter 0.9mm.
