ARM Cortex M0 mbed DevelopmentBoard with W7500 Ethernet and microSD
$36.95
SKU 78000041
Easily develop Internet of Things applications using this new ARM Cortex M0 Development Board with W7500 Ethernet from PMD Way.
Based around an ARM Cortex M0 running at 48 MHz, this board is a compact and easy to program solution thanks to the mbed platform - a cloud-based IoT device development platform. This offers online code editors, compilers and drag-and-drop firmware upload the board via USB.
And thanks to the Arduino Uno-compatible shield layout, you can take advantage of that popular hardware standard to use many shields.
Specifications:
- NXP LPC11U35FHI33/501 ARM Cortex M0 Core
- CPU speed - 48 MHz
- 128KB flash
- 48KB SRAM (including 32KB for TCP/IP)
- Hardwired TCP/IP core
- MII interface
- micro SD card socket
More information:
- Visit the mbed platform to get started

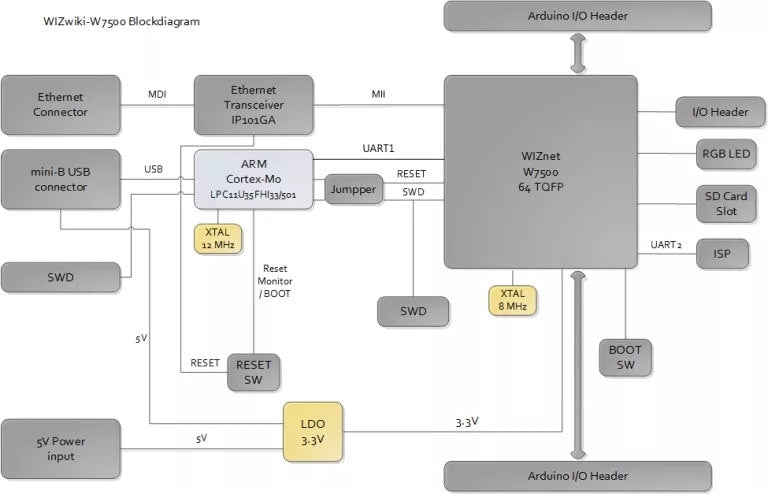

Block diagram:
