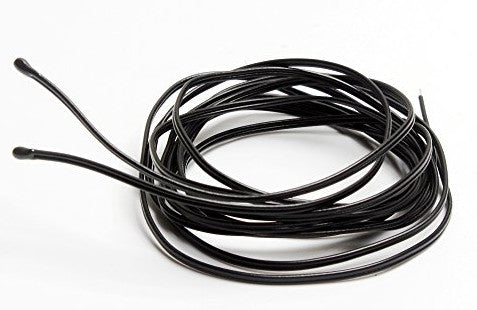

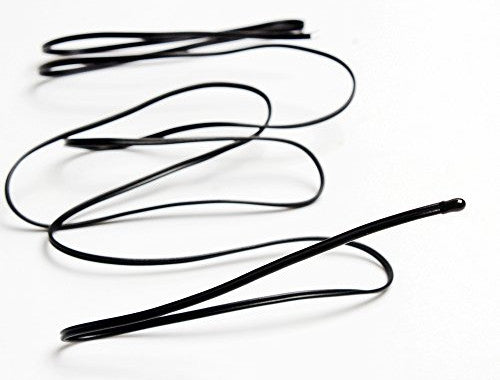

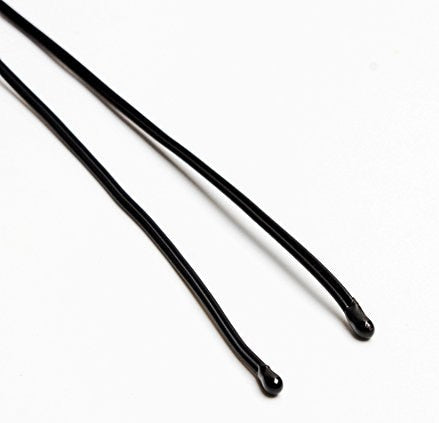

10K Precision Epoxy Thermistor - 3950 NTC - 5 Pack
$10.95
SKU 38310423
Now available from PMD Way are these great value 10K Precision Epoxy Thermistors - 3950 NTC type, sold in packs of five. With free delivery, worldwide.
This epoxy-coated precision 1% 10K thermistor is used to measure temperature in liquids or weather. Resistance is inversely proportional to temperature.
Technical details:
- Resistance at 25 degrees C: 10K +- 1%
- B25/50 = 3950+- 1%
- Thermal time constant <= 15 seconds
- Thermistor temperature range -55 °C to 125 °C
- 28 AWG PVC Wire
- Temperature lookup table (.pdf)
Dimensions:
- Diameter: 1.3mm / 0.05"
- Length: At least 457mm/18" long
