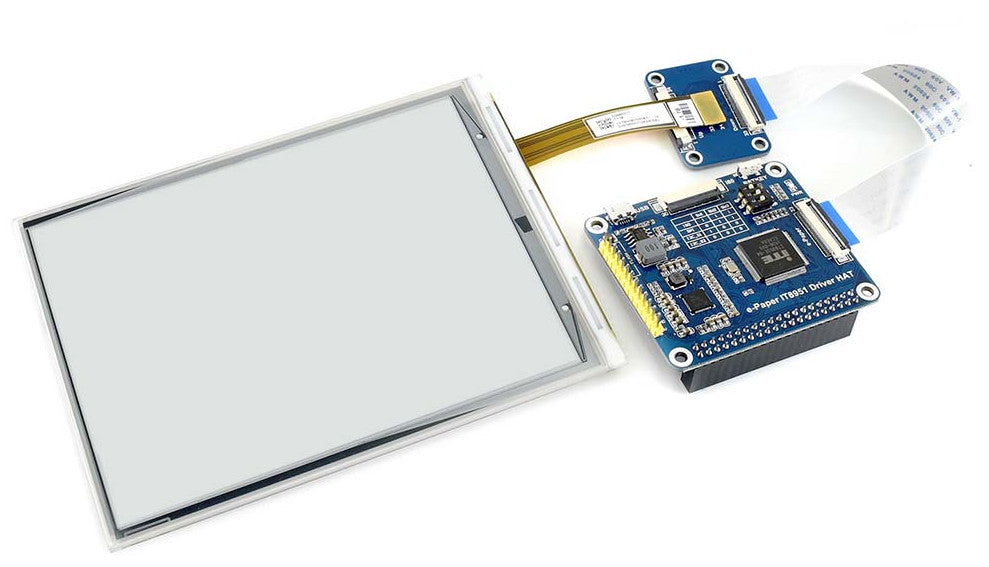

High Resolution 6" 800x600 ePaper eInk Display and HAT for Raspberry Pi
$159.95
SKU 90489140
Now available from PMD Way is this compact yet high-resolution 6" 800 x 600 pixel ePaper display for your Raspberry Pi with 40-pin GPIO.
Ideal for art, large notification screens or building your own ereader. Everything you need is supplied - including the cables, controller HAT, and mounting hardware.
Specifications:
- Operating voltage: 5V
- Interface: USB/SPI/I80/I2C
- Outline dimension: 138.4mm × 101.8mm × 0.954mm
- Display size: 122.4mm × 90.6mm
- Dot pitch: 0.153mm × 0.151mm
- Resolution: 800 × 600
- Display color: black, white
- Gray scale: 2-16 (1-4 bit)
- Full refresh time: <1s
- Total refresh power: 0.6W (typ.)
- Total standby power: 0.3W (typ.)
- Viewing angle: >170°

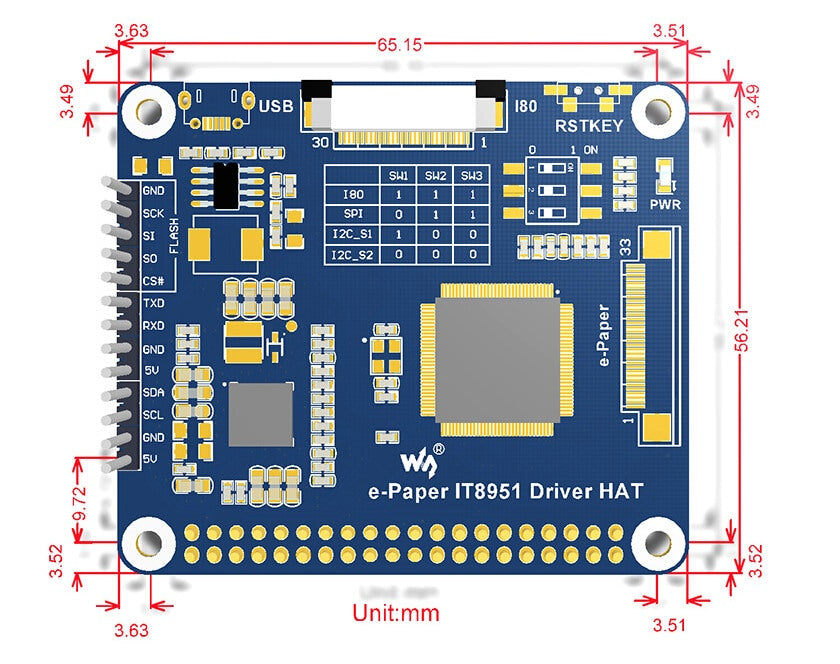

HAT Dimensions:
More information:
Visit the display wiki page for complete setup guide and code examples.
