3400mAh UPS Uninterruptable Power Supply HAT for Raspberry Pi
Give your Raspberry Pi the power to beat blackouts with this neat 3400 mAh UPS (Uninterruptable Power Supply) HAT from PMD Way.

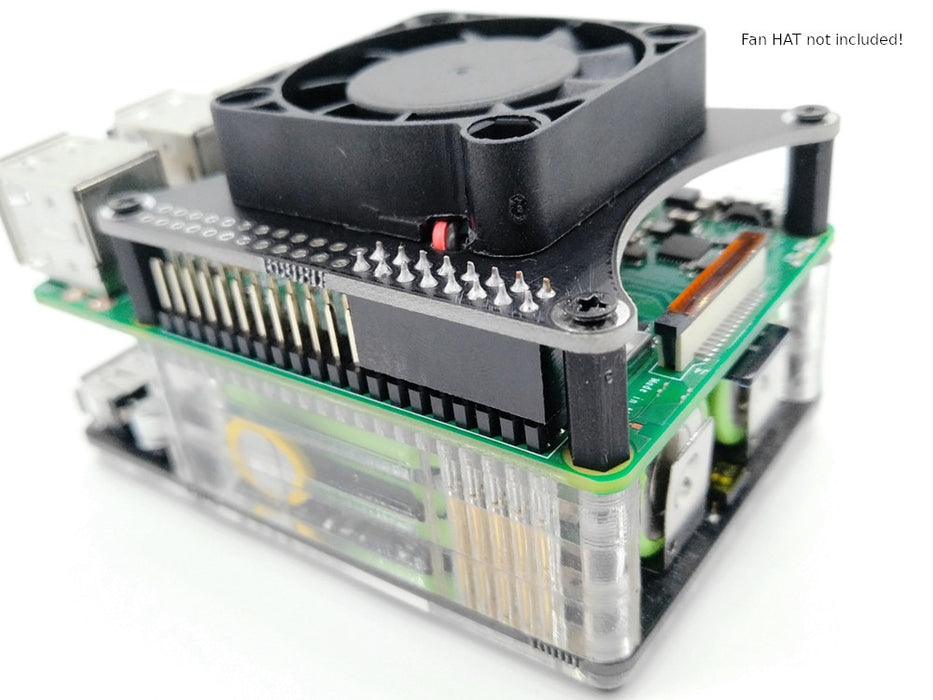

The HAT simply bolts under your Raspberry Pi 4/3/2/B (with 40-pin GPIO) and provides a neat and easy-to-manage power supply when the mains power is out.
Having a UPS HAT on your Pi ensures you don't lose any work, connections or important data during a power outage.

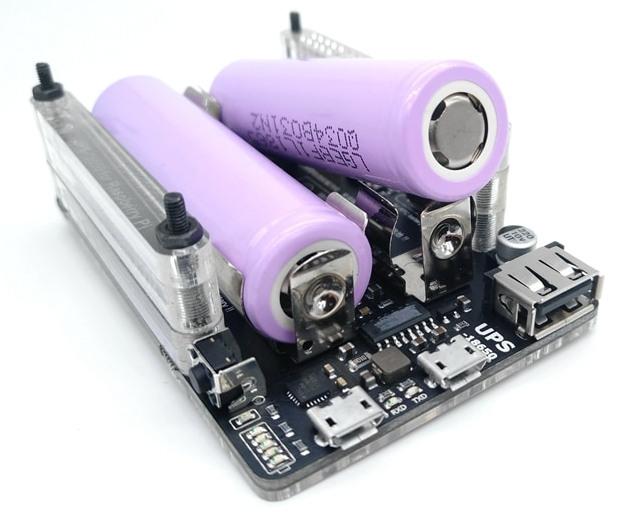

UPS power is provided by two 3400 mAh Lithium batteries, which are included with the HAT. Yes, the batteries ARE included.

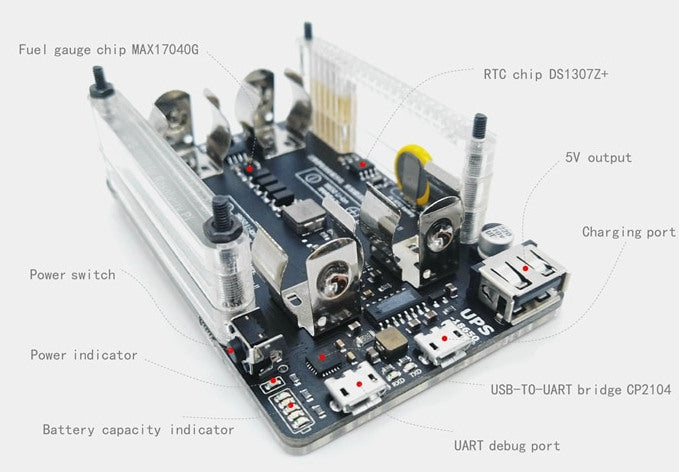

Furthermore, the HAT also has many other features and benefits:
- onboard LED battery fuel gauge
- MAX17040G fuel gauge monitor IC - so your code can monitor UPS
- DS1307Z+ real-time clock IC for time keeping
- external 5V USB output - to power other devices during power outage
- USB to UART bridge with CP2104
- debug port
No soldering is required, and you don't need an external USB power cable to run from the HAT to the Pi, the pogo pins on the UPS HAT simply contact the bottom of the Pi.
Charging rate is 5V at 1A, and the UPS HAT can offer up to 3A of current at 5V in operation. The batteries are user-replacable without soldering, as over the years they will deteriorate like any other rechargeable battery.
UPS operation is automatic, battery power kicks in as soon as AC power dies off and vice-versa. You simply power your UPS-Raspberry Pi setup via the micro USB socket on the UPS HAT, not via the Pi's power socket.
Finally, the UPS HAT includes our exclusive 12 month warranty, and you receive free delivery worldwide.
