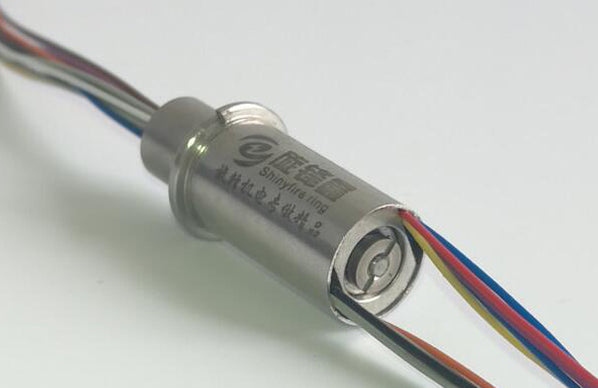

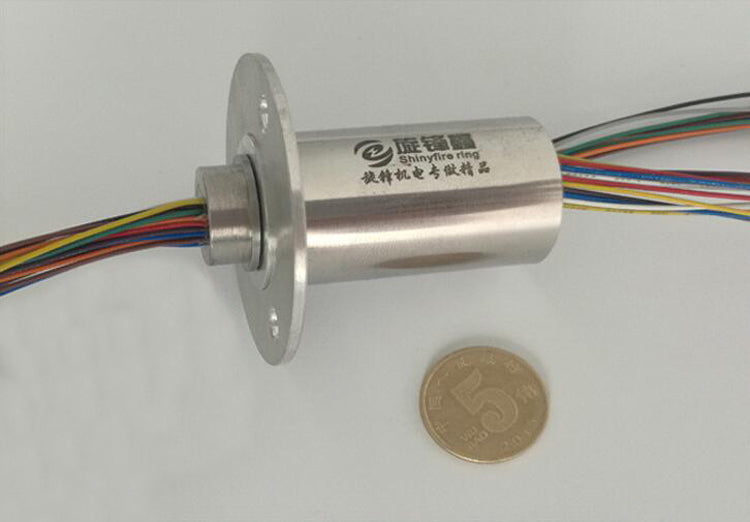

Stainless Steel Precision Slip Rings - 12/18/24/36 Channels
$78.95
SKU 470025A
Now available from PMD Way are these super high quality stainless steel slip rings.
Slip rings are the solution to the problem of connecting wires to a device that needs to rotate continuously around 360 degrees.
These slip rings are available in a wide varity of wires (or channels) - 12, 18, 24, 30 or 36 channels. Free delivery, worldwide.
Specifications:
- Maximum voltage 240V AC/240V DC
- Maximum current - 5A per entire ring. So 12 channel is 12/5A = max 2.4A/channel etc.
- Total lead length - 250mm
- Electrical noise - less than 0.1 Ohms
- Maximum rotation speed - 1000 RPM
- Insulation resistance - 1000 MOhms at 500V DC

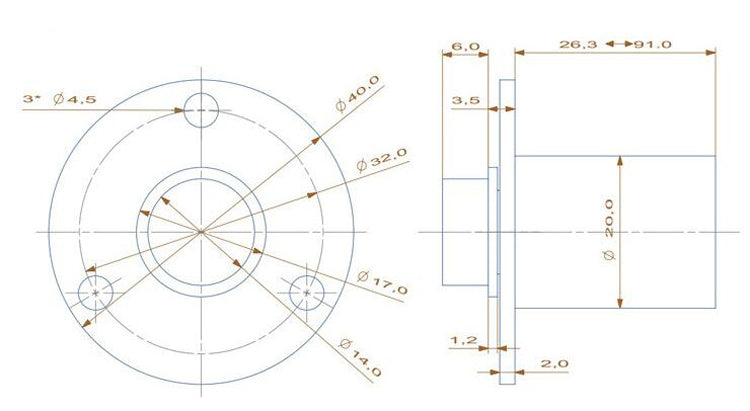

Drawing:
