0.66" 64x48 OLED Display for WeMos LoLin Boards
$19.95
SKU 54898874

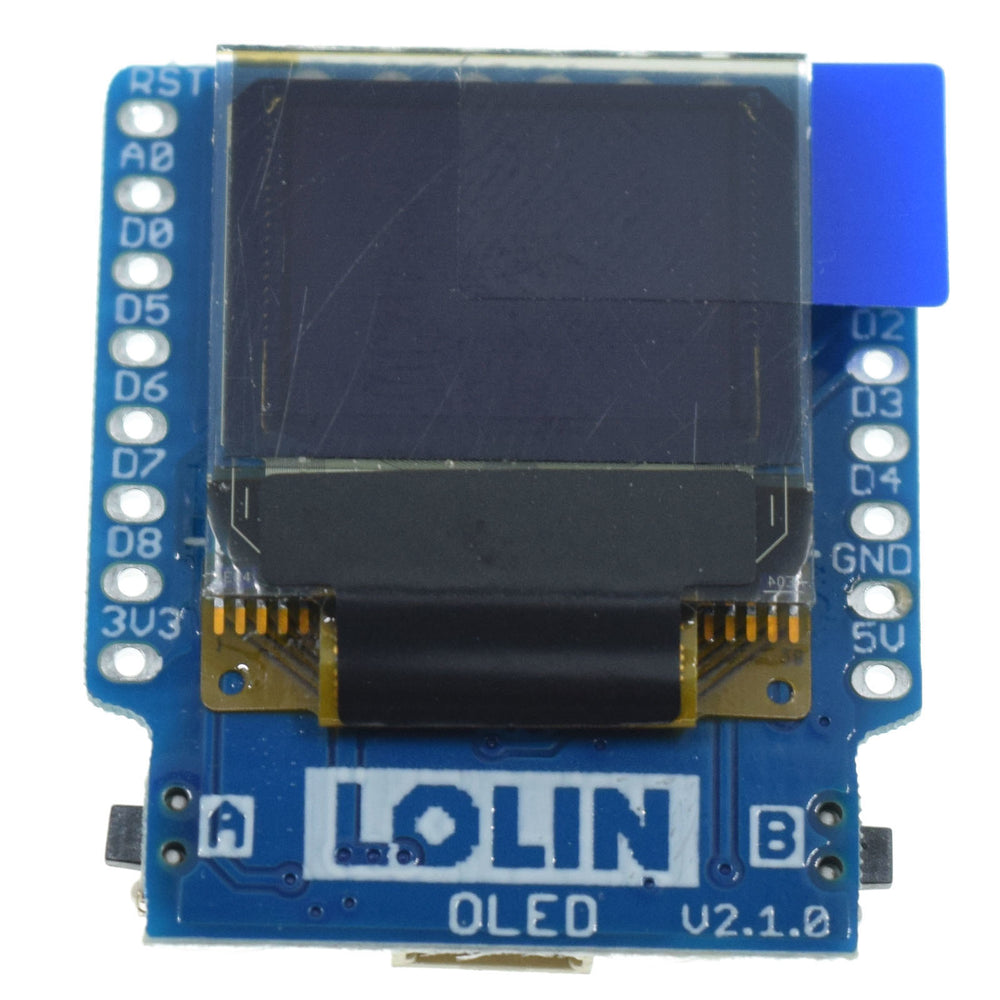

Now available from PMD Way is the latest monochrome OLED display suited for WeMos LoLin D1 Mini boards.

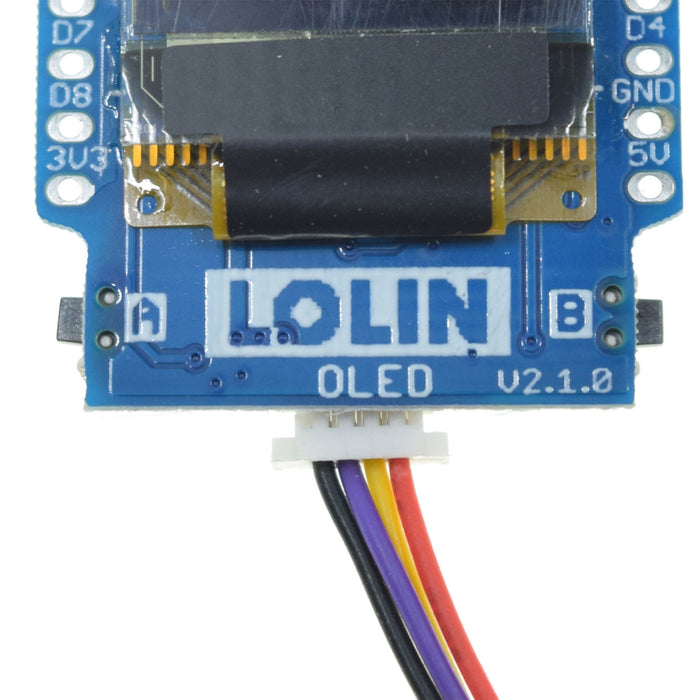

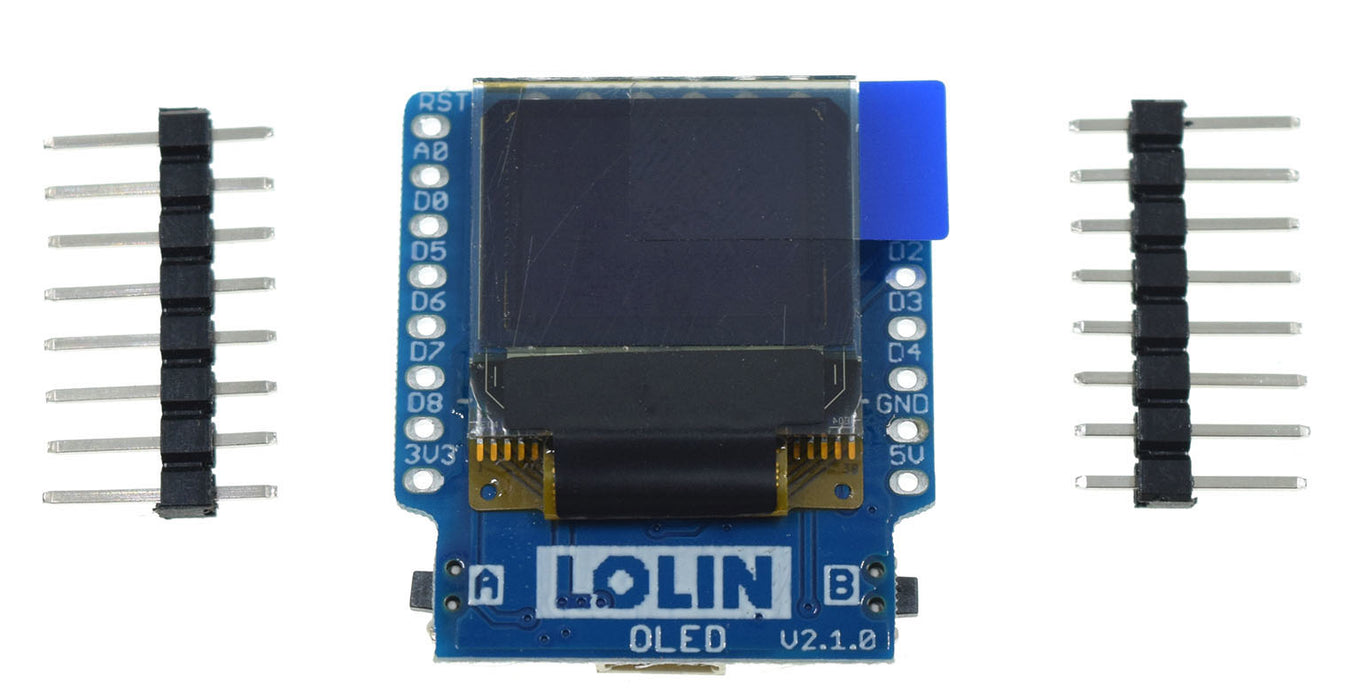

It can be simply stacked onto your D1 mini with the included inline header pins (that require soldering) or you can use the optional TFT shield and TFT cable for convenient remote connection.
Specifications:
- Display resolution - 64 x 48 pixels
- Used SSD1306 I2C display driver (bus address is 0x3C or 0x3D
- Additional two user buttons on I2C address 0x31
More information
- Download graphic display library for Arduino
- Download user button library for Arduino
Changing display I2C address:

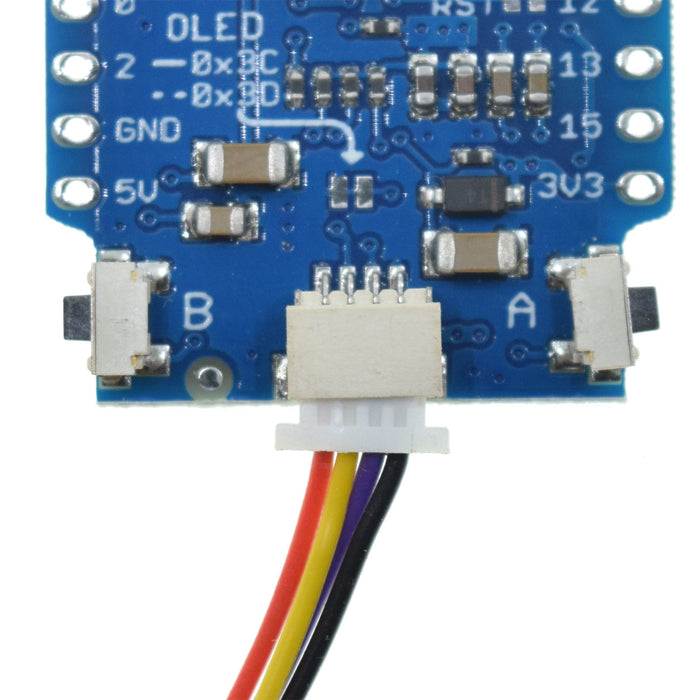

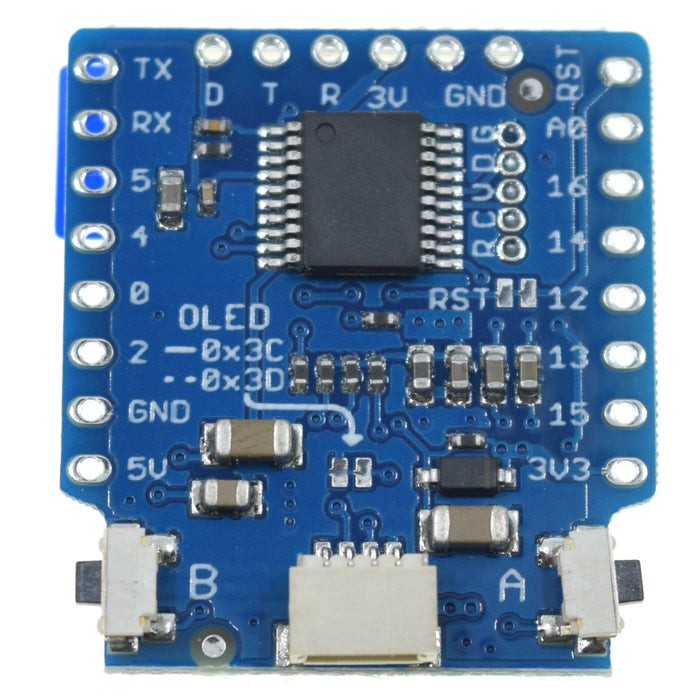

See solder pads marked by goofy arrow below. Bridge pads for 0x3C, separate pads for 0x3D.
