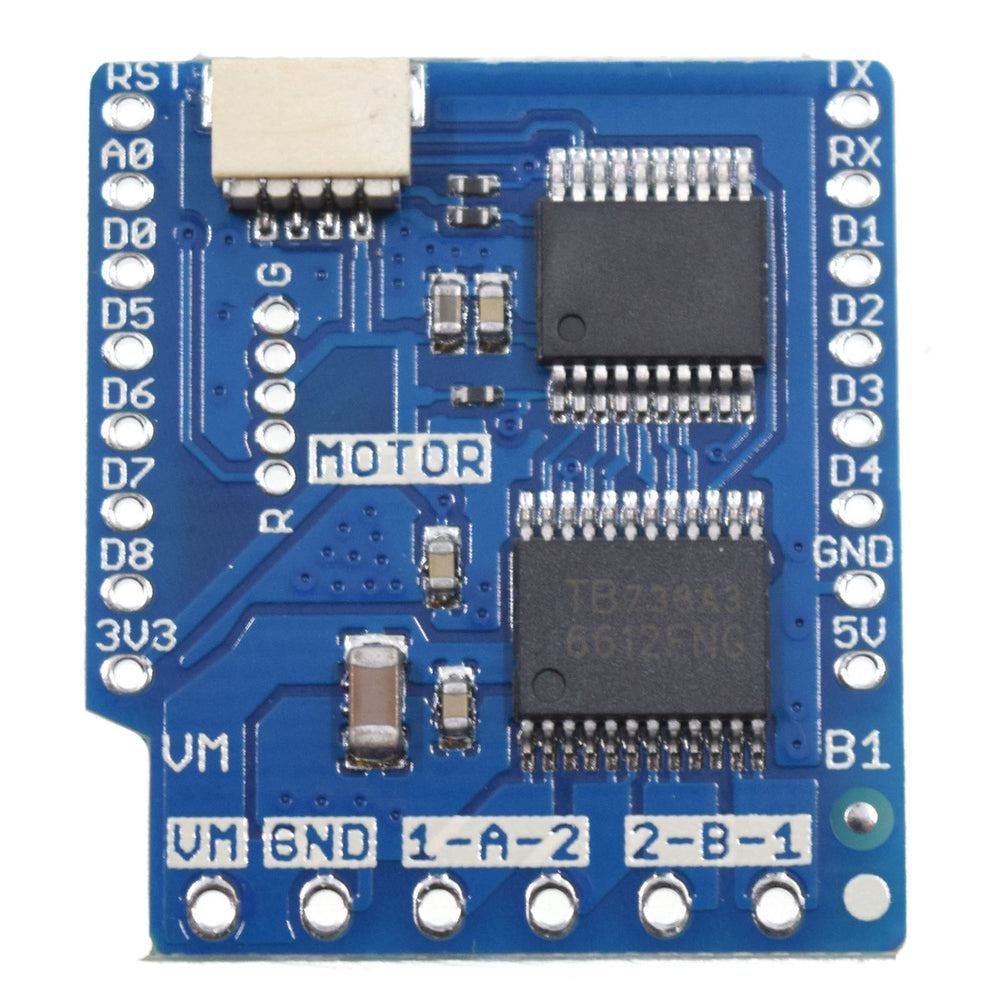

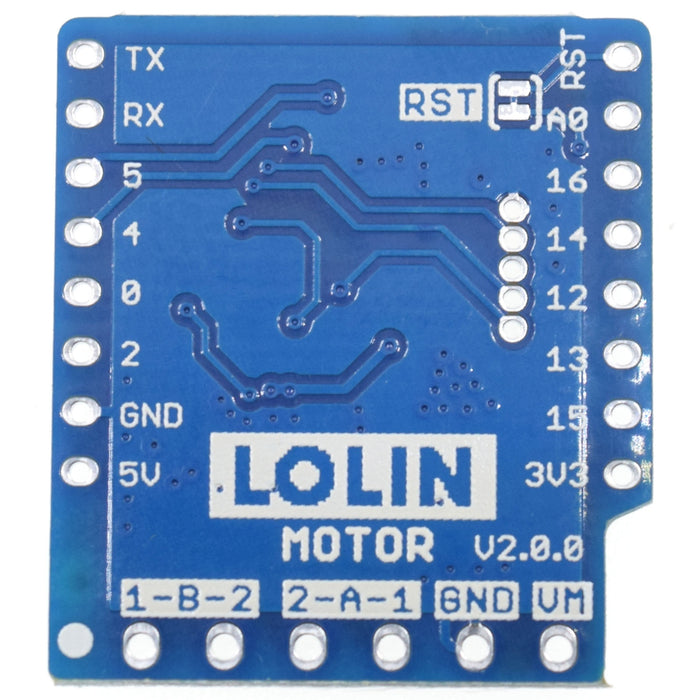

TB6612FNG Motor Shield for WeMos LoLin D1 Mini
$13.95
SKU 54881009
Easily control two DC motors or one stepper motor with your WeMos LoLin D1 mini board using this neat TB6612FNG Motor Shield from PMD Way.
Features:
-
I2C interface
-
Power supply voltage: VM=15V max
-
Output current: Iout=1.2A (average) / 3.2A (peak)
-
Standby control to save power
-
CW/CCW/short brake/stop motor control modes
More information:
- Arduino library
- shield schematic (pdf)

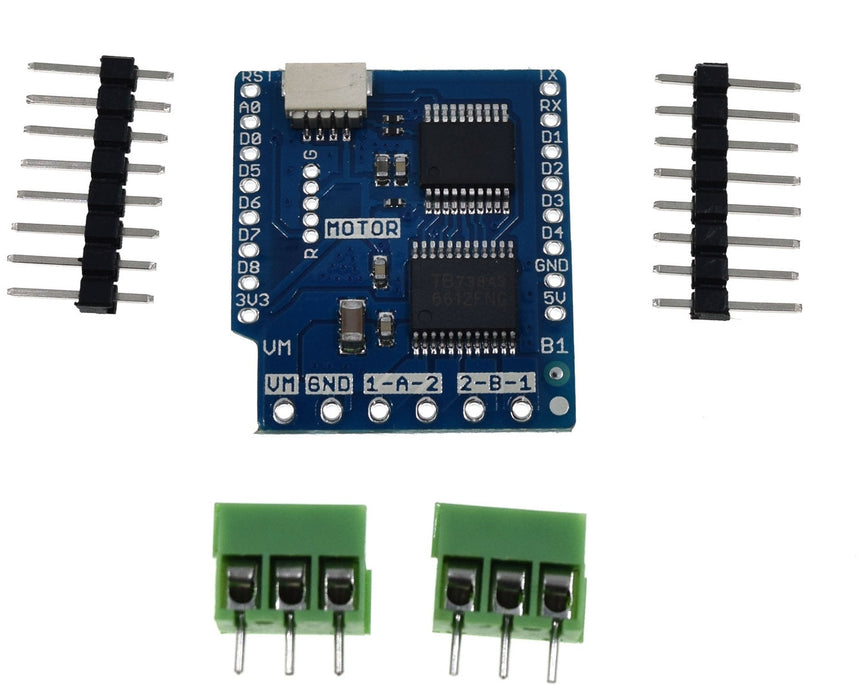

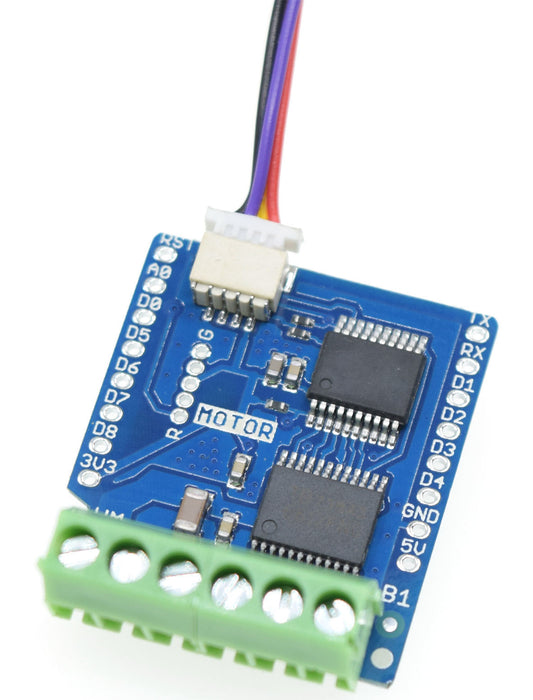

Inline header pins and terminal blocks are included, I2C cable for remote use is not included.
