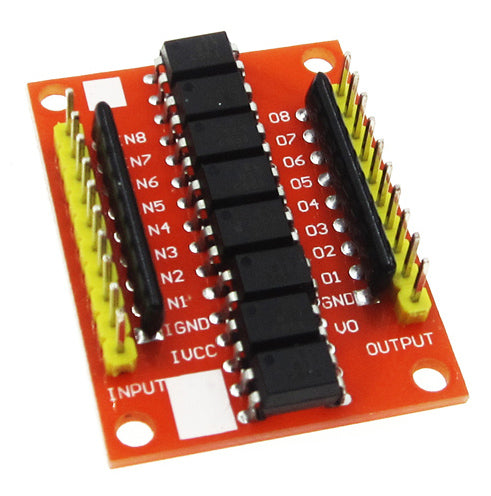

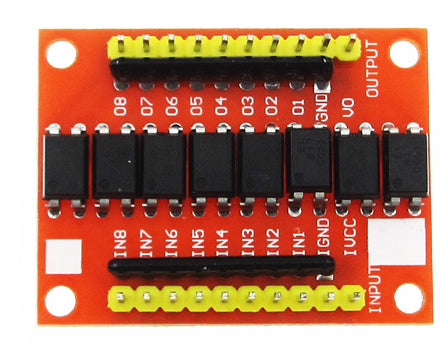

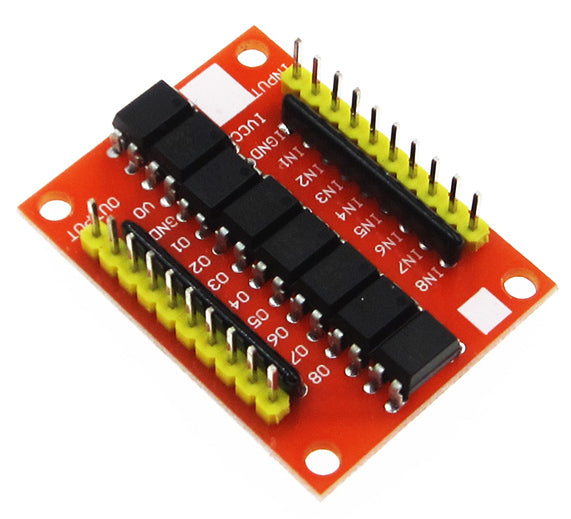

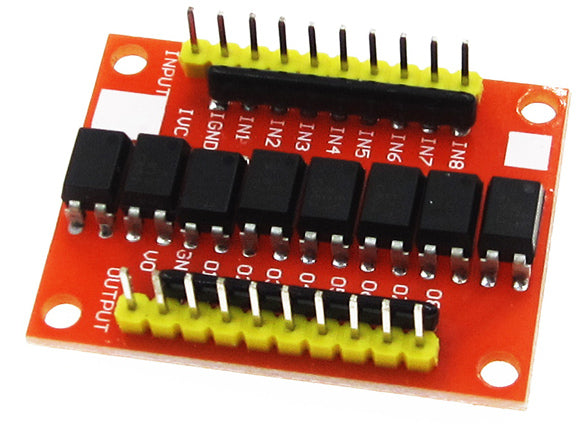

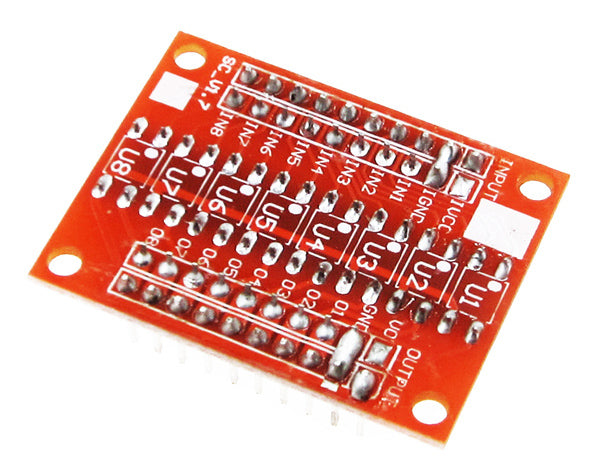

8 Channel Optocoupler Breakout Board

Isolate eight signals with the 8 Channel Optocoupler Breakout Board from PMD Way. This board is fully assembled and connections are all inline header pins - ideal for connection with jumper wires with a female at one end.

Specifications:

• Isolation Voltage: >3000V
• Input Current: < 50mA
• Operating Current: >1mA
• Output Maximum Current: 50mA (when input voltage is within the range of 15-20mA)
• Operating Temperature:-55~110 C
• Maximum Signal Frequency: 80KHz
• Output voltage range of 3~24V DC

Schematic:

Drawing:

Don't forget to check out our full range of optocoupler boards if this doesn't meet your needs. And as always, all orders receive free delivery.
