Breadboard Arduino Kit - ATmega328P-PU DIP28 and parts
$14.95
SKU 175026
Making your own Arduino Uno-compatible projects on a solderless breadboard or other DIY solution?
Then order this Microchip ATmega328P-PU DIP28 Microcontroller from PMD Way.

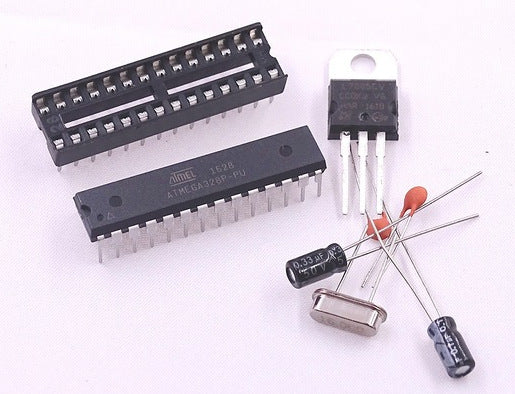

You receive the basics - one each of the following items listed:
- ATmega328P-PU DIP28 Microcontroller
- matching DIP IC socket
- 7805 DC linear power regulator (7~12VDC in, 5VDC out @ 1 A)
- 16 MHz crystal oscillator
- two 22 pF ceramic capacitors
- 0.1 uF electrolytic capacitor
- 0.33 uF electrolytuc capacitor
- Click here for solderless breadboards
Click here for ten packs
The microcontroller may not have the bootloader installed. If you're using an ICSP programmer, the bootloader isn't necessary. If you're using USB-serial to upload sketches, use an Arduino Uno board to flash.
The ATMEGA328-PU is a low power CMOS 8 bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA328-PU achieves throughputs approaching 1MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
- 131 powerful instructions - Most Single Clock Cycle Execution
- 32 x 8 general purpose working registers
- Fully static operation
- Up to 20MIPS throughput at 20MHz
- On-chip 2-cycle multiplier
- Write/erase cycles: 10,000 flash/100,000 EEPROM
- Optional boot code section with independent lock bits
- In system programming by on chip boot program
- True read while write operation
- Programming lock for software security
- Atmel® QTouch® library support
- Capacitive touch buttons, sliders and wheels
- QTouch and QMatrix® acquisition
- Up to 64 sense channels
- Two 8-bit timer/counters with separate prescaler and compare mode
- One 16-bit timer/counter with separate prescaler, compare mode, and capture mode
- Real time counter with separate oscillator
- Six PWM channels
- Programmable serial USART
- Master/Slave SPI
Visit the Microchip website for data sheets and more information.
