RS485 and CAN Interface Cape for BeagleBone Black

$19.95
SKU 128562



Easily add RS485 and CAN-BUS interface to your BeagleBone Black with the RS485 and CAN Interface Cape for BeagleBone Black from PMD Way.

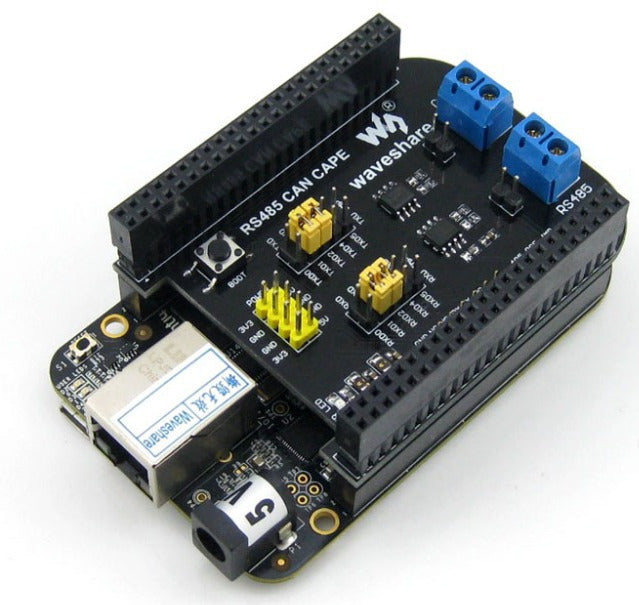

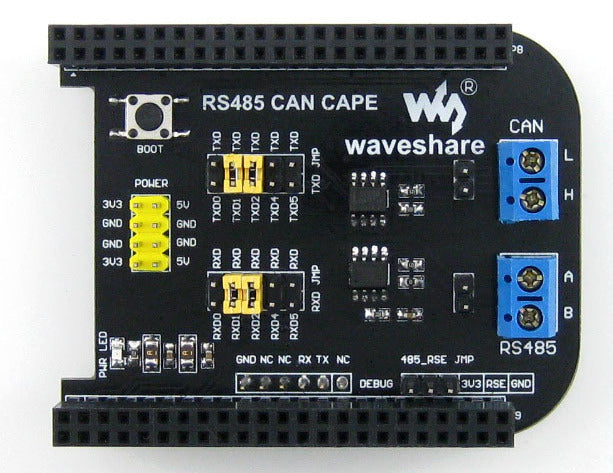

The cape arrives fully assembled and ready to use. A lot of thought has gone into the cape to make it easy to use. The onboard functions are listed and shown below:

  1. stacking headers for connection to BeagleBone Black
  2. pin headers to connect to CAN BUS
  3. screw terminal block to connect to CAN BUS
  4. pin headers to connect to RS485
  5. screw terminals to connect to RS485
  6. serial debugging interface
  7. power expansion header for accessing power
  8. boot selection button
  9. CAN-BUS transceiver IC
  10. RS485 transceiver IC
  11. power indicator
  12. BBB UART TX selection jumper
  13. BBB UART RX selection jumper
  14. RS485 transceiver enable jumper

Visit the cape Wiki page for tutorial.
