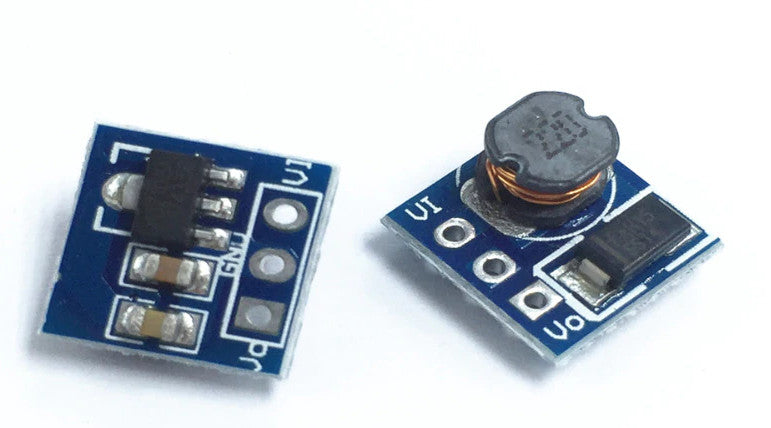

Tiny DC DC 1.8V 2.5V 3V 3.3V 3.7V to 5V Boost Converter - 5 Pack
$8.95
SKU 60997344
Now available from PMD Way are these tiny, tiny DC to DC boost converters. They're ideal for situations where space is a premium, and also great for getting 5V from 18650 rechargeable batteries.
Connection is easy - GND pin in the middle, Vin and Vout. Sold in packs of five.
Free delivery, worldwide.
Specifications:
- Input Voltage: 0.9~5V; output voltage:5V
- Maximum Output Current: 480mA
- Minimum startup voltage: 0.8V DC, which results with an output current of 7mA
- Input Voltage: 1~1.5V; output voltage 5V; current 40~100mA
- Input Voltage: 1.5~2V; output voltage 5V; current 100~150mA
- Input Voltage: 2~3V; output voltage 5V; current 150~380mA
- Input Voltage: >3V; output voltage 5V; current 380~480mA
- Operating Frequency: 150KHz
- Typical Conversion Efficiency: 85%
- Pin spacing: 2.54mm
- Size: 11 x 10.5 x 7.5mm
Usage notes:
- Input voltage should exceed rated voltage,
- Input power should exceed output power, otherwise the output voltage will be less than rated voltage
- Output load should not exceed rated load, otherwise the output voltage will be less than rated voltage
