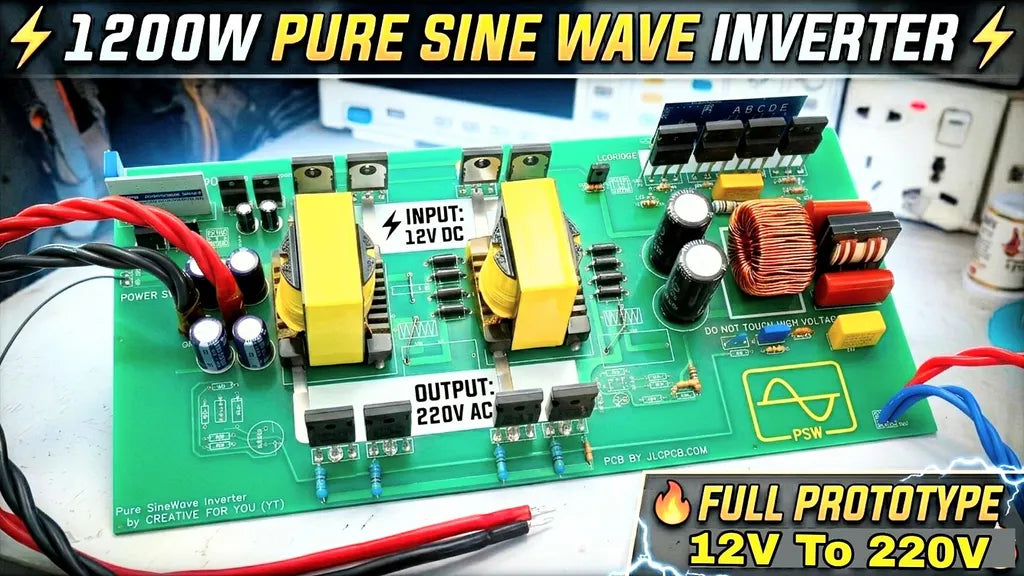

1200W Pure Sine Wave Prototype 12V to 220V

A 1200W pure sine wave inverter is a powerful device that converts 12V DC power into 220V AC power, making it ideal for running household appliances and tools when you're off-grid or during power outages. This type of inverter has become increasingly popular among DIY enthusiasts, campers, and those looking to build reliable backup power systems.

Pure sine wave inverters are superior to modified sine wave alternatives because they produce a clean, smooth electrical output that matches the quality of grid power. This means your sensitive electronics, medical devices, and appliances will operate safely and efficiently without the risk of damage or malfunction that can occur with inferior inverter types.

Understanding the 12V to 220V Conversion

The conversion process from 12V DC to 220V AC involves several key components working together. A transformer steps up the voltage, while an oscillator circuit generates the alternating current waveform. The "pure sine wave" aspect is crucial—it ensures the output voltage follows a smooth, natural curve rather than a stepped approximation, which protects your devices and improves efficiency.

Building a 1200W prototype requires careful planning and quality components. The power rating means this inverter can handle substantial loads, from powering multiple appliances simultaneously to running power tools. However, achieving this output requires proper heat management, robust circuitry, and reliable power delivery from your 12V source.

Applications and Benefits

A 1200W inverter opens up numerous possibilities. Whether you're setting up a solar power system, creating an emergency backup power supply, or powering equipment in remote locations, this capacity provides flexibility. It's powerful enough for refrigerators, microwaves, power drills, and entertainment systems, yet compact enough for portable applications.

The efficiency of pure sine wave inverters means less wasted energy and lower heat generation compared to modified sine wave models. This translates to longer battery life, reduced cooling requirements, and better overall system performance.

Building Considerations

If you're constructing your own 1200W inverter prototype, sourcing quality components is essential. High-frequency transformers, reliable MOSFETs or IGBTs for switching, and proper filtering circuits are all critical to achieving stable output. Testing and calibration are equally important to ensure your inverter delivers consistent 220V AC at the correct frequency.

Thermal management cannot be overlooked. At full load, a 1200W inverter generates significant heat, so adequate heatsinking and ventilation are necessary to prevent component failure and ensure longevity.

The Dangers of Working with Mains Voltage

Working with mains voltage equipment requires serious respect and caution. Mains voltage—whether 220V or other standard grid voltages—can be lethal. Even brief contact with live mains voltage can cause severe electrical shock, burns, or cardiac arrest. The danger is compounded because mains voltage can deliver sufficient current to cause injury or death, and the effects may not always be immediately obvious.

When building or testing a 1200W inverter that outputs mains voltage, always treat the output as live and dangerous. Never work on the device while it's powered, and always discharge capacitors safely before touching internal components. Use proper insulation, wear appropriate personal protective equipment, and keep one hand free when possible to reduce the risk of current flowing across your chest.

If you're not experienced with high-voltage electronics, consider seeking guidance from someone qualified in electrical work. Mistakes with mains voltage are not forgiving—they can result in serious injury or death. Proper training, appropriate tools, and a healthy respect for electrical hazards are non-negotiable when working with equipment that produces mains voltage output.
