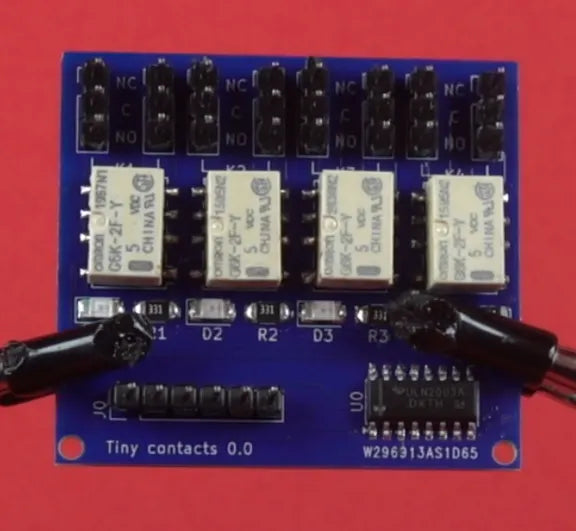

An ultra-compact Relay Module

Hobbyists and electronics enthusiasts are always looking for ways to build smaller, more efficient projects. One innovative approach gaining attention is the development of ultra-compact relay modules that challenge conventional design limits.

A relay is an electromagnetic switch that allows a low-power circuit to control a high-power circuit. Traditionally, relays have been bulky components that take up significant space on a circuit board. However, recent innovations have shown that it's possible to create functional relay modules in a fraction of the usual size without sacrificing reliability or performance.

Why Size Matters in Electronics

In modern electronics projects—whether you're building IoT devices, home automation systems, or portable gadgets—space is at a premium. Compact components allow makers to create more sophisticated projects with less bulk, lower power consumption, and improved portability. An ultra-compact relay module opens up possibilities for applications that simply wouldn't fit with standard-sized relays.

The Innovation Behind Micro Relay Design

Creating a working relay at minimal scale requires careful engineering. The core principle remains the same: an electromagnet pulls a mechanical contact to complete or break a circuit. The challenge lies in miniaturizing the electromagnet coil, the armature, and the contact mechanism while maintaining adequate switching capacity and durability.

Advanced designs achieve this through precision manufacturing, optimized coil winding techniques, and strategic material selection. The result is a module that maintains the essential switching functionality of traditional relays while fitting into spaces previously reserved for solid-state alternatives.

Practical Applications

Ultra-compact relay modules are ideal for projects where space constraints are critical. They work well in wearable electronics, compact robotics, miniature automation systems, and breadboard-friendly prototypes. For makers who prefer mechanical switching over semiconductor solutions, these modules provide a practical middle ground.

Whether you're an electronics student exploring circuit design or an experienced hobbyist pushing the boundaries of what's possible in a small form factor, ultra-compact relays represent an exciting development in accessible, hands-on engineering.
