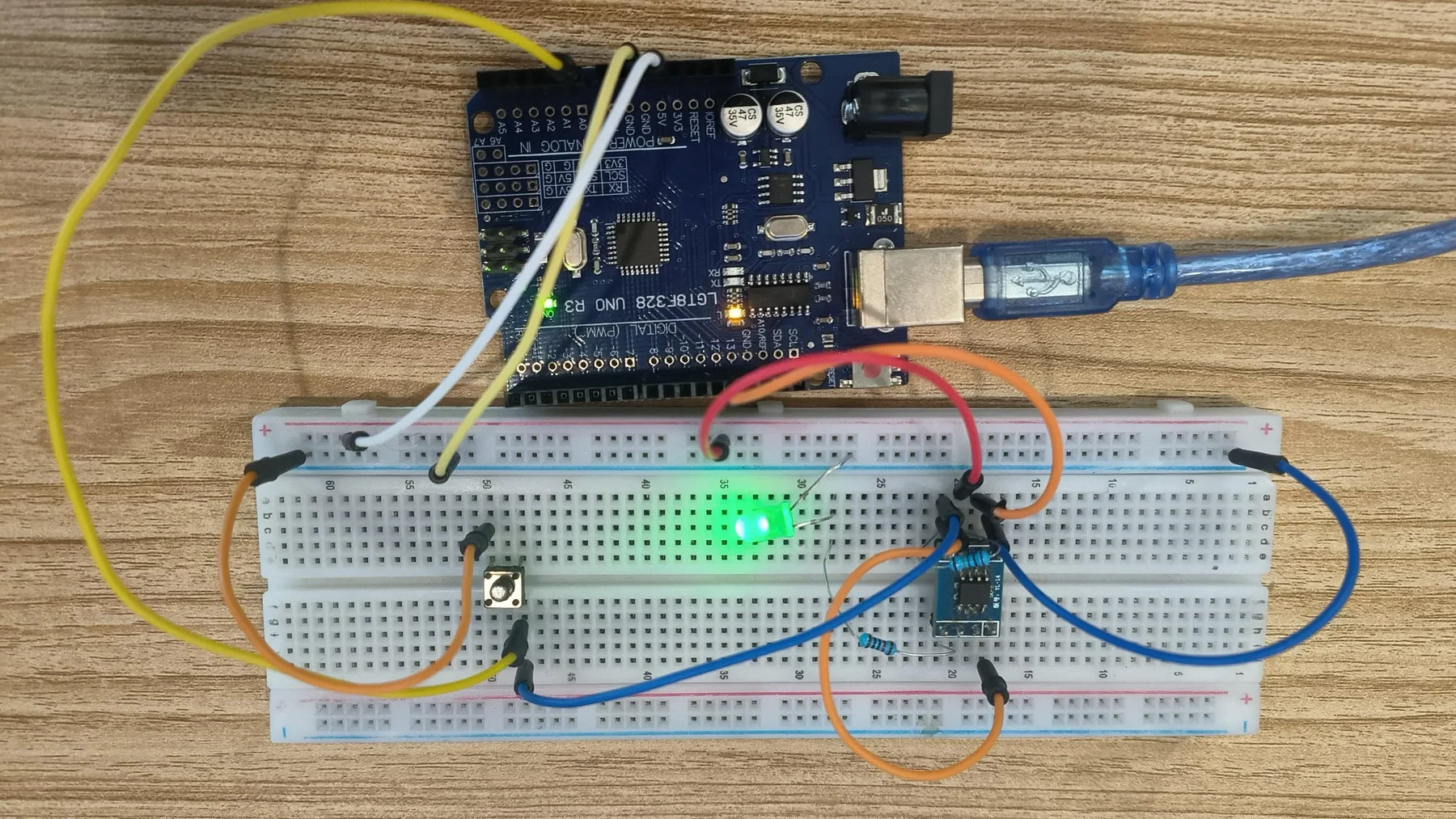

Arduino Soft Latch Power Switch Using the AO4606 MOSFET

If you're working with Arduino projects, managing power consumption is often a critical concern. One elegant solution that's gaining traction among makers and electronics enthusiasts is the soft latch power switch, particularly when using the AO4606 MOSFET. This approach offers a clever way to control power delivery to your devices with minimal components and maximum efficiency.

A soft latch power switch allows your Arduino or microcontroller to control its own power state. Rather than relying on a traditional mechanical switch, the microcontroller can decide when to power itself down, making it ideal for battery-powered projects where every milliamp counts. The AO4606 MOSFET is a popular choice for this application due to its low on-resistance and compact form factor.

The basic principle behind a soft latch circuit is straightforward: when you press a button, it triggers the microcontroller to turn on a GPIO pin, which keeps a MOSFET gate high. This maintains power to the circuit. When the microcontroller decides it's time to sleep or shut down, it simply pulls that GPIO pin low, allowing the MOSFET to turn off and cutting power to the entire system. This creates a self-latching effect where the device controls its own destiny.

What makes this approach particularly valuable is its versatility. Whether you're building a wireless sensor node, a portable data logger, or any battery-powered IoT device, a soft latch power switch can significantly extend your operational time between charges. The AO4606 MOSFET handles this task efficiently, dissipating minimal heat and drawing negligible quiescent current when in the off state.

Implementing this circuit requires careful attention to timing and logic levels, but the payoff in terms of power efficiency and user experience is well worth the effort. For makers looking to optimise their Arduino projects for real-world deployment, mastering the soft latch power switch is a valuable skill that opens up new possibilities for portable and battery-powered applications.
