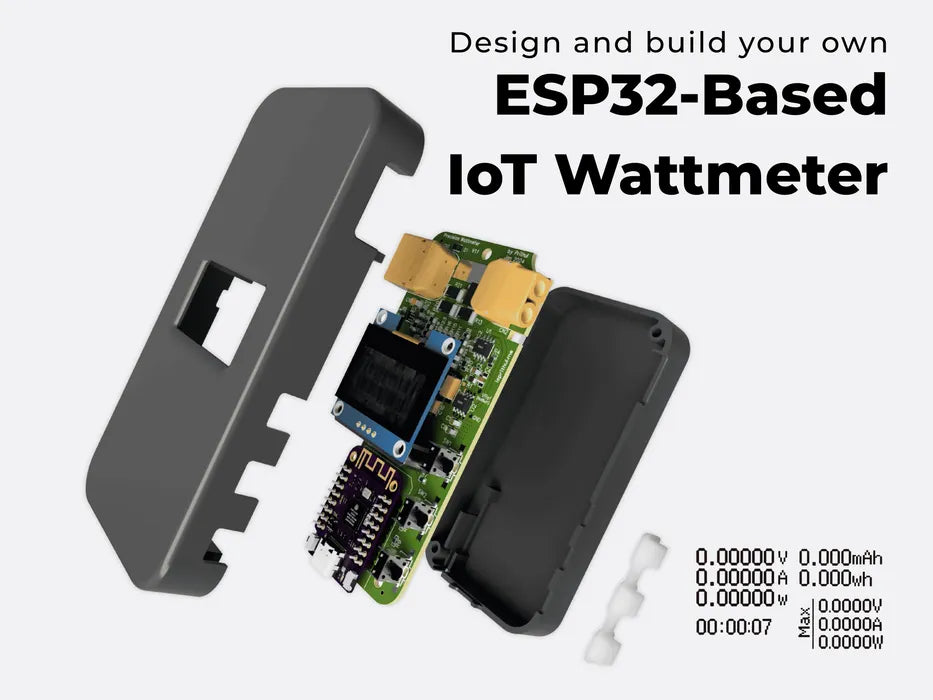

Designing an ESP32 Based Wattmeter

Building your own wattmeter might sound like a project reserved for electrical engineers, but with modern microcontrollers like the ESP32, it's now accessible to hobbyists and makers of all skill levels. A wattmeter is a device that measures electrical power consumption in real-time, making it invaluable for understanding how much energy your devices are using.

The ESP32 is an excellent choice for this project. It's affordable, widely available, and packed with features including built-in WiFi and Bluetooth connectivity. This means your wattmeter can not only measure power consumption but also transmit that data wirelessly to your smartphone or computer for monitoring and analysis.

Why Build Your Own Wattmeter?

Commercial wattmeters can be expensive, and building one yourself offers several advantages. You gain a deeper understanding of how electrical measurements work, you can customise the device to suit your specific needs, and you'll have a functional tool that helps you identify energy-hungry appliances in your home or workshop.

Whether you're interested in reducing your electricity bills, monitoring renewable energy systems, or simply exploring electronics as a hobby, a DIY wattmeter is a rewarding project that combines hardware assembly with software programming.

What You'll Need

The core components are straightforward: an ESP32 microcontroller board, a current sensing module (typically based on the ACS712 or similar), a voltage divider circuit, and some basic electronic components like resistors and capacitors. Most of these items are inexpensive and readily available from electronics suppliers online.

You'll also need a development environment to program the ESP32—the Arduino IDE is a popular choice and works seamlessly with ESP32 boards. If you're new to programming, don't worry; there are plenty of beginner-friendly tutorials and code examples available in the maker community.

Getting Started

The design process begins with understanding the basics of power measurement. Power is calculated by multiplying voltage by current, so your wattmeter needs to accurately measure both. The voltage divider circuit steps down the mains voltage to a safe level that the ESP32's analogue input can read, while the current sensor detects the current flowing through the circuit.

Once you've assembled the hardware and uploaded the firmware to your ESP32, you can begin taking measurements. Many builders add a display to show real-time readings, or set up wireless data logging to track consumption over time.

A Project Worth Exploring

Building an ESP32-based wattmeter is more than just a technical exercise—it's a practical tool that teaches valuable skills in electronics, programming, and data analysis. Whether you complete it as a weekend project or expand it into something more sophisticated, you'll end up with a device that's both useful and educational.
