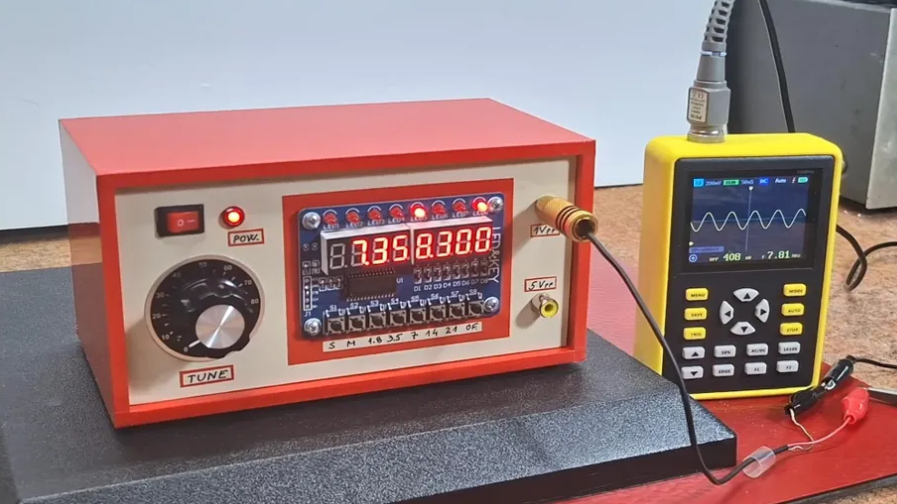

DIY Arduino VFO with AD9850

DIY Arduino VFO with AD9850

Building your own variable frequency oscillator (VFO) is an exciting electronics project that combines Arduino programming with RF signal generation. A DIY Arduino VFO using the AD9850 chip and TM1638 display module opens up possibilities for amateur radio enthusiasts, hobbyists, and electronics learners looking to create professional-grade equipment at a fraction of the cost.

The AD9850 is a direct digital synthesis (DDS) chip that can generate frequencies across a wide range with excellent stability and precision. When paired with an Arduino microcontroller, it becomes a powerful tool for creating adjustable frequency signals. The TM1638 module provides a user-friendly interface with both a seven-segment display and push buttons, allowing you to tune frequencies intuitively and monitor your settings in real time.

Why Build a DIY VFO?

Commercial VFOs can be expensive and often come with features you may not need. A DIY approach lets you customise the frequency range, resolution, and interface to match your specific requirements. Whether you're experimenting with radio circuits, testing equipment, or exploring signal generation, building your own VFO teaches valuable skills in digital electronics, microcontroller programming, and RF design.

Key Components

The core of this project relies on a few essential parts: the Arduino board serves as the brain, the AD9850 DDS module generates the actual signals, and the TM1638 display module handles user input and output. Additional components include resistors, capacitors, and connectors to complete the circuit. The modular design means you can source these parts from electronics suppliers and assemble them on a breadboard or custom PCB.

Getting Started

Once you've gathered your components, the next step is understanding how each part communicates. The Arduino controls the AD9850 through serial communication, sending frequency data and control signals. The TM1638 connects via GPIO pins, allowing the Arduino to read button presses and update the display. Sketches and libraries are available to simplify the programming process, making this project accessible even if you're new to Arduino development.

A DIY Arduino VFO project combines practical electronics knowledge with hands-on building experience. It's a rewarding way to create a useful tool while deepening your understanding of frequency generation and digital control systems.
