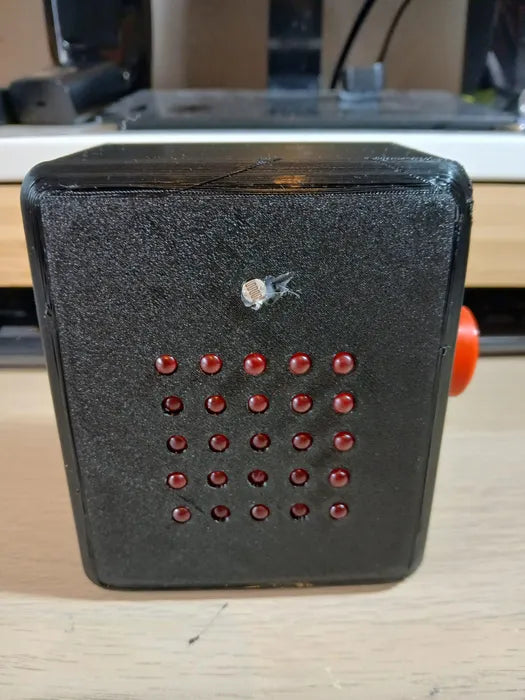

DIY LED Matrix

Creating your own LED matrix is an exciting DIY project that opens up endless possibilities for custom displays, art installations, and interactive projects. Whether you're a beginner or an experienced maker, building an LED matrix from scratch is more achievable than you might think.

An LED matrix is essentially a grid of light-emitting diodes arranged in rows and columns. This setup allows you to control individual LEDs or groups of them to create patterns, animations, and visual effects. The beauty of a DIY approach is that you can customise the size, colour, and brightness to suit your specific needs.

Why Build Your Own LED Matrix?

There are several compelling reasons to take on an LED matrix project. First, it's significantly more cost-effective than purchasing pre-made displays. Second, you gain complete control over the design and functionality. Third, it's an excellent learning opportunity if you're interested in electronics, programming, and creative engineering.

Whether you want to create a retro-style scoreboard, an ambient lighting installation, or an interactive art piece, a DIY LED matrix gives you the freedom to bring your vision to life.

Getting Started

Before diving in, you'll need to gather some basic components: individual LEDs, resistors, a microcontroller (like an Arduino), jumper wires, and a breadboard or PCB for assembly. The specific components depend on the size and complexity of your matrix.

Planning is crucial. Sketch out your design, decide on the matrix dimensions, and determine how many LEDs you'll need. Consider the power requirements and whether you'll need additional components like transistors for controlling larger matrices.

The Building Process

Start by arranging your LEDs in the desired grid pattern. Solder connections carefully, ensuring proper polarity. Connect your microcontroller to manage the LED states through code. This is where the real magic happens - your programming determines what your matrix displays.

Testing each section as you build helps identify issues early. Don't rush the soldering or wiring stages, as poor connections can lead to frustrating troubleshooting later.

Bringing It to Life

Once your hardware is assembled, programming your microcontroller brings your LED matrix to life. You can create simple patterns, scrolling text, animations, or even interactive displays that respond to sensors or user input.

The learning curve is gentle if you start with basic sketches and gradually increase complexity. There are plenty of online resources and communities ready to help if you get stuck.

A DIY LED matrix project is rewarding, educational, and fun. It's a fantastic way to combine creativity with technical skills and produce something genuinely impressive.
