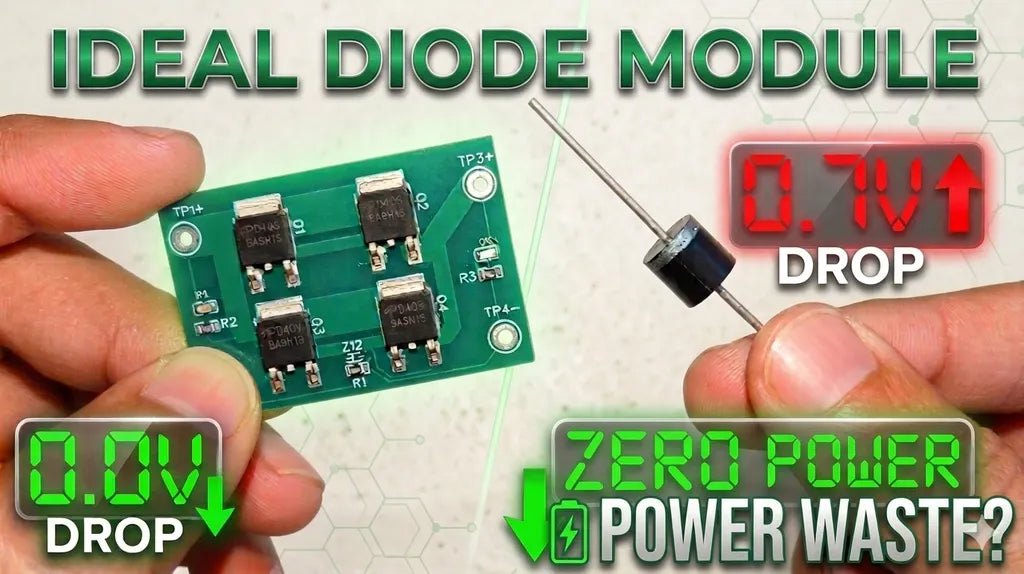

DIY Perfect Diode With Zero Voltage Drop

Building electronic circuits often means working within the limitations of standard components. One of the most common challenges engineers and hobbyists face is the voltage drop across diodes—typically around 0.7 volts for silicon diodes. This seemingly small loss can significantly impact circuit efficiency, especially in low-voltage applications. But what if there was a way to create a diode with virtually zero voltage drop?

A recent project shared on Instructables demonstrates an innovative approach to this problem: the DIY perfect diode. This clever circuit uses a combination of standard components to simulate an ideal diode that conducts current with minimal voltage loss, opening up new possibilities for efficient power management in custom electronics projects.

Understanding the Challenge

Traditional diodes are essential for controlling current direction in circuits, but their forward voltage drop is a trade-off that designers must accept. In battery-powered devices, renewable energy systems, and precision analog circuits, this voltage loss translates directly into wasted power and reduced efficiency. For applications running on limited power budgets, even small improvements in efficiency can extend operating time or reduce heat generation.

The ideal diode concept addresses this limitation by using active circuitry to compensate for the voltage drop, creating a component that behaves like a perfect conductor in one direction while blocking reverse current.

How It Works

The DIY perfect diode design leverages operational amplifiers and MOSFETs to achieve near-ideal performance. By monitoring the voltage across the diode and actively adjusting the gate voltage of a MOSFET, the circuit maintains forward conduction with a voltage drop measured in millivolts rather than hundreds of millivolts. This active compensation makes the circuit behave almost identically to an ideal diode.

The beauty of this approach is that it uses readily available components, making it accessible to makers and engineers working on custom projects. The circuit is relatively simple to build and can be adapted for different current levels and applications.

Practical Applications

Perfect diodes have numerous real-world uses. Solar panel systems benefit from reduced losses in blocking diodes. Battery management circuits can improve charging efficiency. Low-voltage power supplies become more efficient, and analog circuits requiring precision can operate with less thermal noise from diode losses.

For hobbyists and makers, this project represents an opportunity to explore active circuit design and understand how clever engineering can overcome component limitations. Whether you're optimizing a renewable energy project or simply curious about circuit design, the DIY perfect diode is a fascinating build worth exploring.
