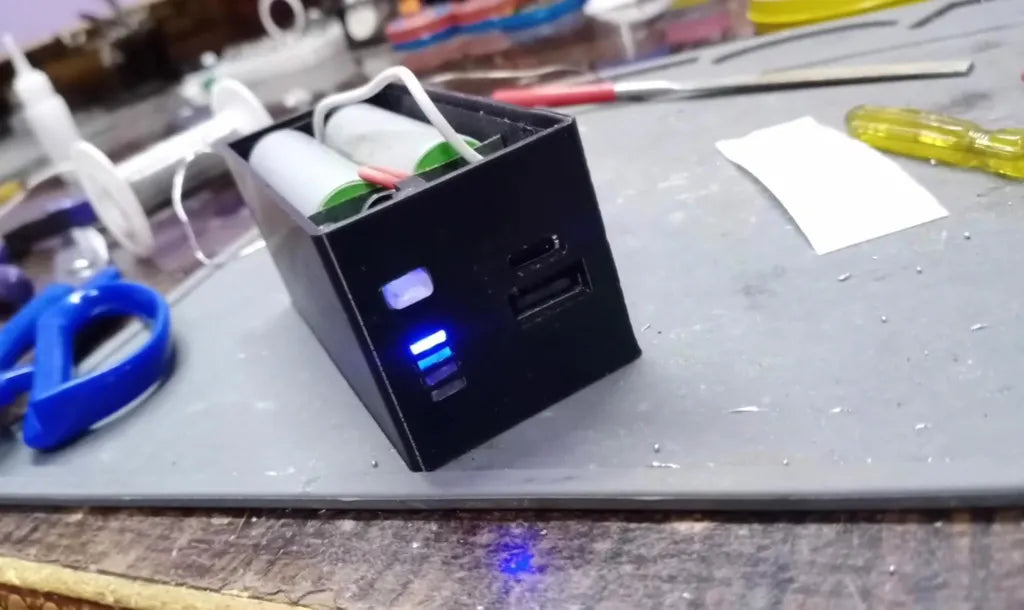

How to Make a DIY 18650 Power Bank With a 3D Printed Case

Building your own power bank is one of those satisfying DIY projects that combines practical utility with creative problem-solving. If you've been curious about electronics and 3D printing, a DIY 18650 power bank is the perfect gateway project to explore both at once.

What You'll Need

The beauty of this project is that the component list is relatively straightforward. You'll need 18650 lithium-ion cells—these are the same batteries found in many commercial power banks and devices. Pair that with a charging module and a boost converter, and you're already halfway there. Add some basic wiring, a USB connector, and a few tactile buttons for power management, and you have all the electronics sorted.

The real magic happens when you introduce 3D printing into the mix. A custom-designed case keeps everything organised and protected while giving your power bank a truly personal touch. You can design it to fit your exact specifications, add cable management features, or even brand it with your own logo.

The Design and Printing Process

3D printing allows you to create a housing that's tailored to your components. Whether you're using an FDM printer with PLA or PETG filament, or you prefer the precision of resin printing, there are options to suit different needs. The design typically includes compartments for battery placement, slots for the charging module, and openings for ports and buttons.

One of the advantages of 3D printing your case is durability. A well-designed enclosure protects your electronics from accidental drops and environmental exposure while keeping the overall weight low.

Assembly and Testing

Once your printed case is ready and all components arrive, assembly is the fun part. Careful soldering of the battery connections, secure placement of the charging module, and proper wiring of the boost converter determine how well your power bank performs. Testing each stage—charging, discharging, and load testing—ensures everything works safely before you seal it all up.

This is where patience pays off. Take your time with connections, double-check polarities, and don't rush the final assembly.

Why Build Your Own?

Beyond the satisfaction of using something you've created, a DIY power bank offers customisation that commercial options simply can't match. Want a specific capacity? Choose your cells accordingly. Need a particular form factor? Design it yourself. This project teaches valuable skills in electronics, soldering, and CAD design, knowledge you can apply to countless future projects.

Whether you're a seasoned maker or just starting your DIY journey, building a power bank with a 3D printed case is rewarding, educational, and genuinely useful.
