1" 7 Segment LED Display - 5 Pack - Various Colors

$31.95
SKU 582300701

Now available from PMD Way are 7-segment numeric LED displays with 1" digits.

You can select from common-anode or common cathode wiriing types, and also one of five colors using the options menu. Operating voltage is shown next to the color in the options menu.

Displays are sold in packs of five of one type.

Do not exceed 20mA per segment.

All units measure 34 x 24 x 10.5mm.

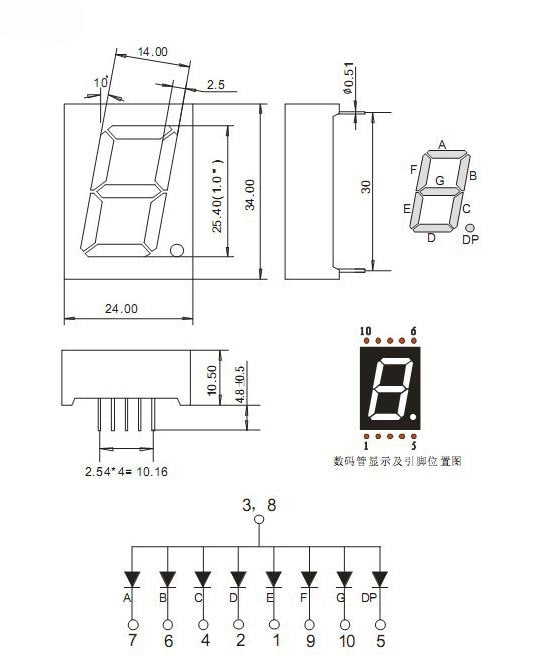

Dimensions and pinouts - Common Anode

1" 7 Segment LED Display - 5 Pack - Various Colors from PMD Way with free delivery worldwide

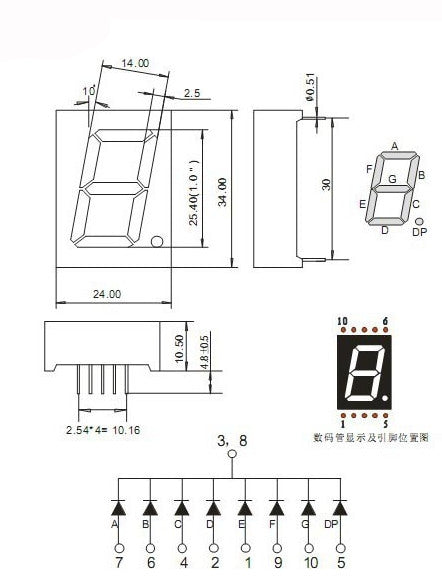

Dimensions and pinouts - Common Cathode

1" 7 Segment LED Display - 5 Pack - Various Colors from PMD Way with free delivery worldwide
