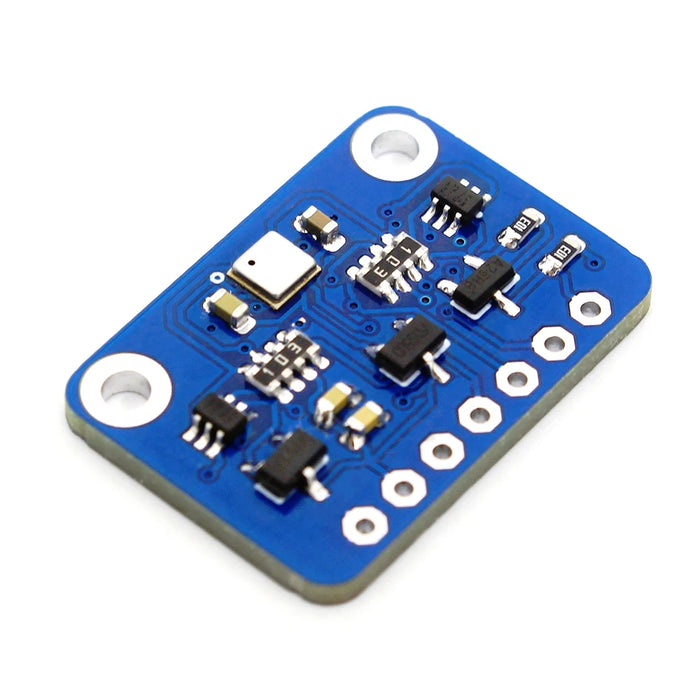

ENS160 Carbon Dioxide Sensor Module
Now available from PMD Way is the ENS160 Carbon Dioxide Sensor Module with free delivery.
Based on the ENS160 digital multi-gas sensor, this unit utilised Metal Oxide (MOX) technology to detect various Volatile Organic Compounds (VOCs) and equivalent CO₂ (eCO₂), while providing an Air Quality Index (AQI-UBA) output.
Equipped with intelligent algorithms, it supports temperature/humidity compensation and automatic baseline management for stable and reliable data.
Key Advantages:
- Multi-Gas Detection: Supports TVOC, eCO₂, and individual gases (e.g.,ethanol, hydrogen) for broad application coverage.
- High-Precision Output: Complies with international IAQ standards, offering ppb/ppm-level resolution.
- Low-Power Design: Features standby mode (0.01 mA), ideal for battery-powered devices.
- Dual Communication Interface: Compatible with I²C and SPI, ensuring seamless integration with various host systems.

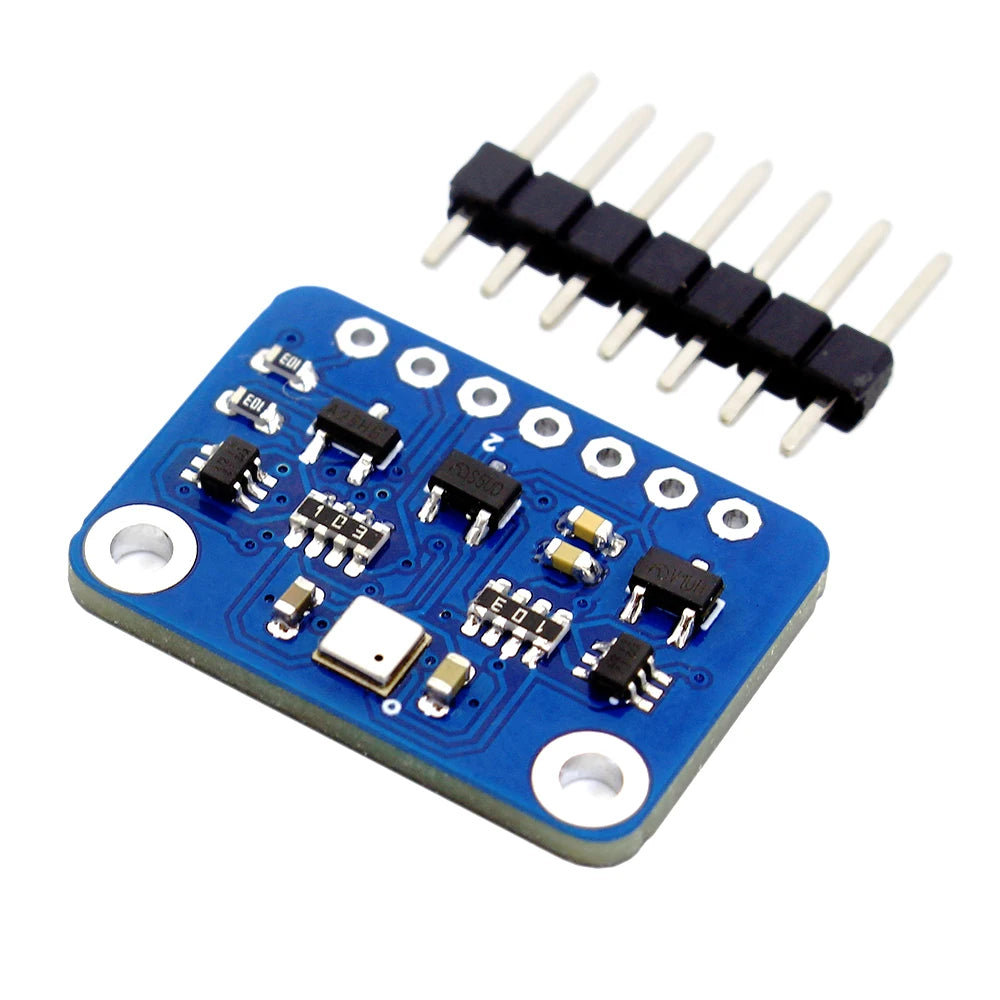

Board includes inline header pins as shown, but they are not soldered to the board.
Specifications:
- Core Sensor - ENS160 Digital Metal Oxide (MOX) Multi-Gas Sensor
- Detected Gases - Volatile Organic Compounds (VOCs),equivalent CO₂ (eCO₂),ethanol, hydrogen, toluene, acetone, etc.
- Output Signals - TVOC (0–65,000 ppb), eCO₂ (400–65,000 ppm), AQI-UBA (1–5)
- Interface - I²C (configurable address 0x53) or SPI (up to 10 MHz)
- Supply Voltage - 3.3~5V DC
- Power Consumption
- Standby mode (DEEP SLEEP): 0.01 mA;
Standard mode (STANDARD): 24 mA (peak 65 mA) - Operating Temperature - -40°C to +85°C
- Operating Humidity - 5% to 95% RH (non-condensing)
- Data Compensation - Built-in temperature/humidity compensation, ozone compensation, automatic baseline management
- Response Time - Warm-up time: 3 min; Initial stabilization: 1 hour
