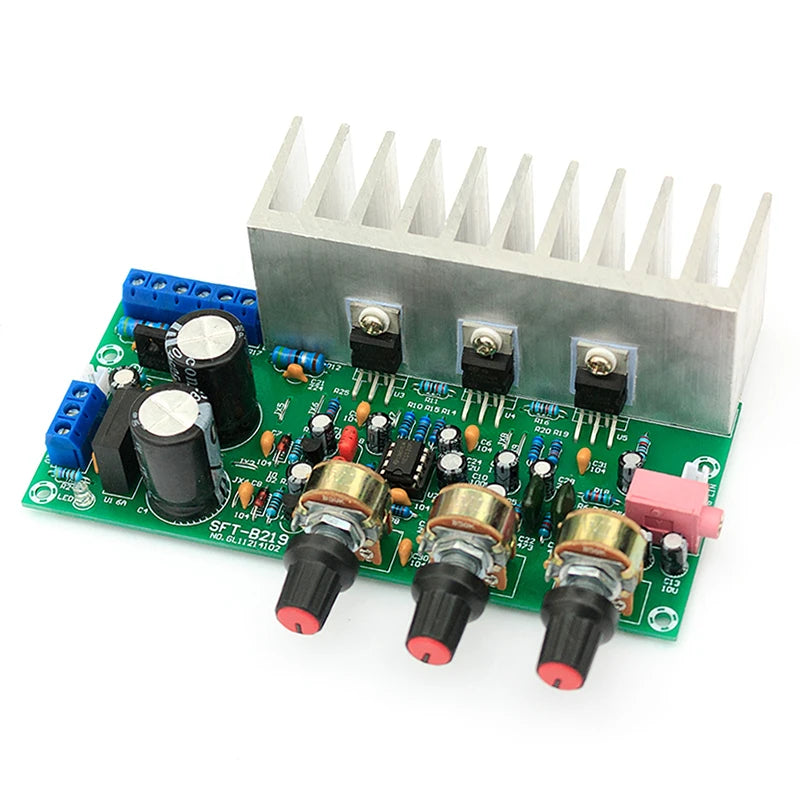

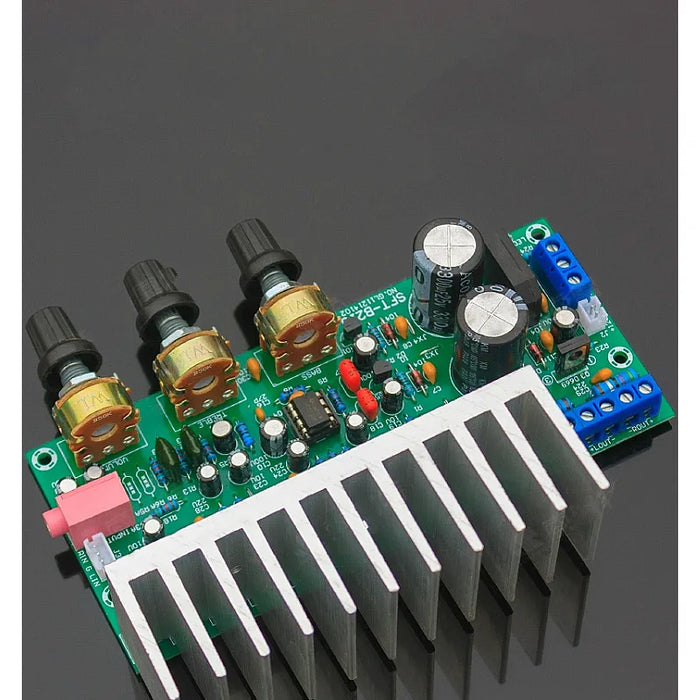

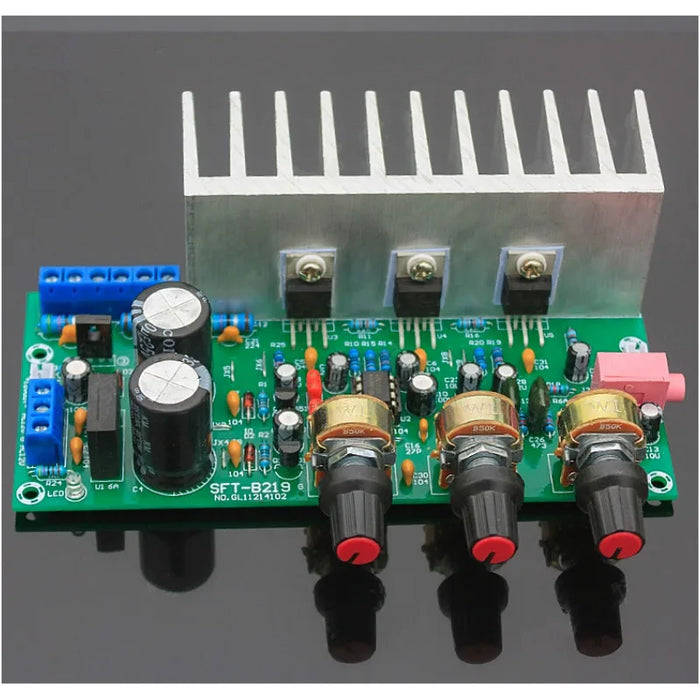

TDA2050+TDA2030 2.1 Integrated Amplifier Board
Rock your world with this convenient and fully-assembled TDA2050+TDA2030 2.1 Integrated Amplifier Board from PMD Way.
The board consists of a stereo 15 W amplifier along with a 30 W subwoofer output. Great for building your own stereo systems on a budget or making use of an older pair of speakers you found for cheap.

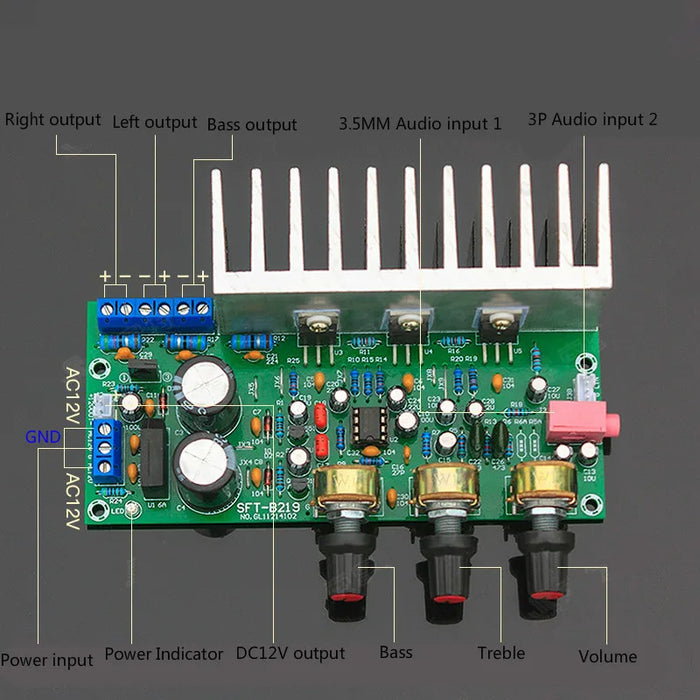

Board has bass, treble, and volume controls along with a 12 V DC power output and a stereo 3.5 mm headphone output.
Power outputs of 15 W per channel and 30 W for the sub are for speakers with four to eight Ohms impedance.
Requires a 12-0-12 V AC power supply that can supply 50 to 100 W of power.

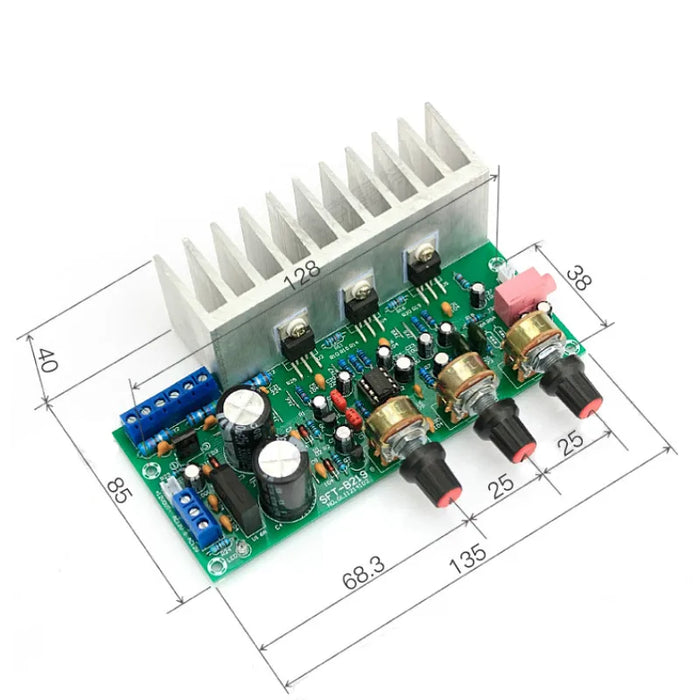

Board measures 135 x 85 x 40 mm:
Don't forget to check out our full range of amplifier breakout boards if this doesn't meet your needs. And as always, all orders receive free delivery.
