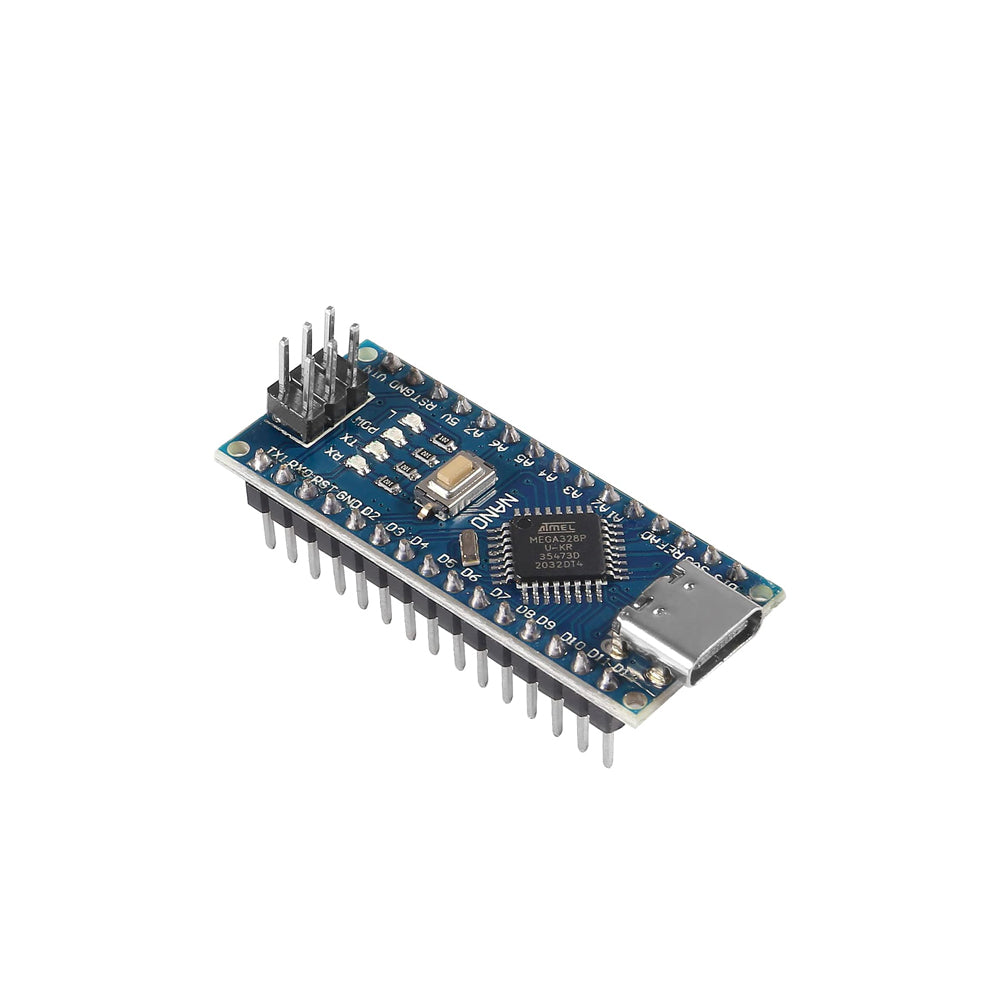

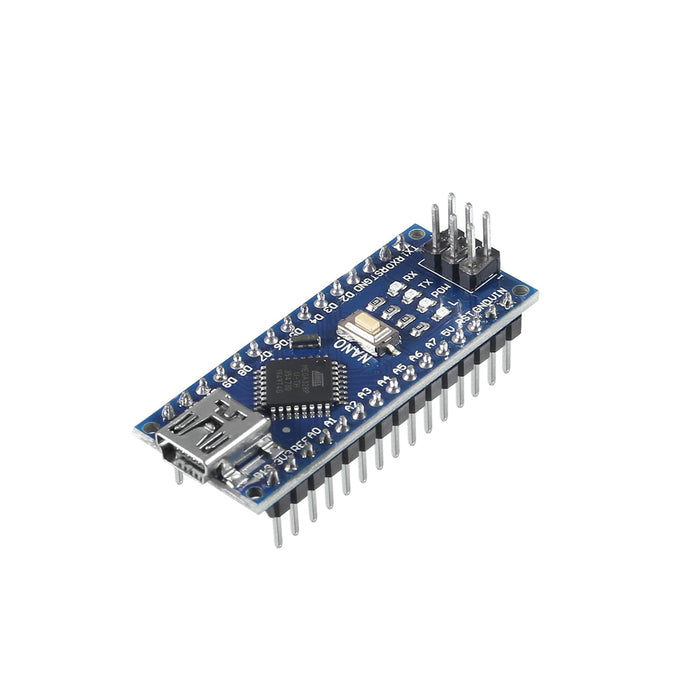

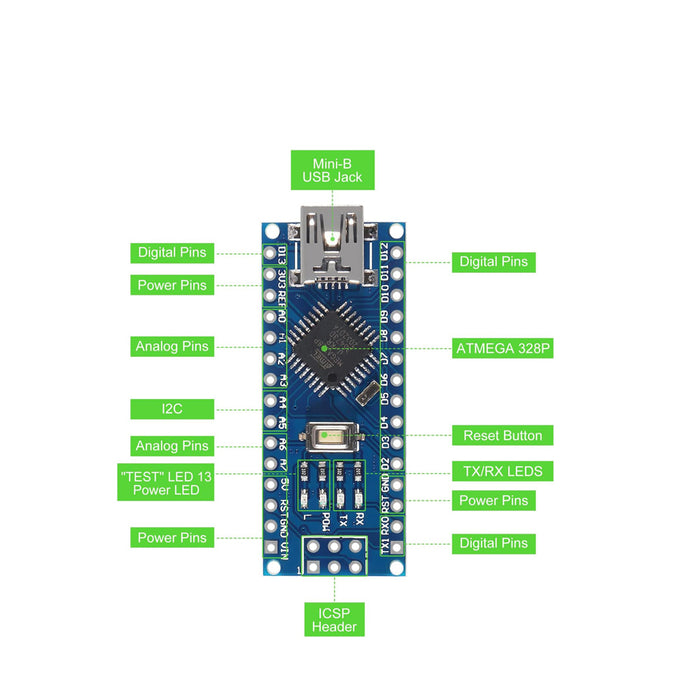

Arduino Nano v3.0 Compatible Boards - Various Options
Now available from PMD Way are these useful and compact Arduino Nano-compatible development boards, with free delivery. They provide the function of an Arduino Duemilanove in a much smaller, breadboard-friendly form factor - and you have the extra two analogue inputs thanks to the SMD version of the ATmega328.

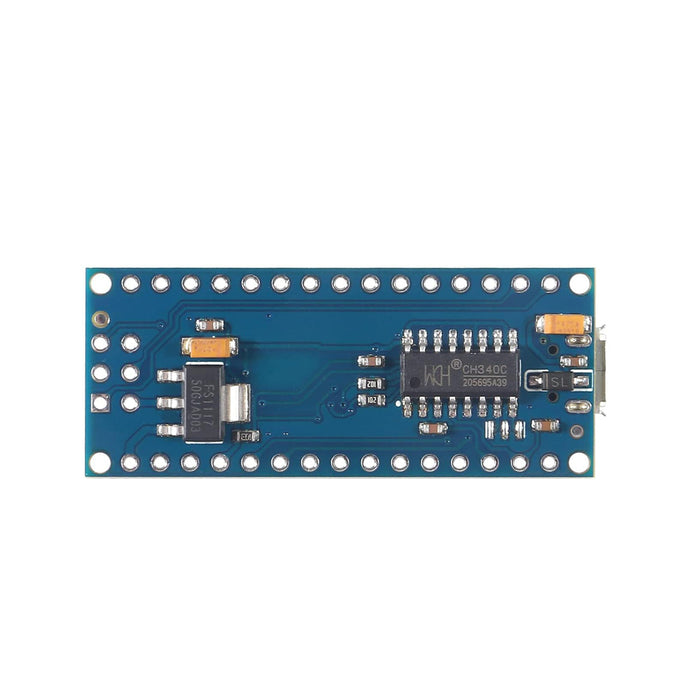

These Nano-compatibles use the CH340G serial to USB chip instead of the older FTDI chip. This works perfectly as a USB-serial just like the FTDI chip does, but is cheaper. We have tested this and have links for the drivers below.

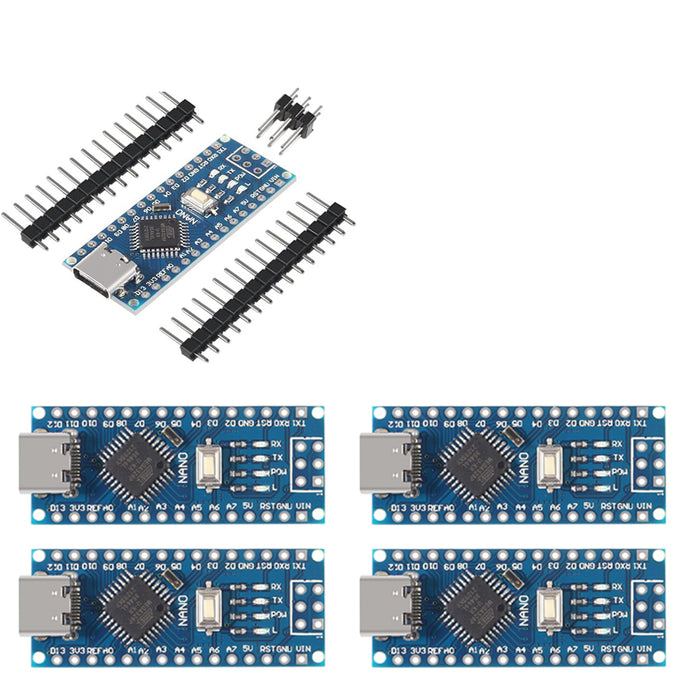

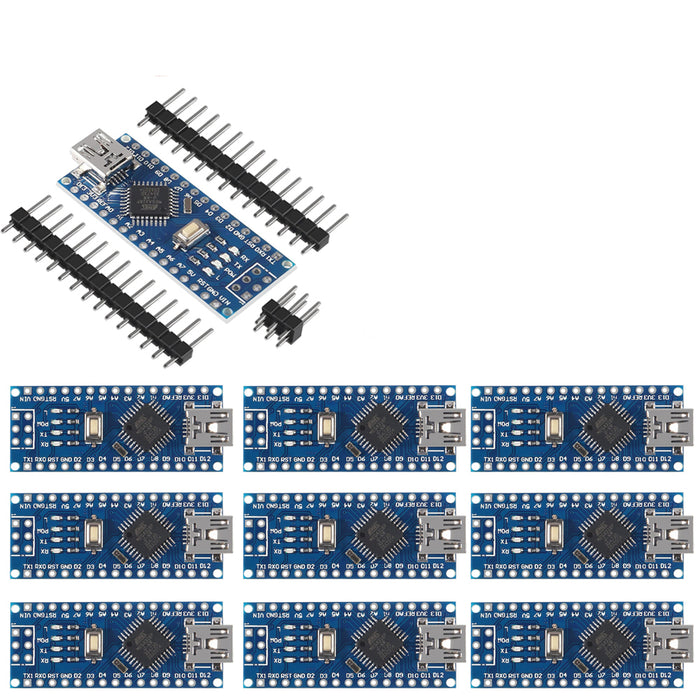

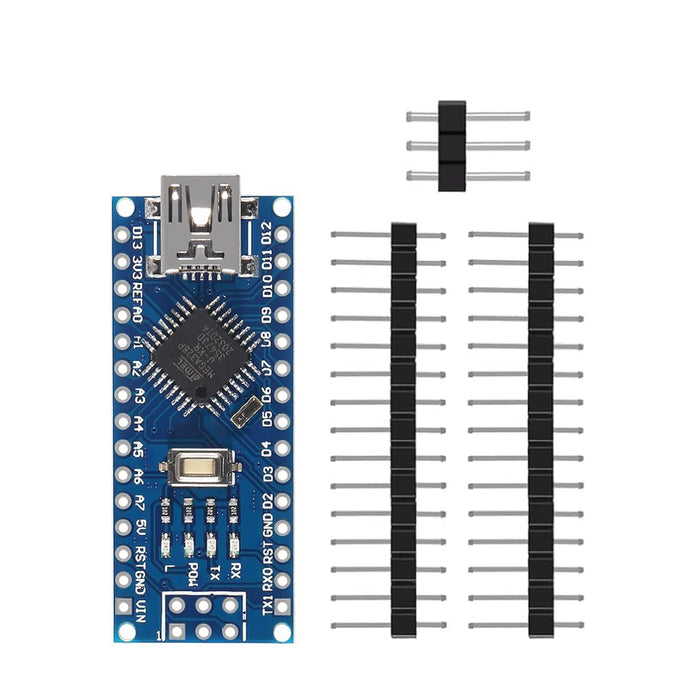

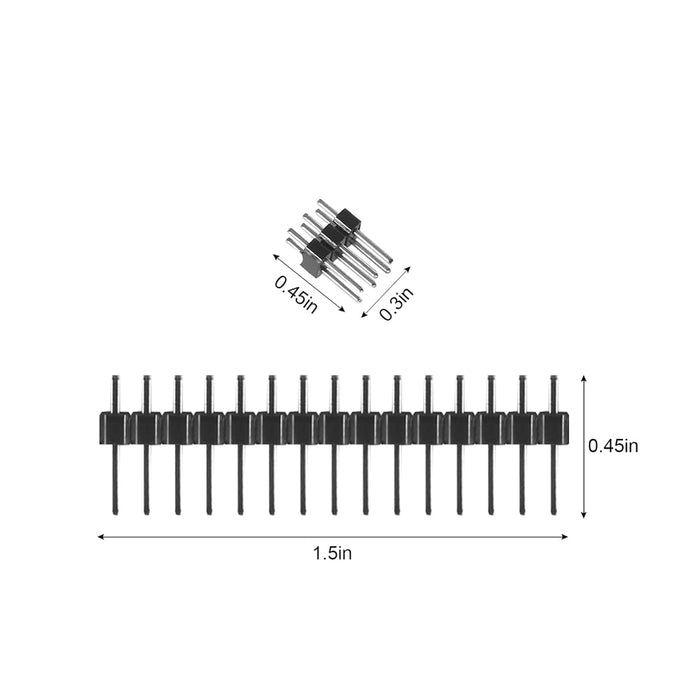

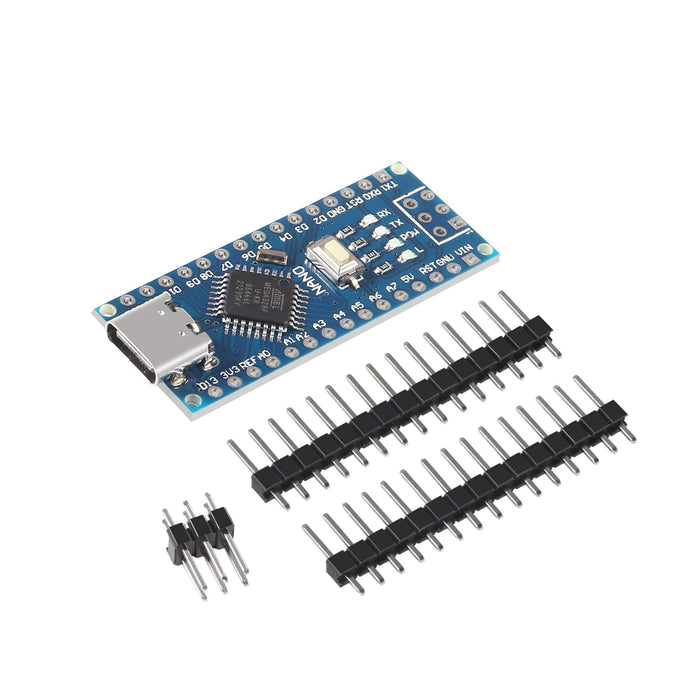

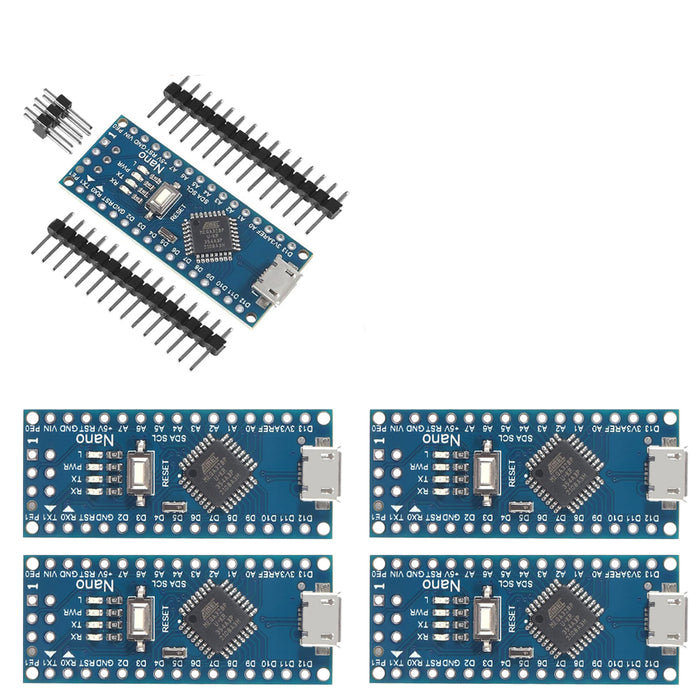

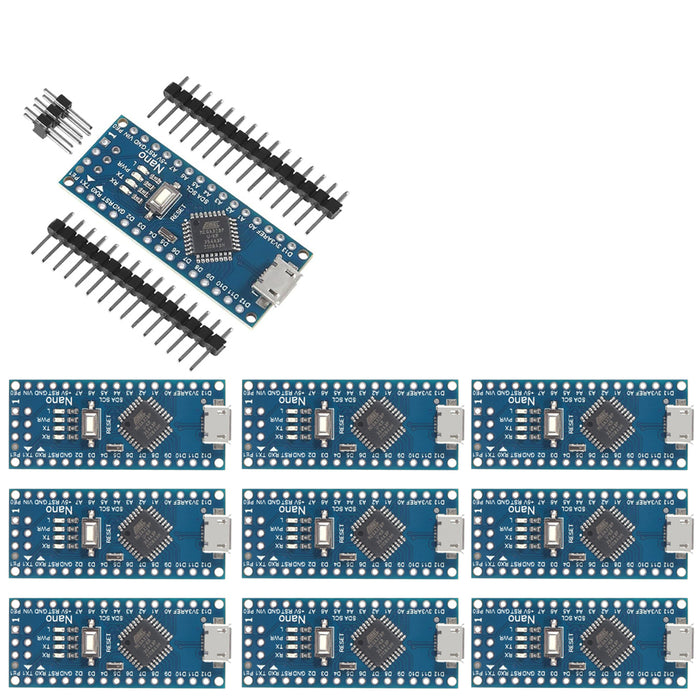

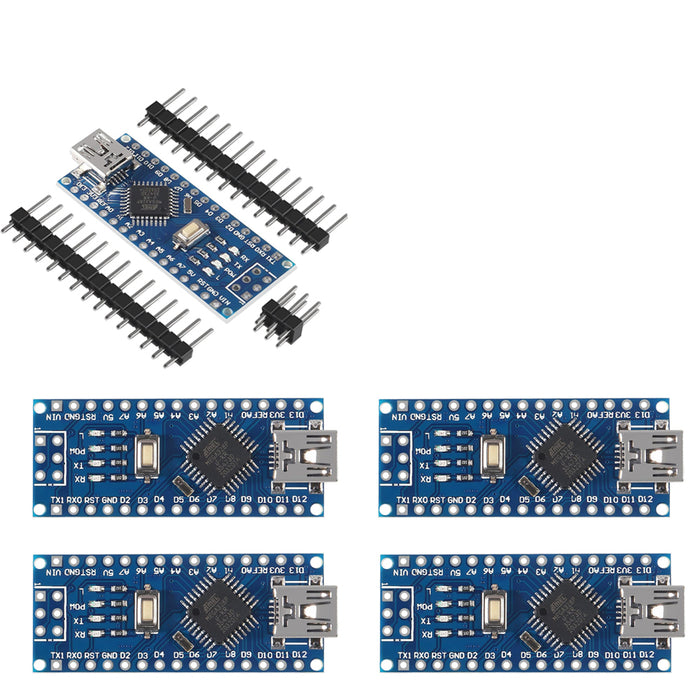

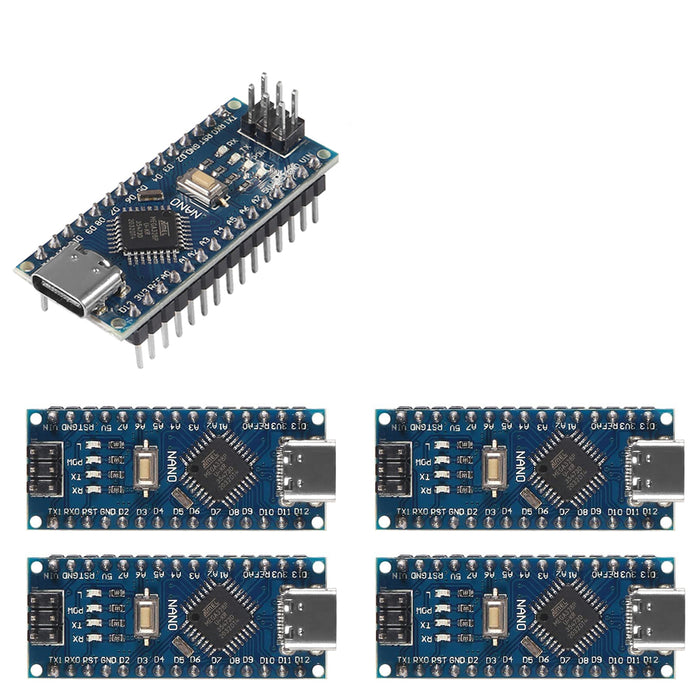

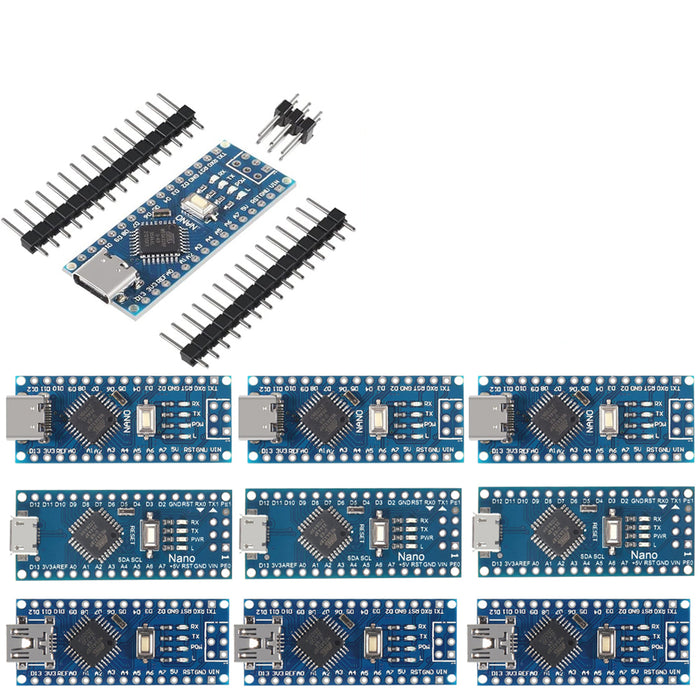

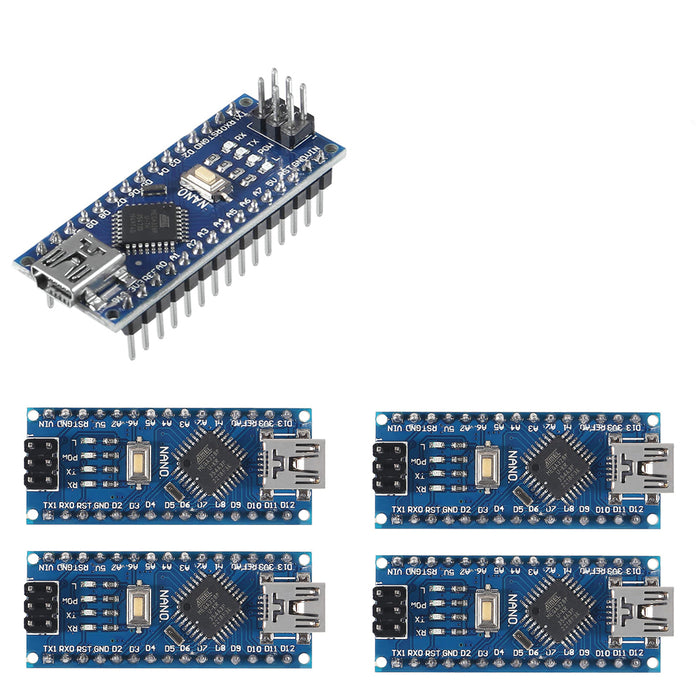

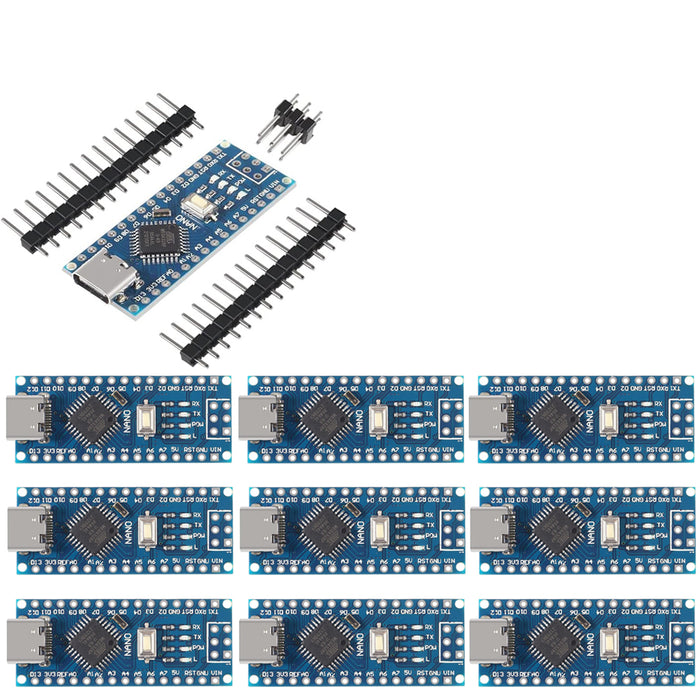

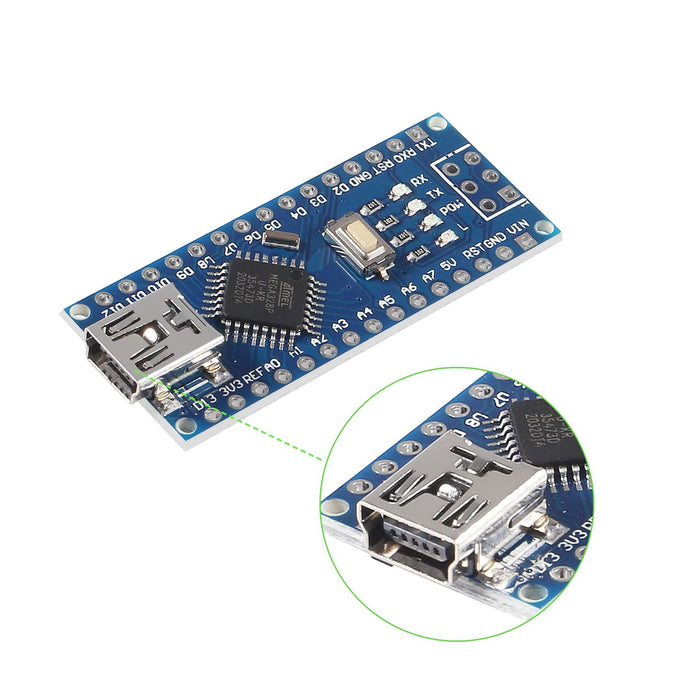

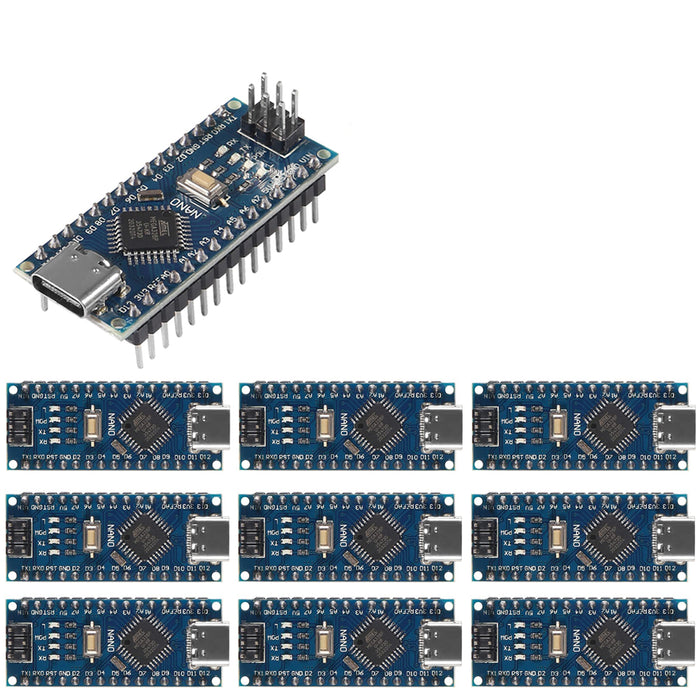

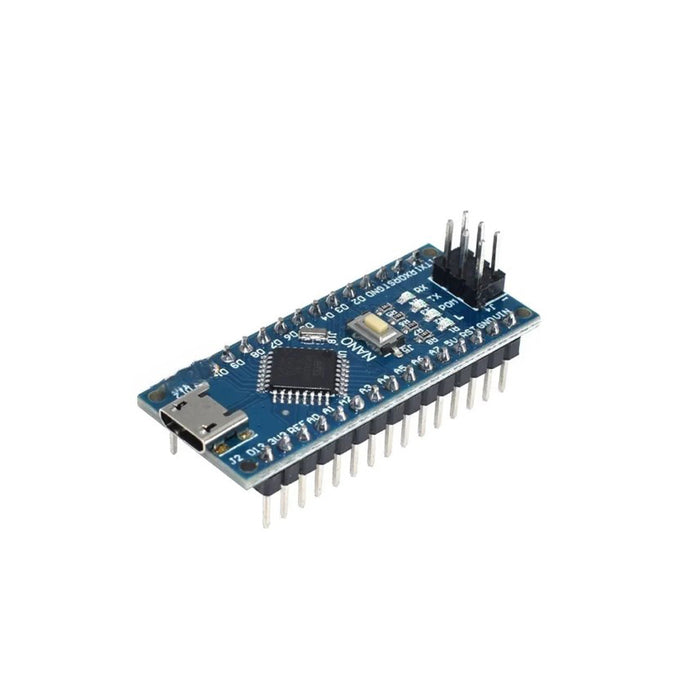

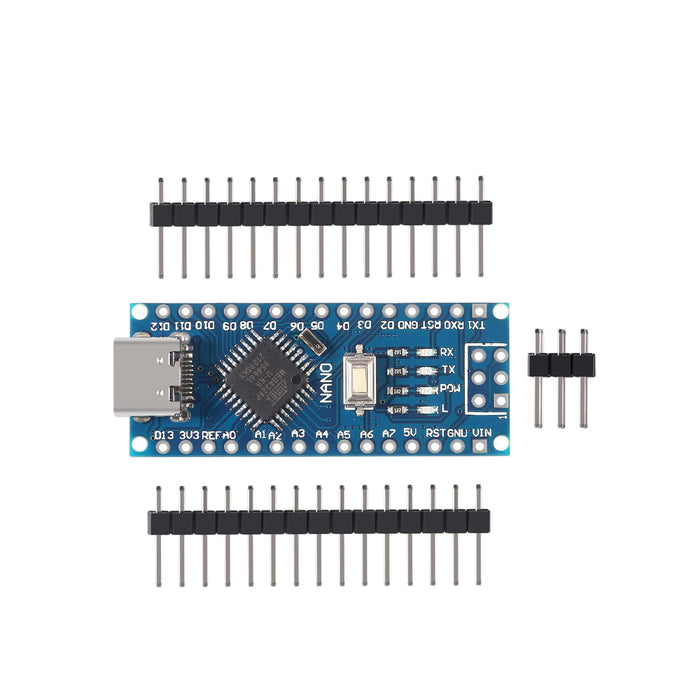

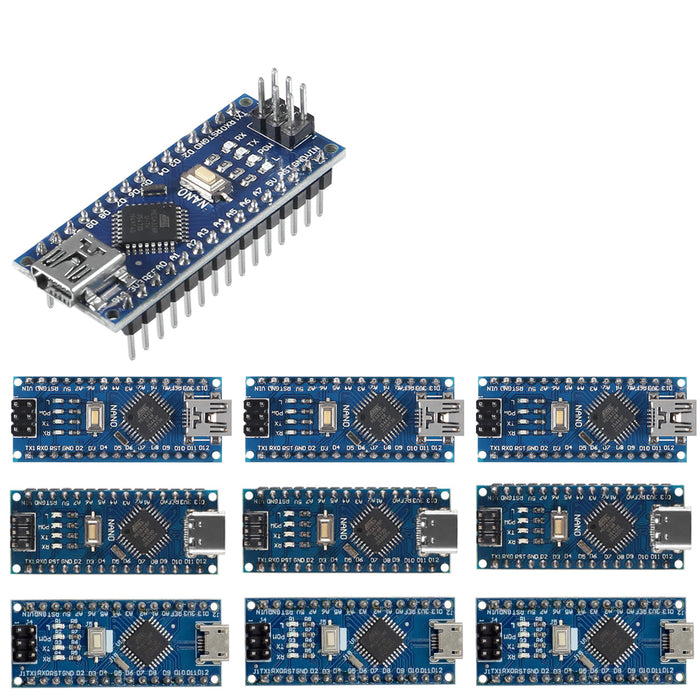

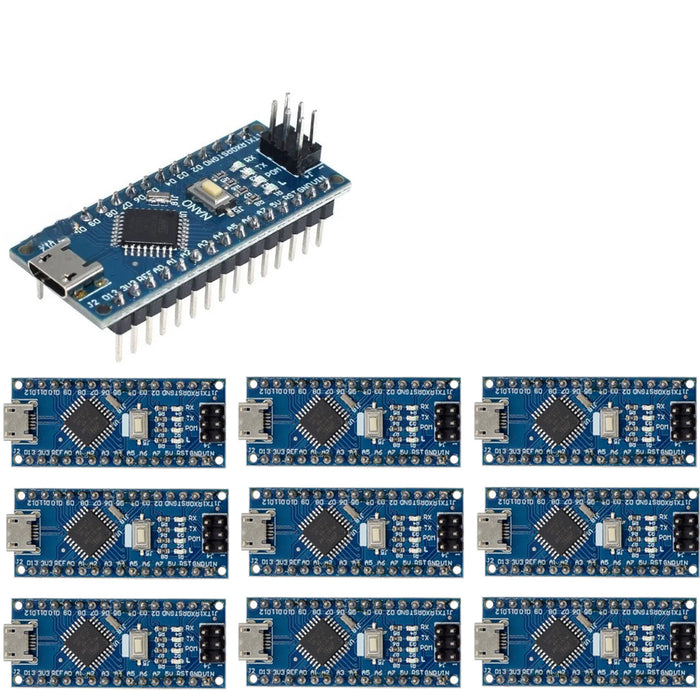

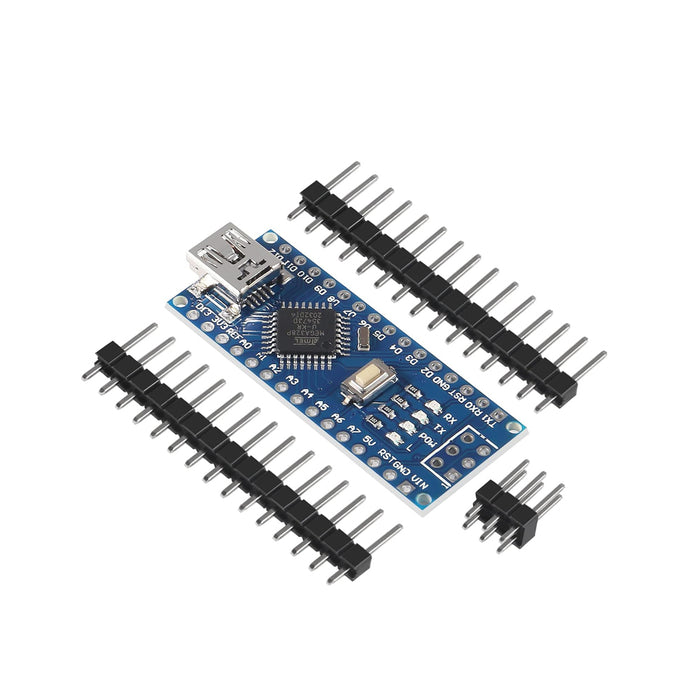

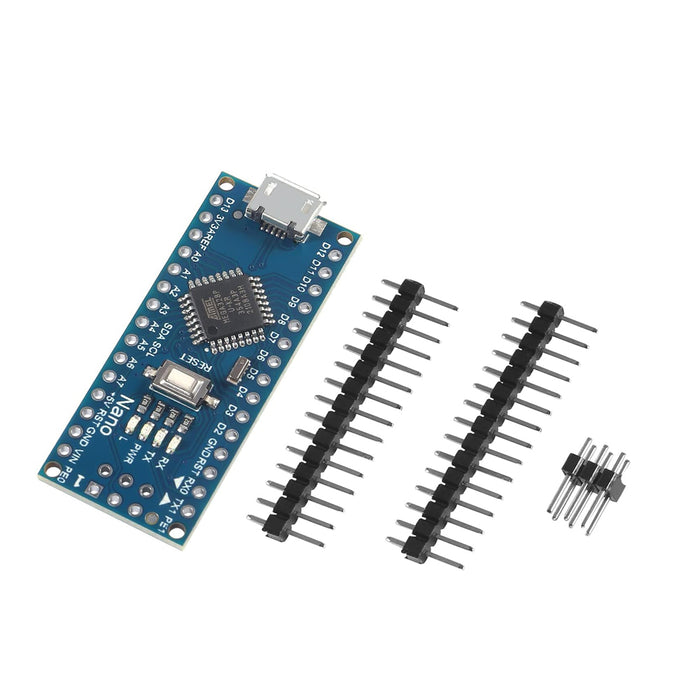

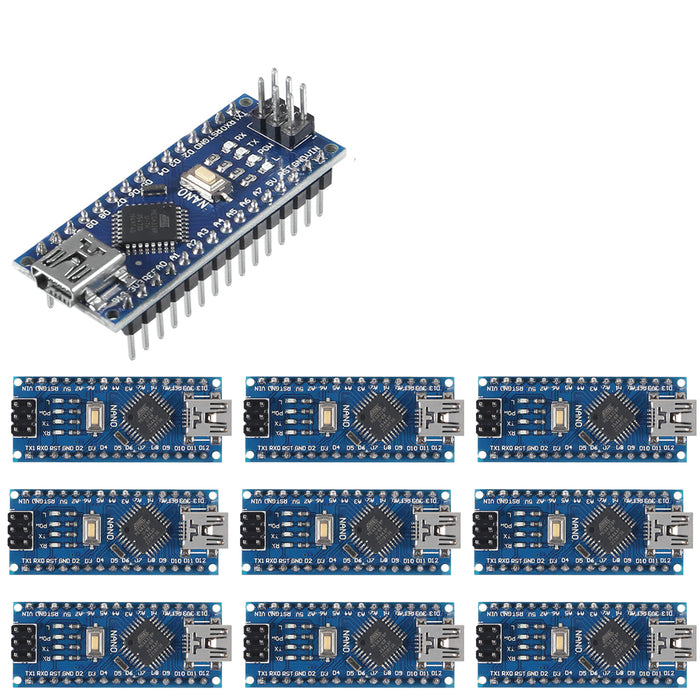

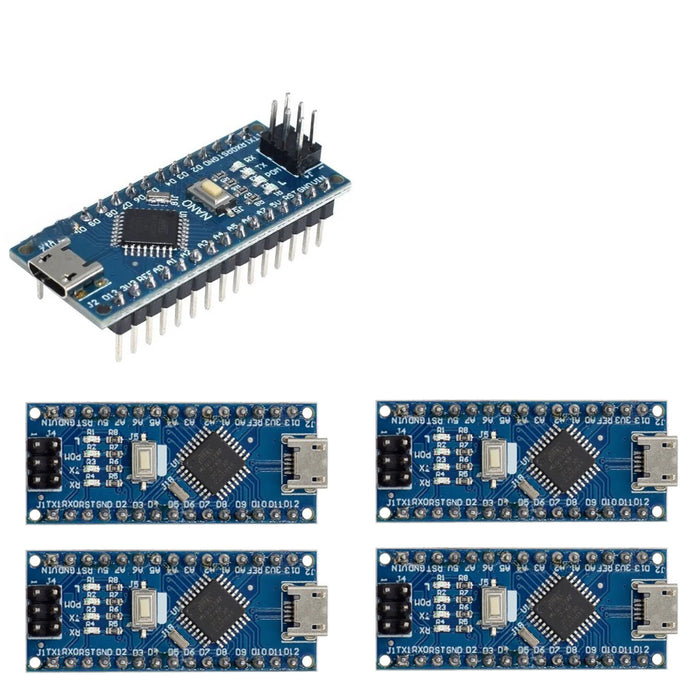

Use the options menu to select your choice of USB port (micro USB, mini USB or USB C) and whether you need the inline header pins loose with the board, or pre-soldered).
USB Drivers:
Click here for our CH34X USB driver download and installation guide.
Specifications:
- Microcontroller Atmel ATmega328
- Operating Voltage (logic level) 5 V
- Input Voltage (recommended) 7~12 V
- Input Voltage (limits) 6-20 V
- Digital I/O Pins 14 (of which 6 provide PWM output)
- Analog Input Pins 8
- DC Current per I/O Pin 40 mA
- Flash Memory: 32 KB of which 2 KB used by bootloader
- SRAM: 2 KB
- EEPROM: 1 KB
- Clock Speed 16 MHz

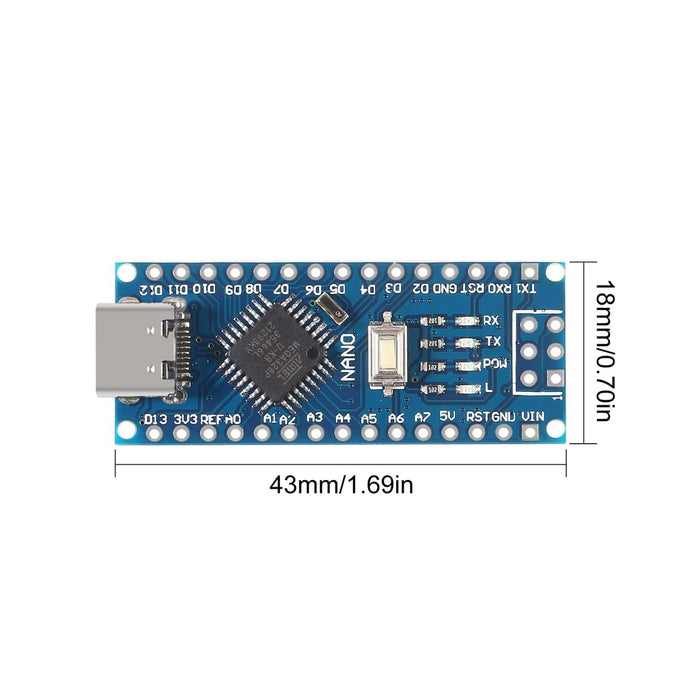

- Dimensions 0.73" x 1.70"
- Length: ~43 mm
- Width: ~18.5 mm
Don't forget to check out our full range of Arduino-compatible boards if this doesn't meet your needs. And as always, all orders receive free delivery.
