BMP390 - Precision Barometric Pressure and Altimeter - STEMMA QT / Qwiic
$23.95
SKU 40004816

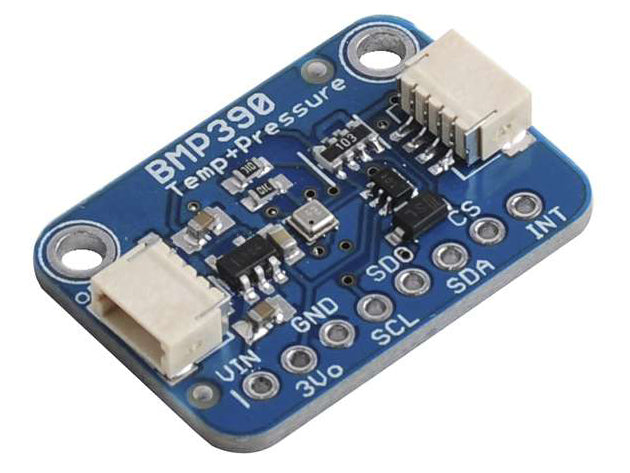

Now available from PMD Way is the excellent Bosch BMP390 - Precision Barometric Pressure and Altimeter mounted on assembled module for ease of use.

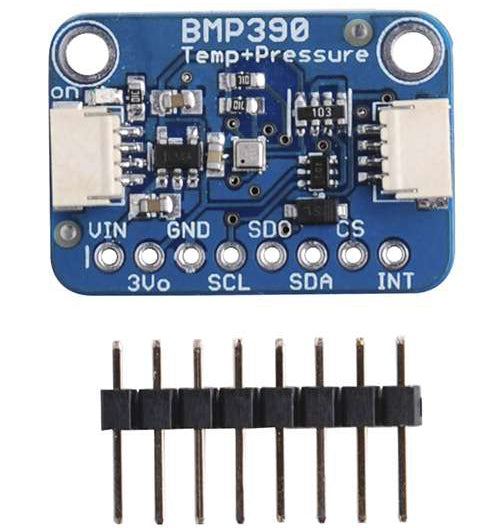

Free delivery, worldwide. Board has standard 0.1"/2.54mm PCB pads and included inline header pins for interface, and also fitted with connectors compatible with Qwiic and STEMMA QT systems. Two short I2C four-pin cables are also included.
Specifications:
|
Operation range (full accuracy)
|
Pressure: 300…1250 hPa
|
|
Supply voltage VDDIO
Supply voltage VDD |
1.2 V … 3.6 V
1.65 V … 3.6 V |
|
Interface
|
I²C and SPI
|
|
Average typical current consumption (1 Hz data rate)
|
3.2 μA @ 1 Hz
|
|
Absolute accuracy pressure (typ.)
P=300 ...1100 hPa (T=0 ... 65 °C) |
±0.50 hPa
|
|
Relative accuracy pressure (typ.)
P=700…1100 hPa (T=25…40°C) |
±0.03 hPa
(equivalent to ±25 cm) |
|
RMS noise in pressure
lowest bandwidth, highest resolution |
0.02 Pa
|
|
Temperature coefficient offset (25°…40°C at 900 hPa)
|
±0.6 Pa/K
|
|
Long-term stability (12 months)
|
±0.16 hPa
|
|
Solder drift
|
< ±0.8 hPa
|
|
Maximum sampling rate
|
200 Hz
|
More information:
- Arduino library
- Use with python and derivatives
- BMP390 datasheet
- Open-source design files
