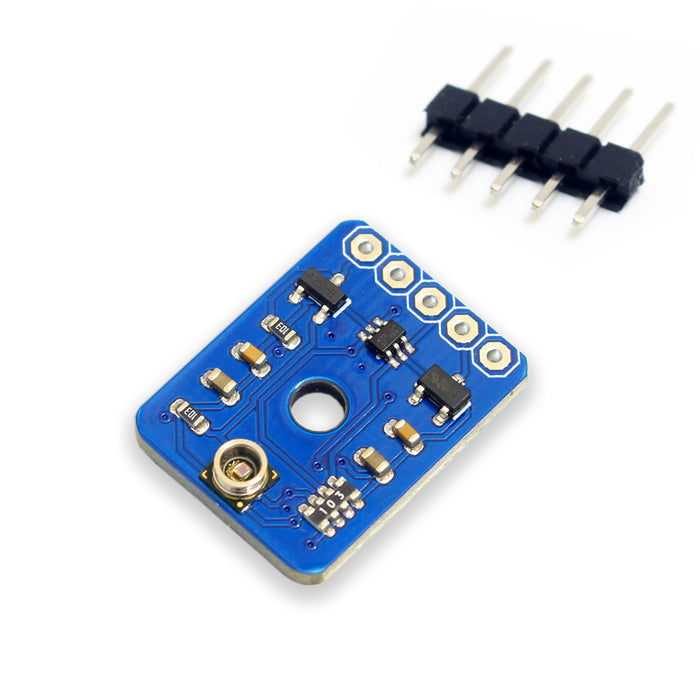

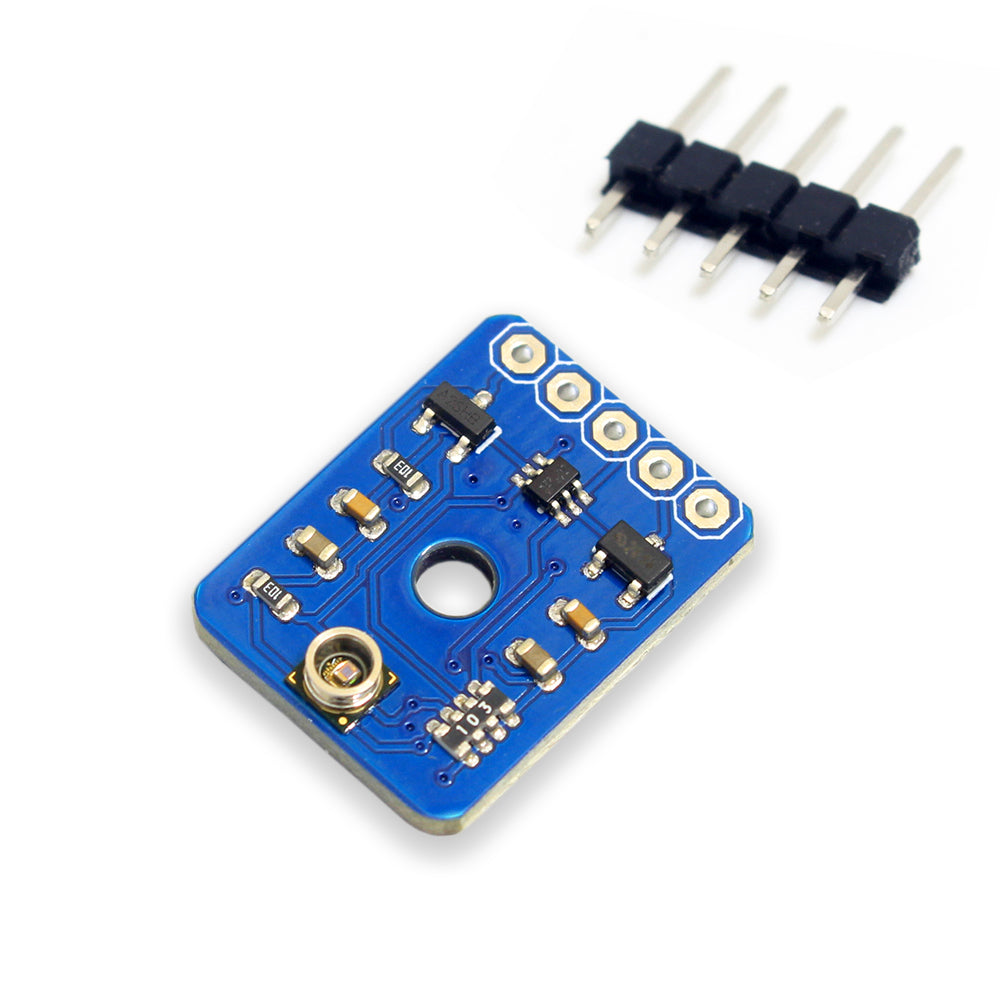

BMP585 High Precision Barometric Pressure Module
Now available from PMD Way is the BMP585 High-Precision Digital Barometric Pressure Sensor Module with free delivery.
The BMP585 is a high-performance, low-power digital barometric pressure sensor module based on Bosch Sensortec's advanced MEMS technology. It is designed for applications requiring high-precision pressure and temperature measurements. Featuring ultra low noise, a wide operating voltage range, and multi-protocol digital interfaces, this module is suitable for various scenarios, including drones, indoor navigation, weather stations, and smart wearable devices.
Specifications:
- Pressure Measurement Range - 300 hPa to 1250 hPa
- Temperature Measurement Range - -40°C to +85°C
- Absolute Pressure Accuracy - ±30 Pa (typical, extended range)
- Temperature Accuracy - ±0.55°C (typical)
- Output Data Rate (ODR) - 0.125 Hz to 240 Hz (NORMAL mode)
- Interface Protocol - I²C (up to 1 MHz)
- Supply Voltage - VDD: 3.3 V to 5 V
- Power Consumption - 1.3 μA (low-power mode, 1 Hz)
- FIFO Capacity - 32 frames (pressure or temperature only) or 16 frames (pressure + temperature)
- Operating Temperature Range - -40°C to +85°C
Inline headers are included but not soldered to the board.
More information:
- Download the Arduino library
- Micropython library
