TP4056 Mini USB Single Cell Charger - 5 Pack
These TP4056 mini USB charger modules from PMD Way are the perfect tool for charging single cell 3.7V 1 Ah or higher LiPo cells such as 16850s.
Based around the TP4056 charger IC this module will offer 1A charge current then cut off when finished.
Furthermore when the battery voltage drops below 2.4V the protection IC will switch the load off to protect the cell from running at too low of a voltage - and also protects against over-voltage and reverse polarity connection (it will usually destroy itself instead of the battery) however please check you have it connected correctly the first time.
Modules sold in packs of five. Free delivery, worldwide.
Using the module:

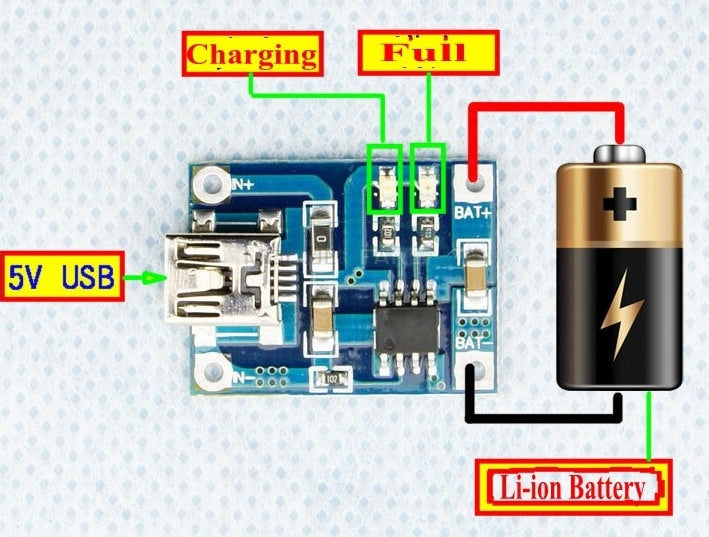

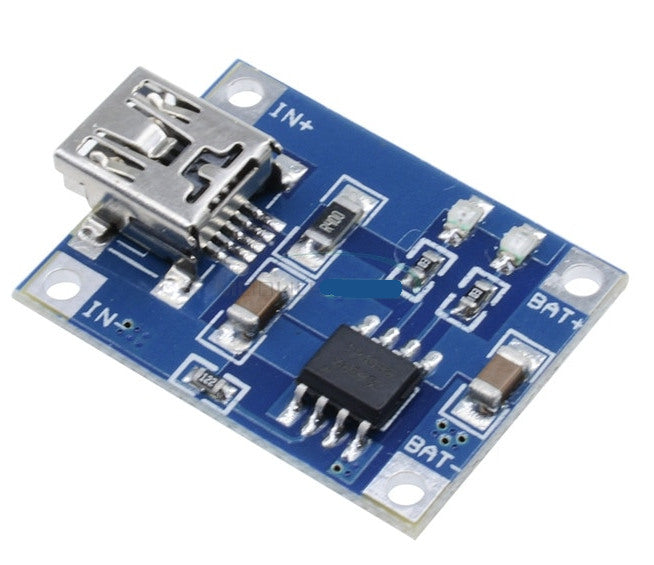

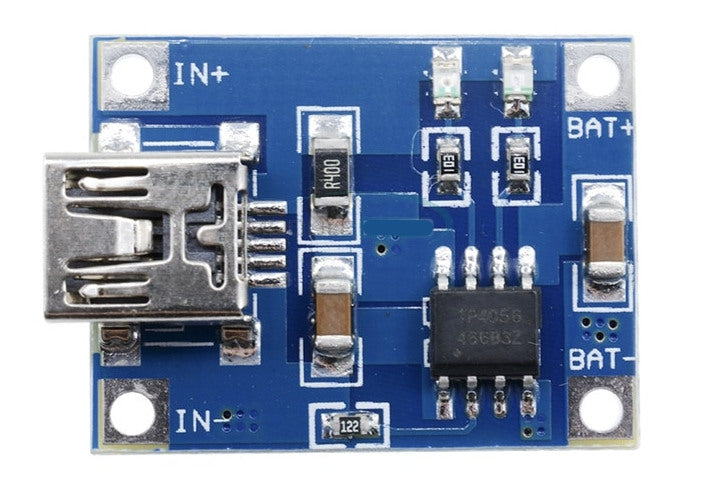

- Connect mini USB cable for power, or 5V DC to pads marked IN+ and IN- on left-hand side of the module
- Connect cell to charge to B+/B- pads on right-hand side of module
- A load (something for the battery to power) can be connected to the OUT+/OUT- pads on the right-hand side
- Important! Disconnect load when charging
- The red LED indicates changing in progress, green LED indicates charging has finished.
- Never charge your battery at a rate greater than 1C.
Specifications:
- Input voltage: 5V via mini USB or solder pads on left-hand side of module
- Full charge voltage: 4.2V
- Charging current - 1A by default. However you can change this by changing the 1k0 resistor next to the "IN-" pad the bottom-left of the board. See the Rprog table on page three of the data sheet for different values and matching charging currents
- Download the TP4056 data sheet (.pdf)
Don't forget to check out our full range of power products if this doesn't meet your needs. And as always, all orders receive free delivery.
