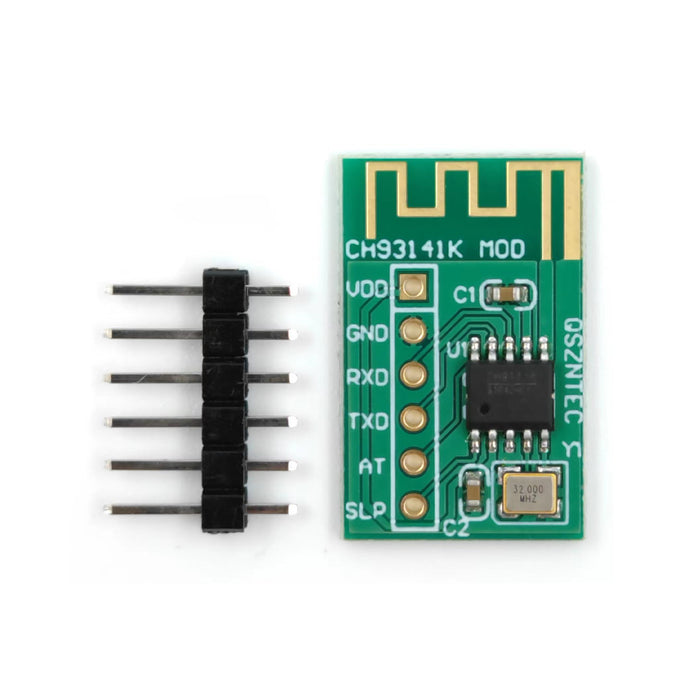

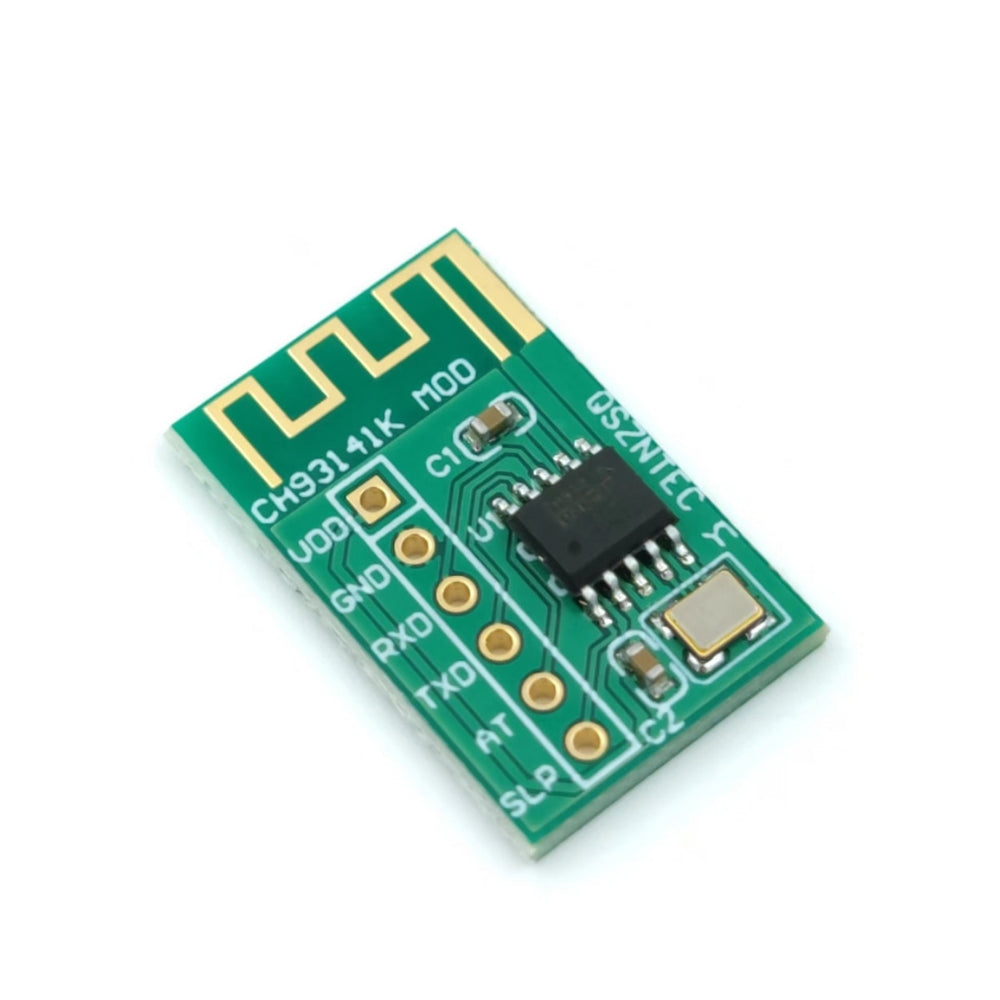

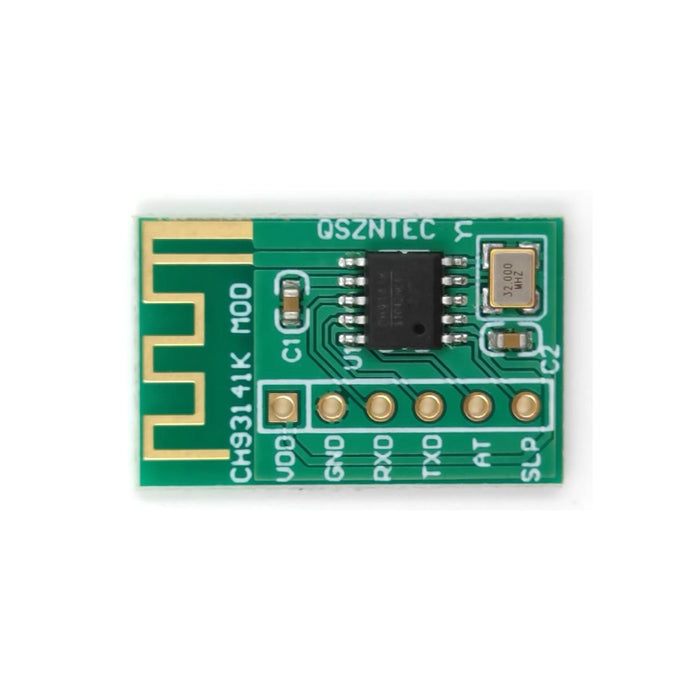

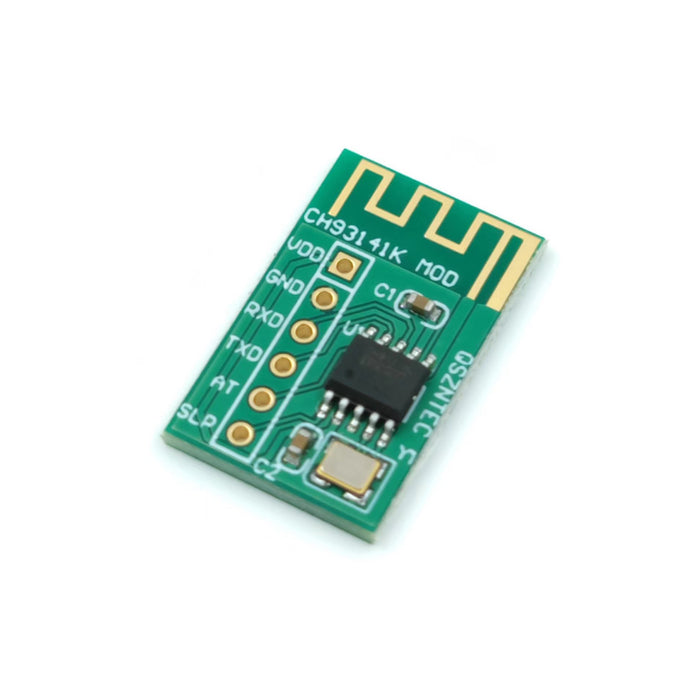

CH9141 Bluetooth LE Transparent UART Module

Now available from PMD Way are these compact and useful CH9141 Bluetooth LE Transparent UART Modules.

They can easily be used as a Bluetooth UART data passthrough, so you can access your microcontroller-based projects using the UART via Bluetooth.

Specifications:

• Supports broadcast mode, master mode and slave mode
• Supports serial port AT configuration and Bluetooth transmission configuration
• Provides Bluetooth virtual serial port driver on computer
• Compatible with existing serial port software and tools, without secondary development
• Supports Bluetooth host connection of Windows/Linux/Android/iOS and other systems
• Power off sleep current 0.3uA
• Transmission distance up to 100 meters, in reality when you take enclosures, walls, etc., into consideration the distance will be less.
• The transmission power is adjustable at 8 levels
• Supports 3.3V and 2.5V working voltage
• Maximum communication baud rate of asynchronous serial port: 1Mbps
• The serial port supports 5/6/7/8 data bits and 1/2 stop bits
• The serial port supports odd, even, no verification, blank 0, flag 1 and other verification methods
• Support to obtain chip power supply voltage parameters
• 32K clock source can select external crystal oscillator
• Click here for more information about the CH9141 IC
