RJ11 RJ45 USB BNC LAN Network Cable Tester
$21.95
SKU 442346
Easily test RJ11 telephone, RJ45 Ethernet, and BNC cables with this great value network cable tester from PMD Way.
Simply connect the tester units to both end of your cable and the results are shown with the LEDs on the main unit. Maximum cable length for testin is just over 100 metres.
You can test:
- RJ-45, RJ-11, USB and BNC cables.
- Test installed wiring or patch cables.
- Tests shielded (STP) or unshielded (UTP) LAN cables.
- Test shields in USB cables.
- Can test from 2 remote points.
Features:
- Internal beeper provides audible annunciation of test results.
- BNC terminator 25/50 Ohm indications.
- Straight or crossover indications.

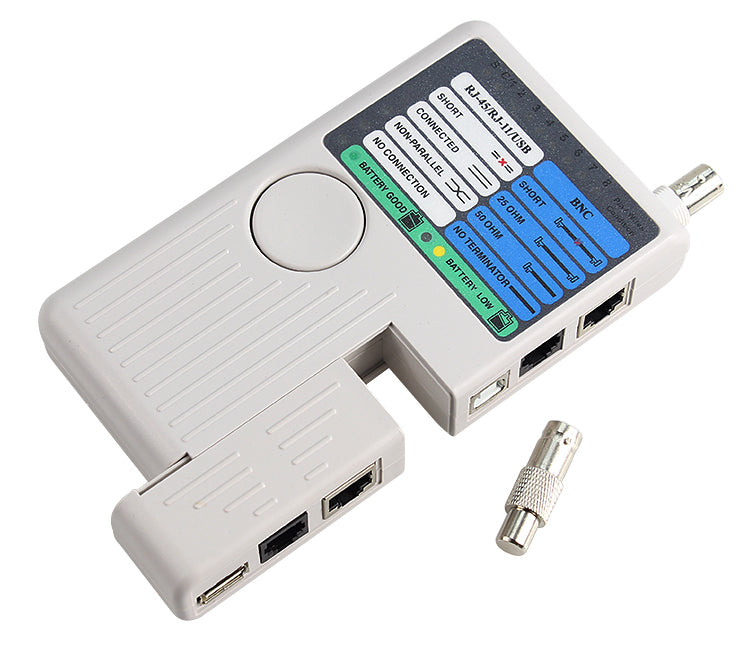

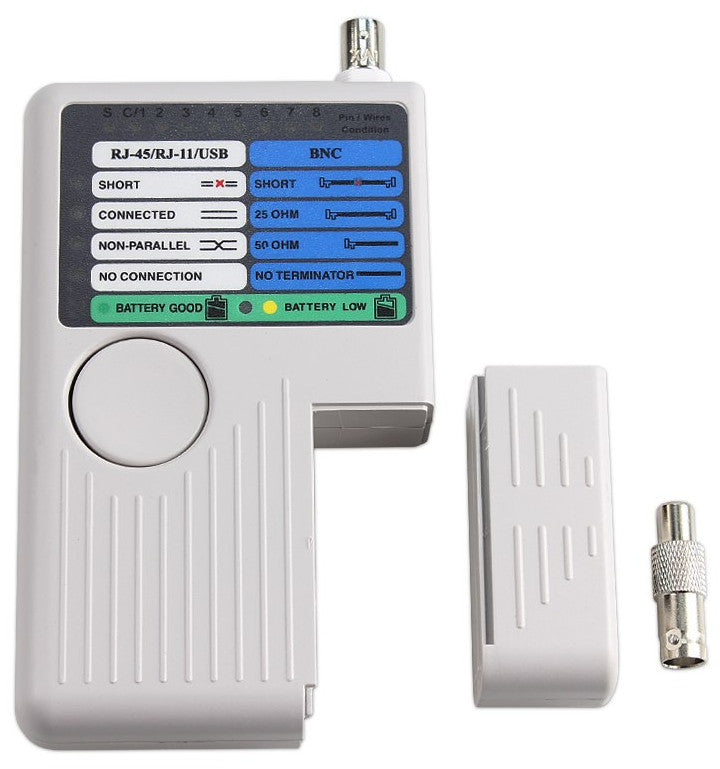

- LEDs indicate connections and faults of wire and pins.
- RJ-11/RJ-45 are equipped with 50u gold plating.
- Ergonomic portable handheld design.

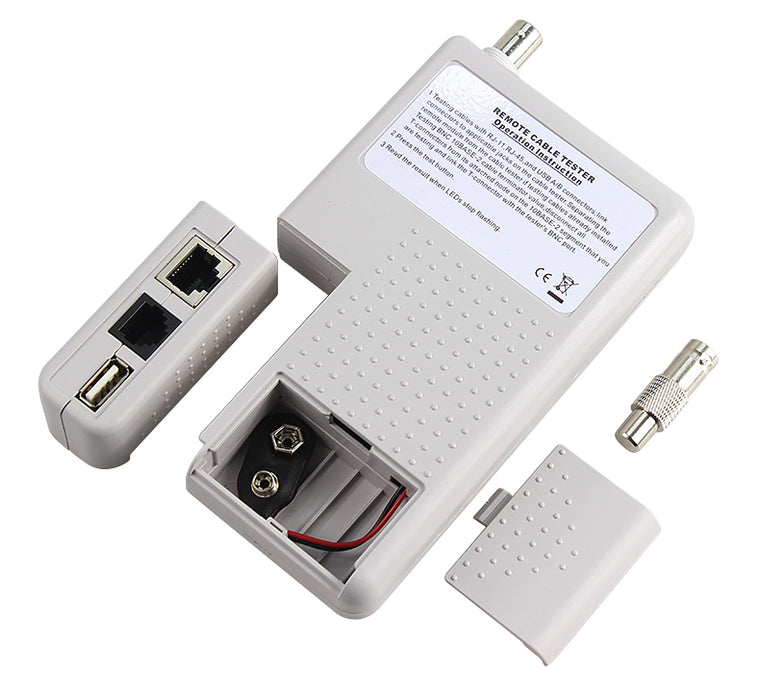

- Powered by a 9V Alkaline battery. (Not included)
- Convenient battery access.
- Low Battery Indicator.
- Simple one button test.
- Fast speed testing.

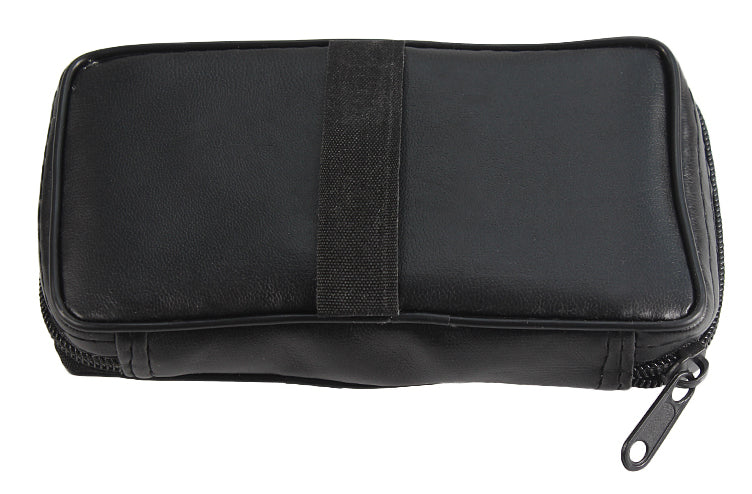

- Quality black pouch for carriage and storage.
Specifications:
- Cable Tested: UTP and STP LAN cables, terminated in RJ-45 male connectors (EIA/TIA 568); RJ-11 cables with male connectors, 2 to 6 conductors installed; USB cables with Type A flat plug on one end and type B square Plug on other end; BNC cables with male connectors
- Faults Indicated: No Connections, short circuit , Opens and Crossover
- Low Battery Indicator: LED lights to indicate low battery Power: 1 x 9 V 6F22 DC Alkaline Battery (Battery Not Included)
- Color: Grey
- Item dimensions: Appox. 162 x 85 x 25mm (6.38 x 3.35 x 0.98 inch)
- Item weight: 164g (Battery excluded)
- Package dimensions: 225 x 110 x 43 mm.
