DB15 Male and Female Breakout Board

Now available from PMD Way is this convenient DB15 Male and Female Breakout Board.

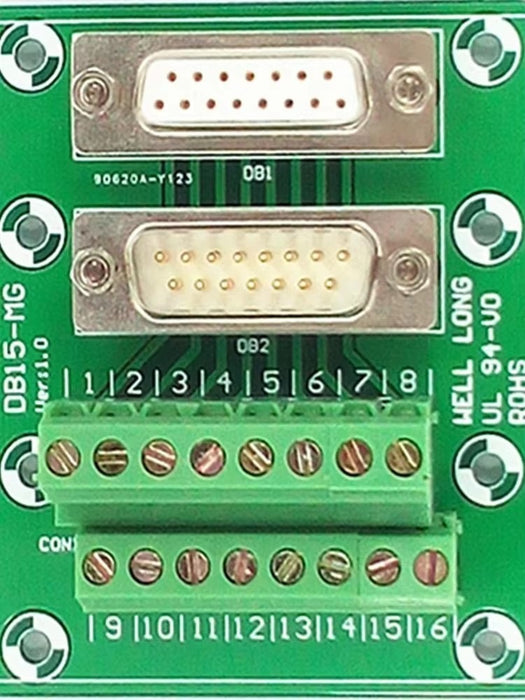

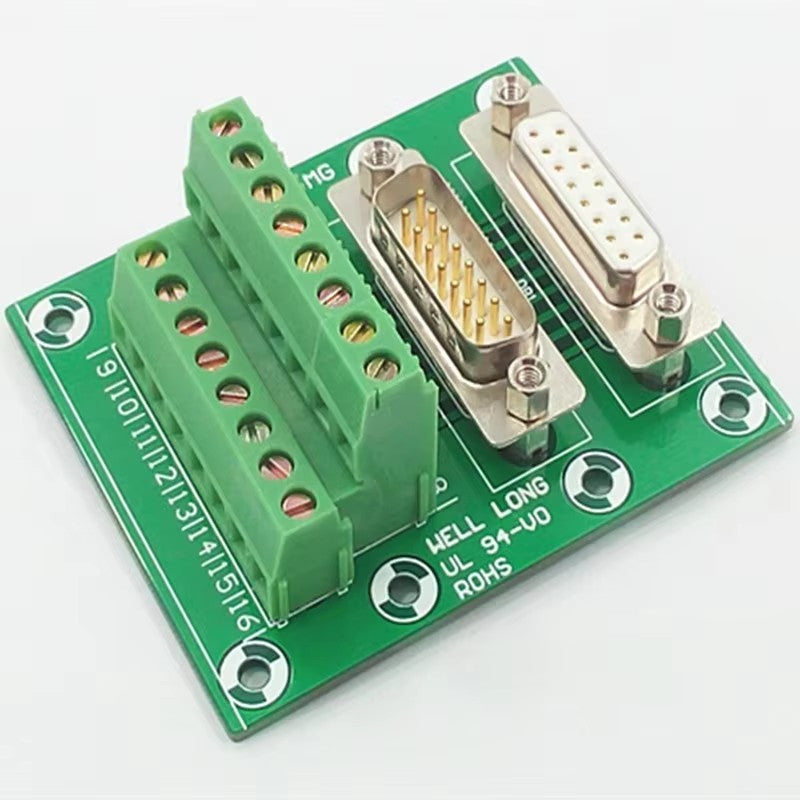

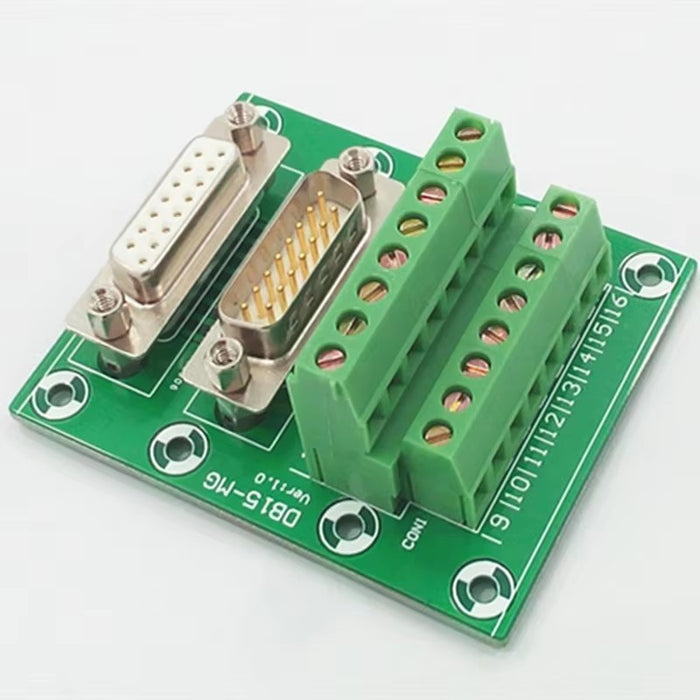

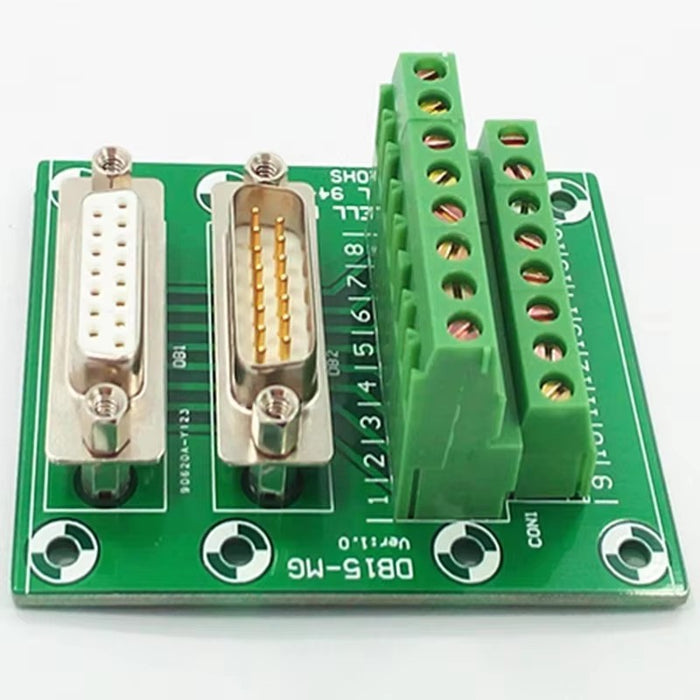

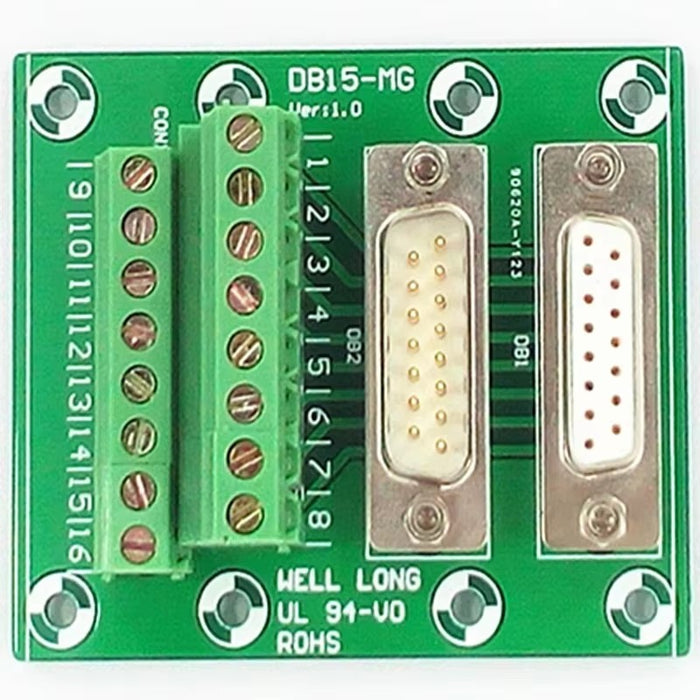

Cover both bases if needed thanks to the female and male connectors on the board, which are terminated at standard screw terminal blocks.

Specifications:

• Pitch 5mm/0.197" screw terminal block
• FR-4 fiber glass PCB, dual copper layers.

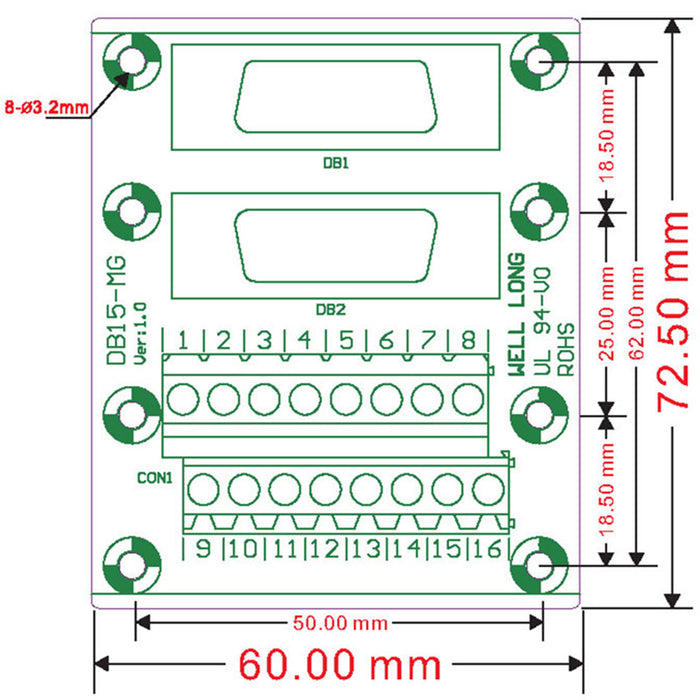

• Dimensions: 60 x 72.5 x 20mm (W x L x H)
• Rated voltage: 60V.
• Rated current: 1A / per pin.
• Operating Temperature: -20ºC to 50ºC

Terminal block specifications:

• Wire range - 26~16AWG.
• Strip length - 5mm.
• Screws - M2, steel, Cr3+ Zn plated.
• Torque - 0.2Nm (1.7Lb-In.)
• Pin header and Cage - Brass.

Don't forget to check out our full range of DB15 breakouts if this doesn't meet your needs. And as always, all orders receive free delivery.
