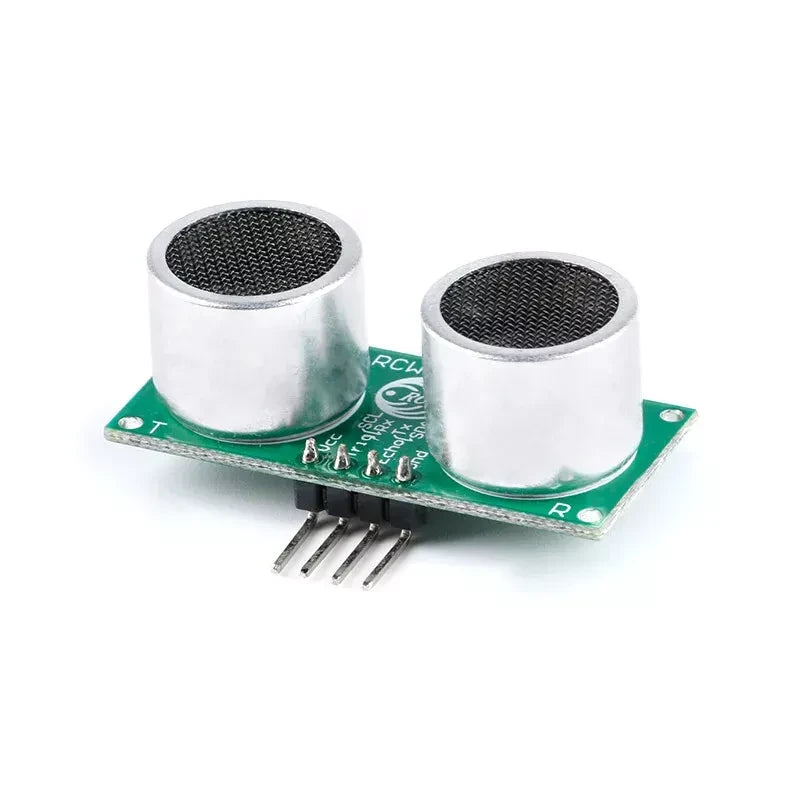

RCWL-1601 Ultrasonic Distance Sensor

Now available from PMD Way are these interesting RCWL-1601 Ultrasonic Distance Sensors.

Click here for ten packs.

Unlike the HCSR04 sensors, these newer models operate on both 3.3V and 5V DC - while using the same interface and code on your microcontroller.

Specifications:

• Operating voltage: 3.3~5V DC
• Operating current: 2.2mA
• Detection range: 2~450cm
• Working frequency: 40kHz
• Accuracy: +/-2%
• Detection angle: +/- 15 degrees
• Measurement period: 50mS
• Operating temperature: -10~90 degrees C

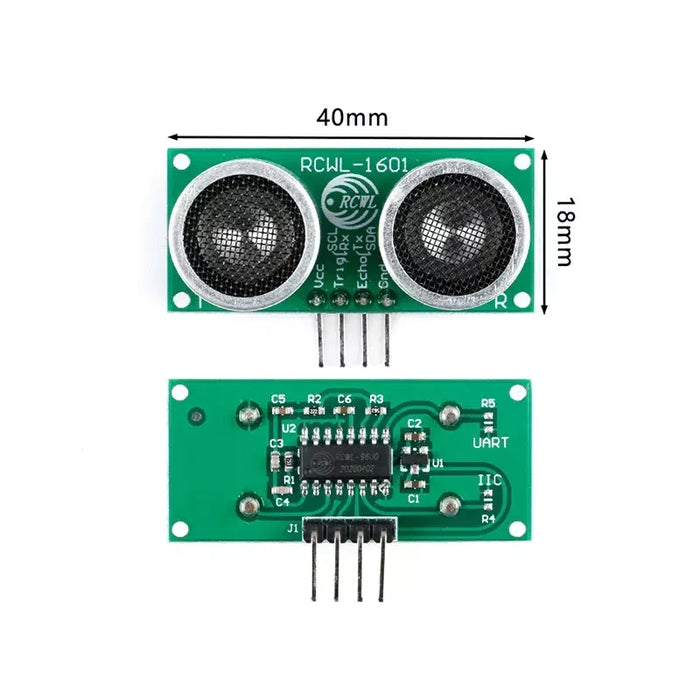

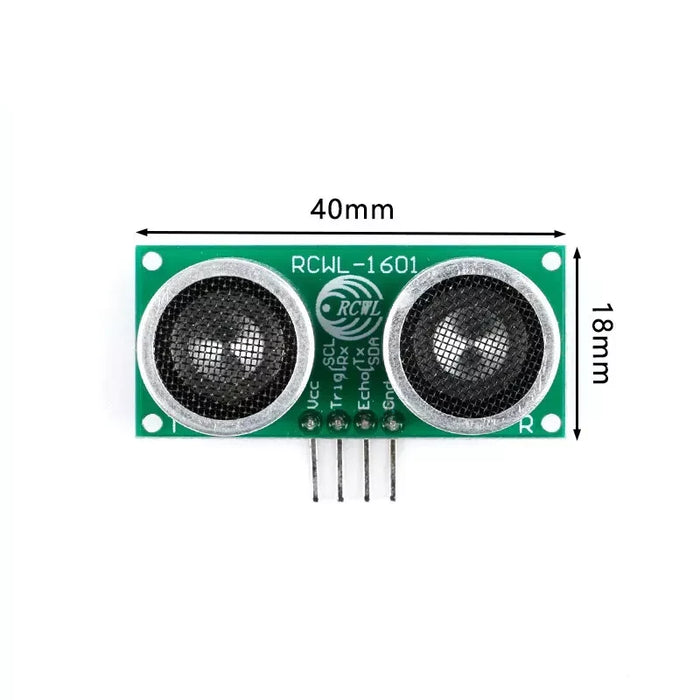

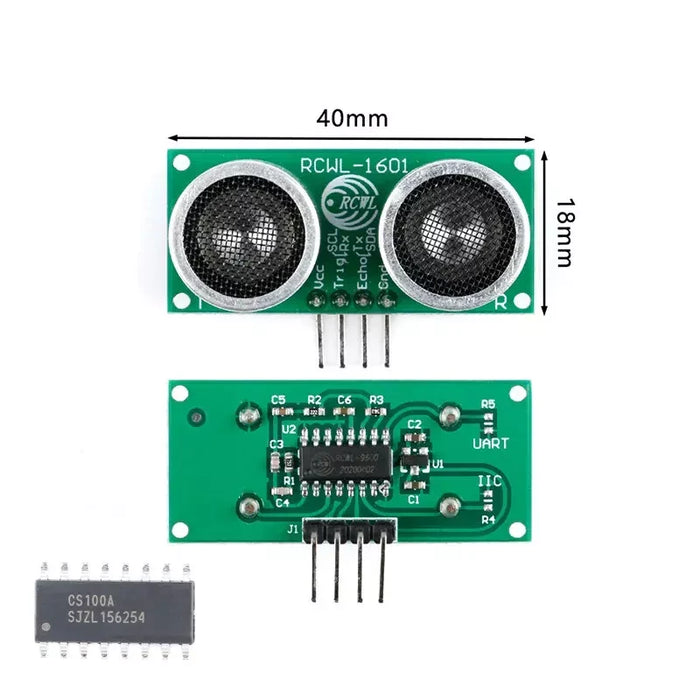

Dimensions:
