0.96" 80 x 160 Full Color LCD Module from PMD Way with free delivery worldwide
0.96" 80 x 160 Full Color LCD Module from PMD Way with free delivery worldwide

0.96" 80 x 160 Full Color IPS LCD Module

$19.95
SKU 88445884

If you're tired of boring blue and yellow displays - order these 0.96" 80 x 160 Full Color LCD Modules from PMD Way.

Yes, full color. Easy to use with Arduino and other platforms with an SPI bus. They use the common ST7735S driver IC so you're covered with drivers and example code.

Free delivery, worldwide.

And thanks to the IPS standard display - the viewing angles are much better than regular displays so you can easily read this one from almost any direction.

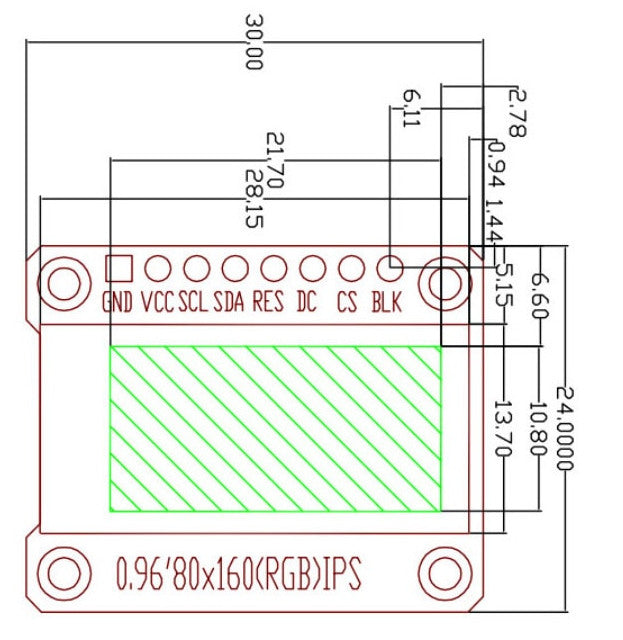

Dimensions:

0.96" 80 x 160 Full Color OLED Module from PMD Way with free delivery worldwide

Specifications:

  • LCD Size: 0.96 inches
  • Dot Matrix Size: 80 x 160 (Display direction can be adjusted, horizontal screen and vertical screen are ok)
  • LCD Color: 65K Full Color
  • Hardware Interface - SPI interface
  • Driver IC - ST7735S
  • Operating Temperature: -20 ~ 70 C
  • Working Power Supply: 3.3V
  • Display Area - 10.8 x 21.696mm
  • Size -13.3 x 27.95mm

More information:

Arduino:

Visit our new Arduino tutorial.

Raspberry Pi:

Example code for Raspberry Pi users

Don't forget to check out our full range of Raspberry Pi products if this doesn't meet your needs. And as always, all orders receive free delivery.
