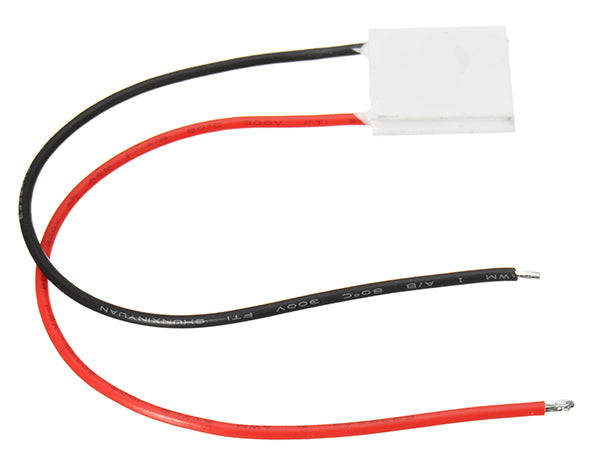

20mm Peltier Module 5V 3A

These Peltier modules from PMD Way use the "Peltier" effect to transfer heat. This essentially creates a "cold side" and a "hot side" on the unit.

Applications include biomedical instruments, consumer products like thermoelectric cooling water coolers, thermoelectric refrigerator, industrial equipment, laboratory and scientific instruments etc.

You must use a heatsink with Peltier Modules if using for more than two seconds.

Specifications:

• Dimensions: 20 x 20 x 3.6mm
• Attached wiring around 100mm in length
• Resistance: 3.0~3.3Ω
• Particles: 127
• △TmaxQC=0(C): 68°C
• Operating voltage 5V DC (Vmax: 6V)
• Cooling power: Qcmax 10.3W
• U=standard(V): 5V
• Pressure=kg/cm2: 98N/cm2
• Operating temperature: -55～83°C

Don't forget to check out our full range of Peltier modules if this doesn't meet your needs. And as always, all orders receive free delivery.
