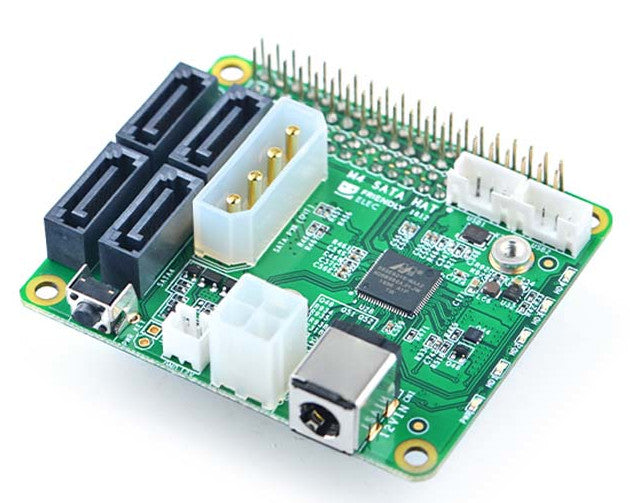

NanoPi M4 6Gbps SATA x 4 HAT for Raspberry Pi
If you need or want to access up to four external SATA hard drives to your Raspberry Pi - then you need the NanoPi M4 6Gbps SATA x 4 HAT from PMD Way.
In conjunction with your own ATX power supply, this HAT allows for up to four SATA hard drives to connect to your Pi. Drive speed can be 1.5, 3 or 6 Gbps.
The HAT includes four LEDs to show each drive's status. The HAT is powered by your own ATX power supply, and has an onboard 12 to 5V DC converter rated for 5V at up to 8A current.
Furthermore there are two JST-PH USB host connectors, along with a DC power input socket and a JST-PH connector for an optional cooling fan.
All control signals travel through the 40-way GPIO connector.
Includes free delivery, worldwide.
HAT includes:
- Four mounting bolts
- heatsink
- two SATA drive cables
- SATA power cable for 1 or 2 drives
Hardware Specifications:

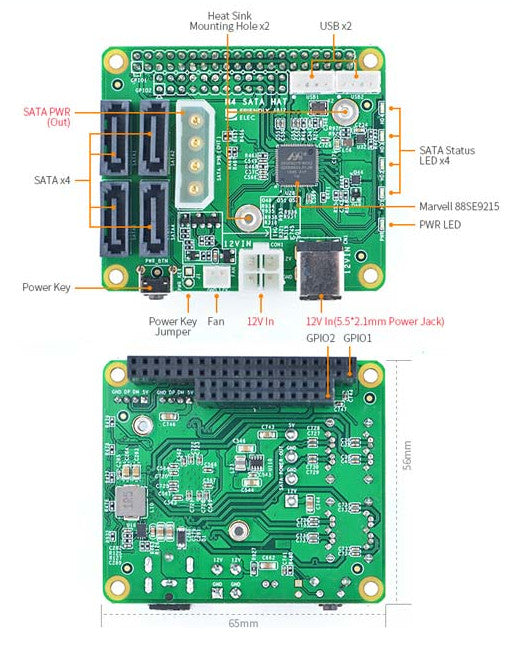

HAT layout:
