Door Flush Mount Security Reed Switch

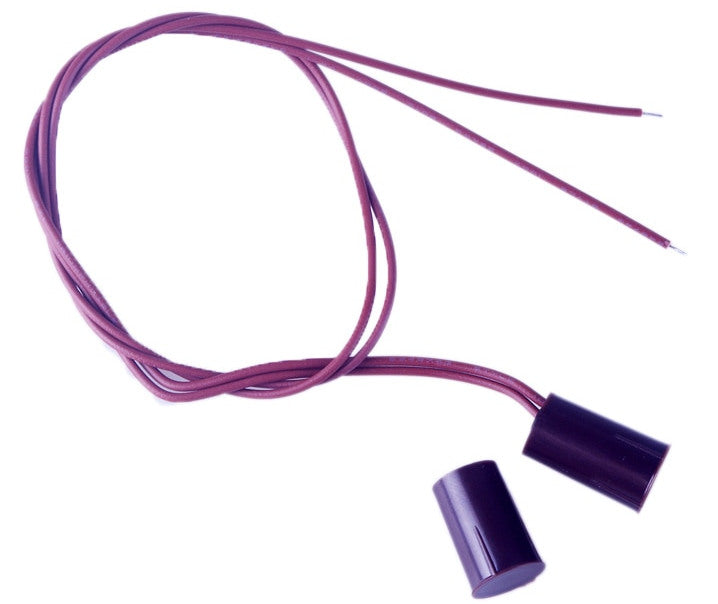

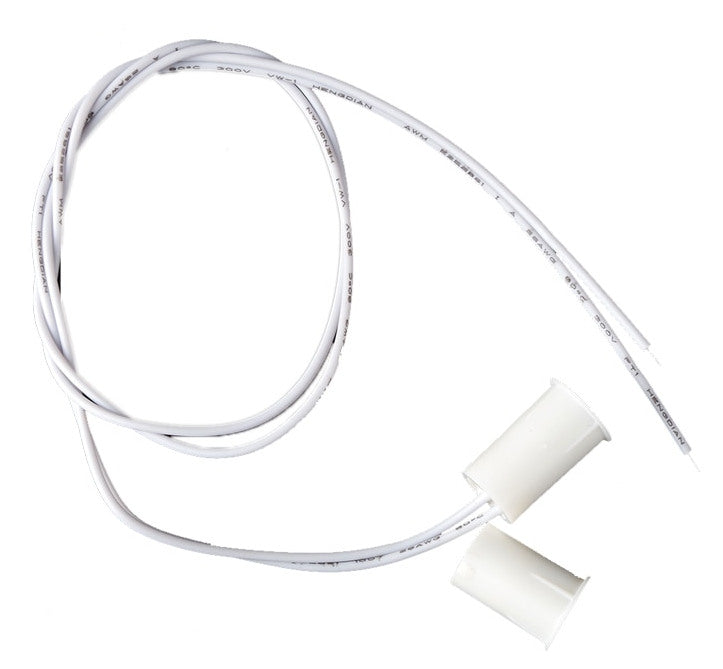

Now available from PMD Way are these door-mount flush reed switch and magnet sets.

Use the options menu to select color and sensor type - NO (normally open) or NC (normally closed).

Specifications:

• maximum voltage 100V DC
• maximum current 100mA
• operating distance between magnet and sensor: greater than 5mm, less than 15mm
• attached wiring is 340mm
• sensors and magnets measure 11mm diameter, 17mm length.

Don't forget to check out our full range of switches if this doesn't meet your needs. And as always, all orders receive free delivery.
