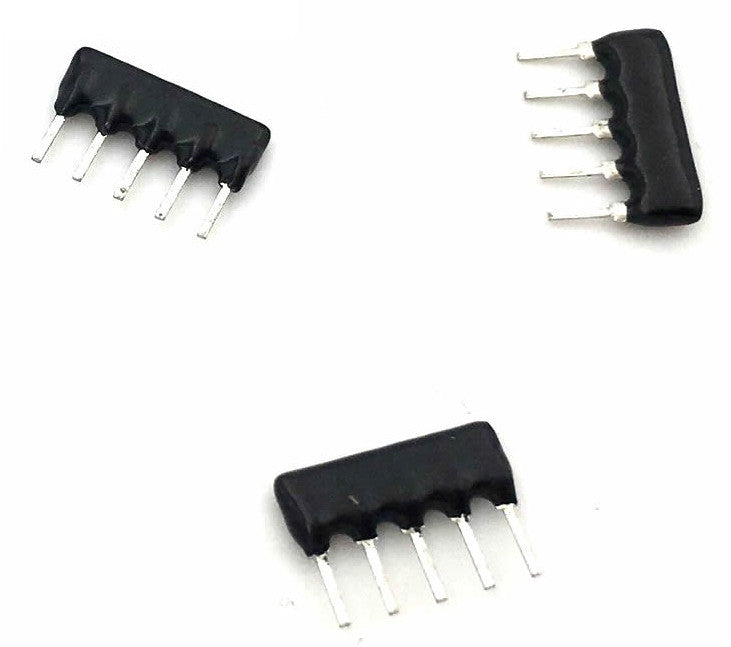

5 Pin Resistor Network Array - 50 Pack

$15.95
SKU 696:201215958

Now available from PMD Way are these 5 pin resistor array networks in packs of fifty. Select your required value from the resistance menu.

Specifications:

  • Power rating - 1/8W
  • Maximum voltage - 200V
  • Maximum overload voltage - 280V
  • Jumper rated current - 2A
  • Tolerance - 5%
  • Operating temperature - -55~125 degrees C

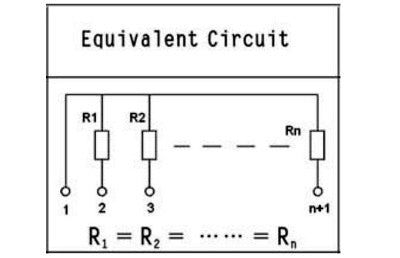

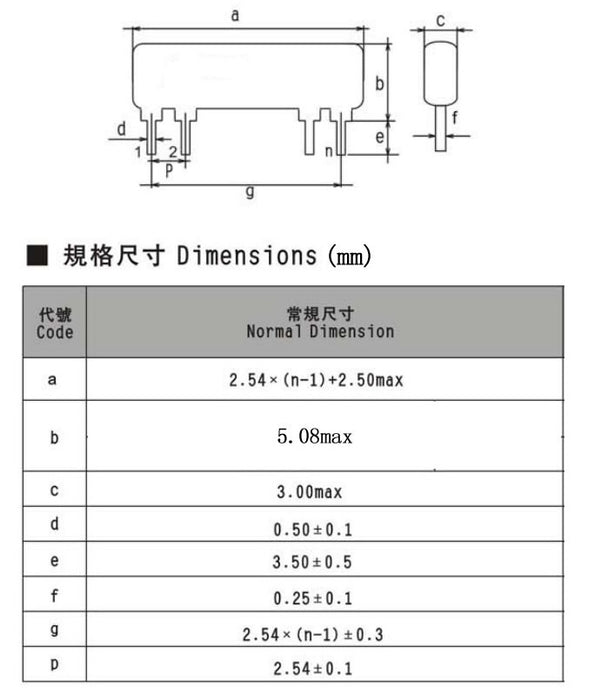

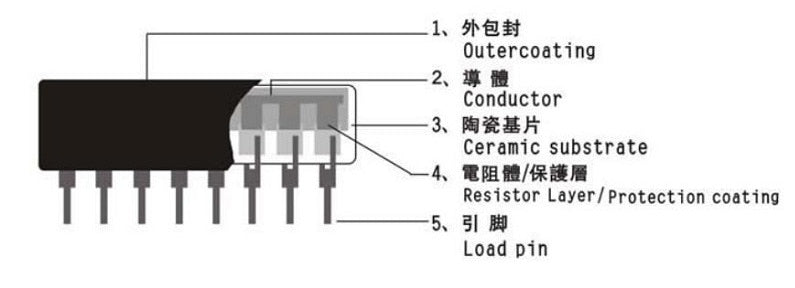

Drawings:

5 Pin Resistor Network Array - 50 Pack from PMD Way with free delivery worldwide

5 Pin Resistor Network Array - 50 Pack from PMD Way with free delivery worldwide

5 Pin Resistor Network Array - 50 Pack from PMD Way with free delivery worldwide
